TechLogix TL-SMP-HD
Share-Me Puck with HDMI Input

Description

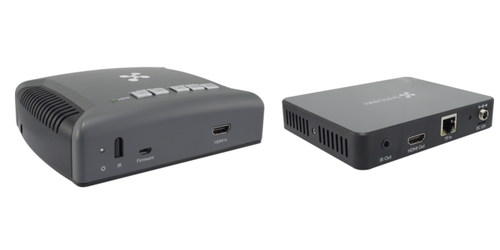

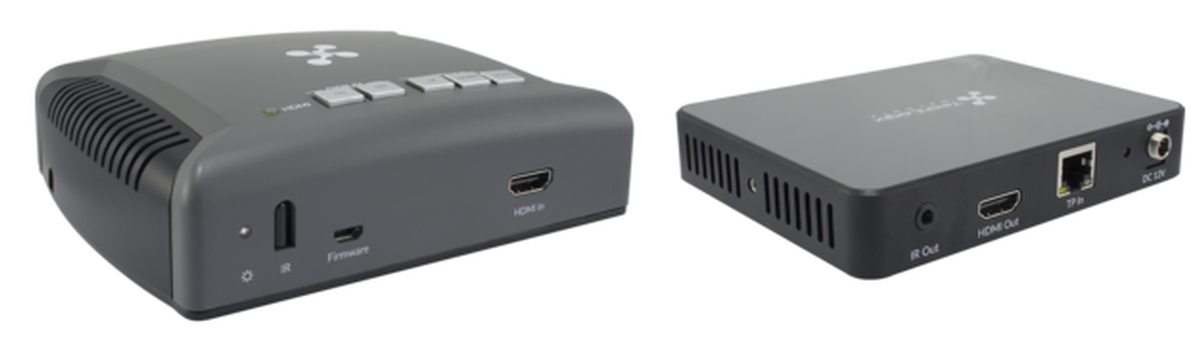

TechLogix introduces their Share-Me line of collaborative AV equipment. The TL-SMP-HD is a Share-Me puck with HDMI input. This product comes as a kit, the control system, including both the receiver and transmitter, twisted pair cable extender, and presentation switcher. The receiver and transmitter are both designed compactly to fit on a presentation work space.

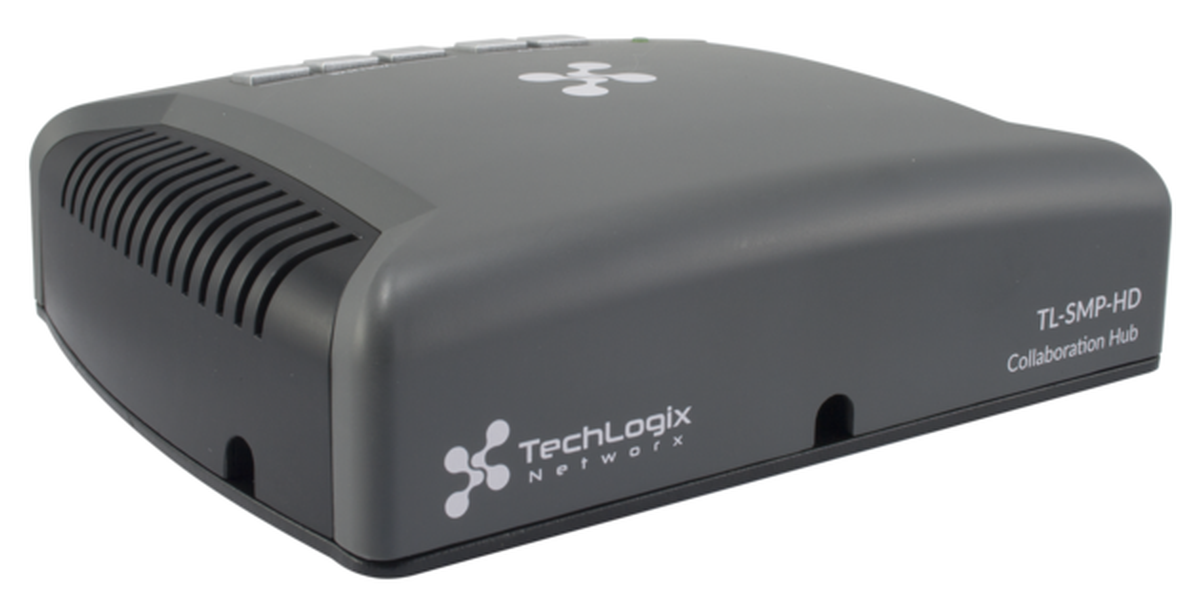

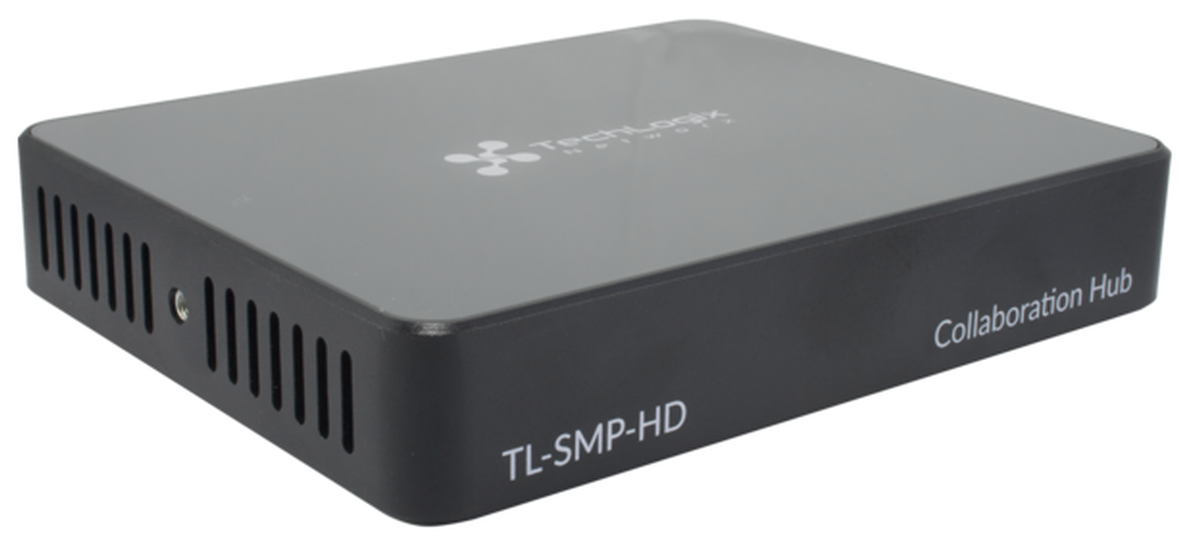

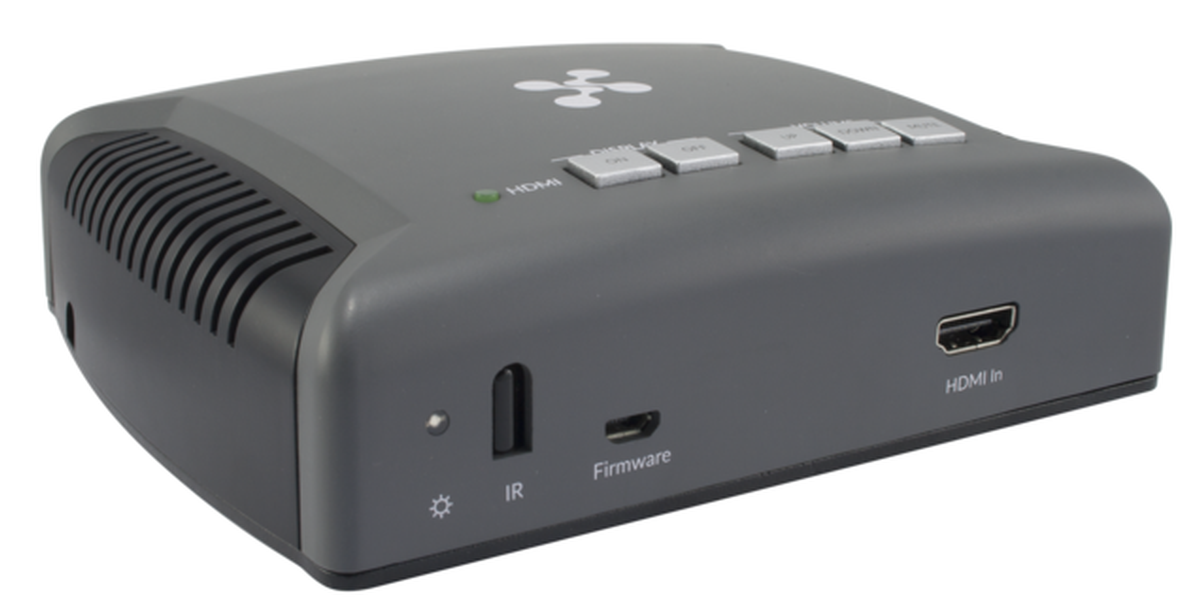

The receiver sits by the display or projector in your AV environment, and the transmitter sits in the collaboration space. The receiver is connected to power, and the receiver and transmitter are connected via twisted pair cable.

Other key features of this kit include the following:

• HDMI input
• HDMI output
• Twisted pair between transmitter and receiver
• Buttons for display control
• Built-in cable strain relief and security
• Built-in IR window for learning commands
• Selectable CEC and IR display control outputs
• Locking power supply
• 220 ft. max distance between the transmitter and receiver

Specifications

• Firmware: Micro USB Type B

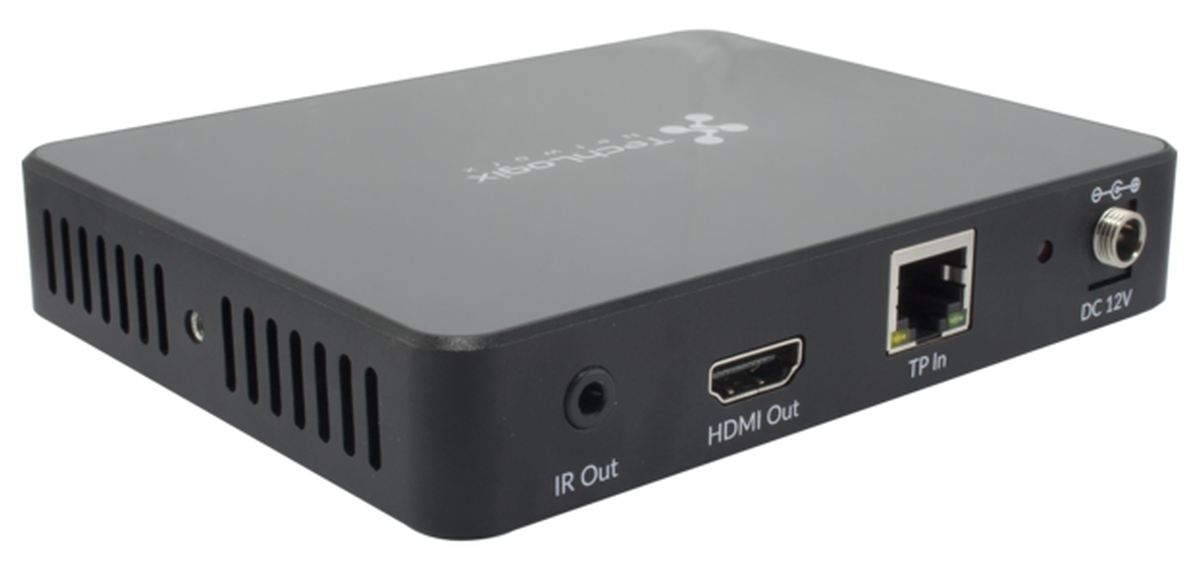

• Receiver Connections
• HDMI Out: HDMI Type A Receptacle
• TP In: 8P8C port (Shielded RJ45)
• IR Out: 3.5mm TS Jack
• DC 12V: 5.5 mm Outside Diameter, 2.6 mm Inside Diameter Barrel (Locking)
• Supported Video and Audio
• Maximum Video Compatibility: 70 m Deep Color 36/30/24 Bit at 1080p / 40m Deep Color 48 Bit at 1080p, 3D, and 4k x 2k (UHD) up to 30 Hz: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• up to 60Hz: YCbCr 4:2:0
• Video Compliance: HDMI, HDCP 1.4, and CEC (Consumer Electronics Control)
• Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
• Input DDC Signal: 5.0 volts p-p (TTL)
• Input Video Signal: 0.5 to 1.0 volts p-p
• IR Carrier Frequency Range: 33-55kHz at 5 volts
• Extender Signal Characteristics
• Maximum Distance: 70 m Deep Color 36/30/24 Bit at 1080p / 40 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k (UHD) up to 30 Hz: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• up to 60 Hz: YCbCr 4:2:0
• Cable Requirements: Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern
• Bandwidth: 10.2 Gbps
• Maximum Distance: 70 m (220 ft)
• Chassis and Environmental
• Enclosure: Top - Gray ABS, Bottom - Painted Steel
• Transmitter Dimensions (HxWxD): 42 mm x 150 mm x 120 mm (1.65 in x 5.91 in x 4.72 in)
• Receiver Dimensions (HxWxD): 23 mm x 130 mm x 102 mm (0.91 in x 5.12 in x 4.02 in)
• Shipping Weight: 1.72 kg (3.80 lbs)
• Operating Temperature: -10 to +40 C
• Operating Humidity: 10% ~ 90%
• Storage Temperature: -15 to +70 C
• Storage Humidity: 0%~55%
• Power, ESD, Regulatory
• Maximum Power Consumption: 4.4W(TX), 6.7W(RX)
• Power Supply: 12V DC
• ESD Protection: 15KV
• Regulatory: CE, FCC
• Standard Warranty: 1 Year
• Transmitter Diagnostic Indicators: Power LED, HDMI active LED
• Receiver Diagnostic Indicators: Power LED, Twisted Pair LEDs
• Included Items: Power supply with adapters (US, EU, UK, AU), mounting "L" brackets (2 ea), mounting screws (2 ea), IR Transmitter, Rubber feet (8 ea)
