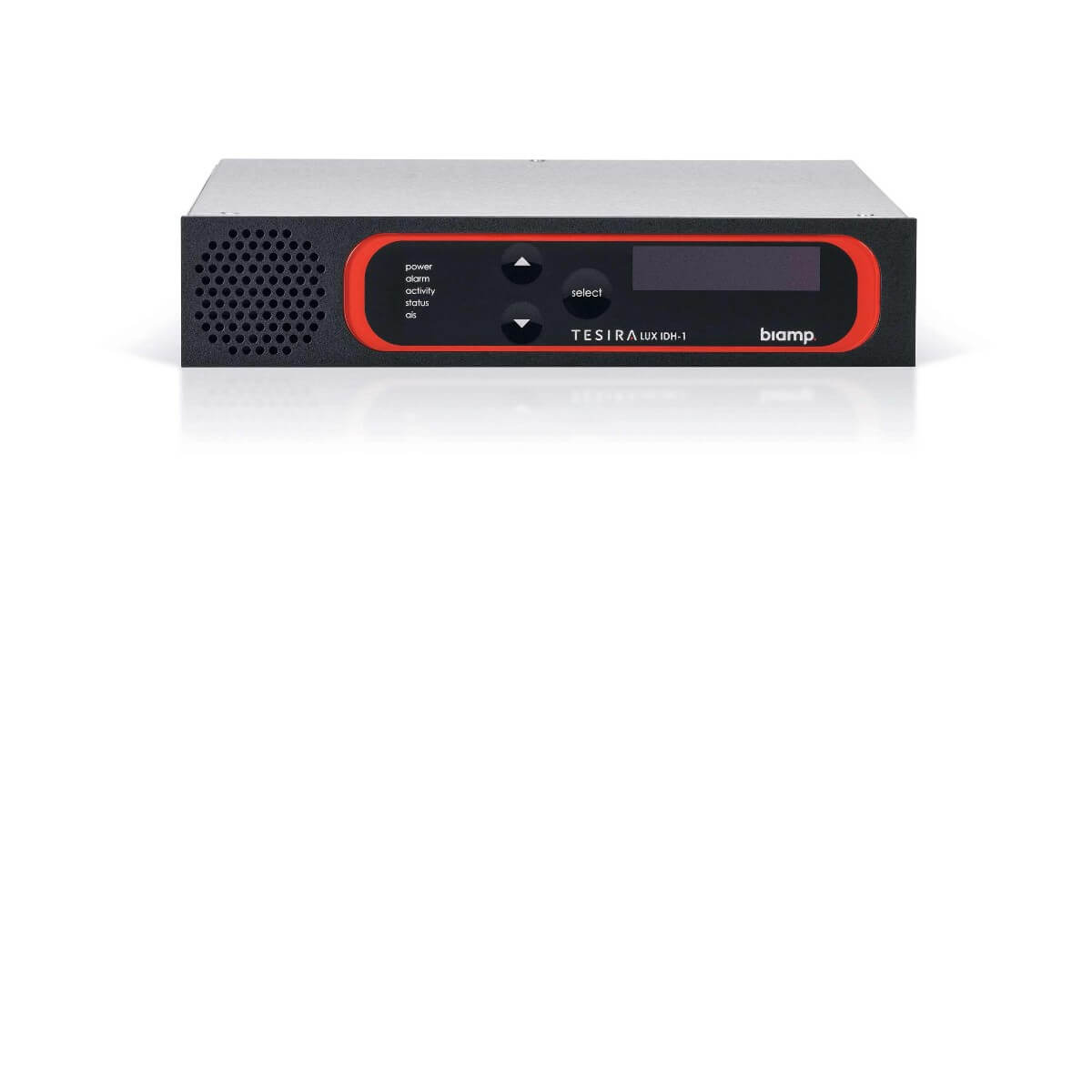

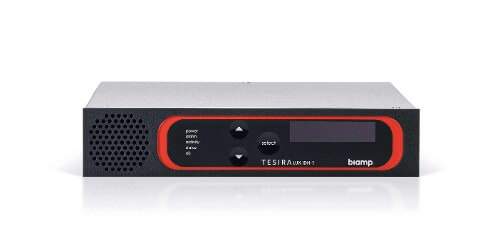

Tesira TesiraLUX IDH-1
AVB video encoder; includes one HDMI 2.0 port and one DisplayPort 1.2 port
- Accepts video signals up to and include 4K60 with 4:4:4 subsampling Dynamic Delay EQ for automatic lip sync management
- Flexible software configurable bandwidth controls
- Supports eight-channel PCM audio for embedding/de-embedding
- Includes one HDMI port and one Display Port 1.2. port
-Brandon K.
Description

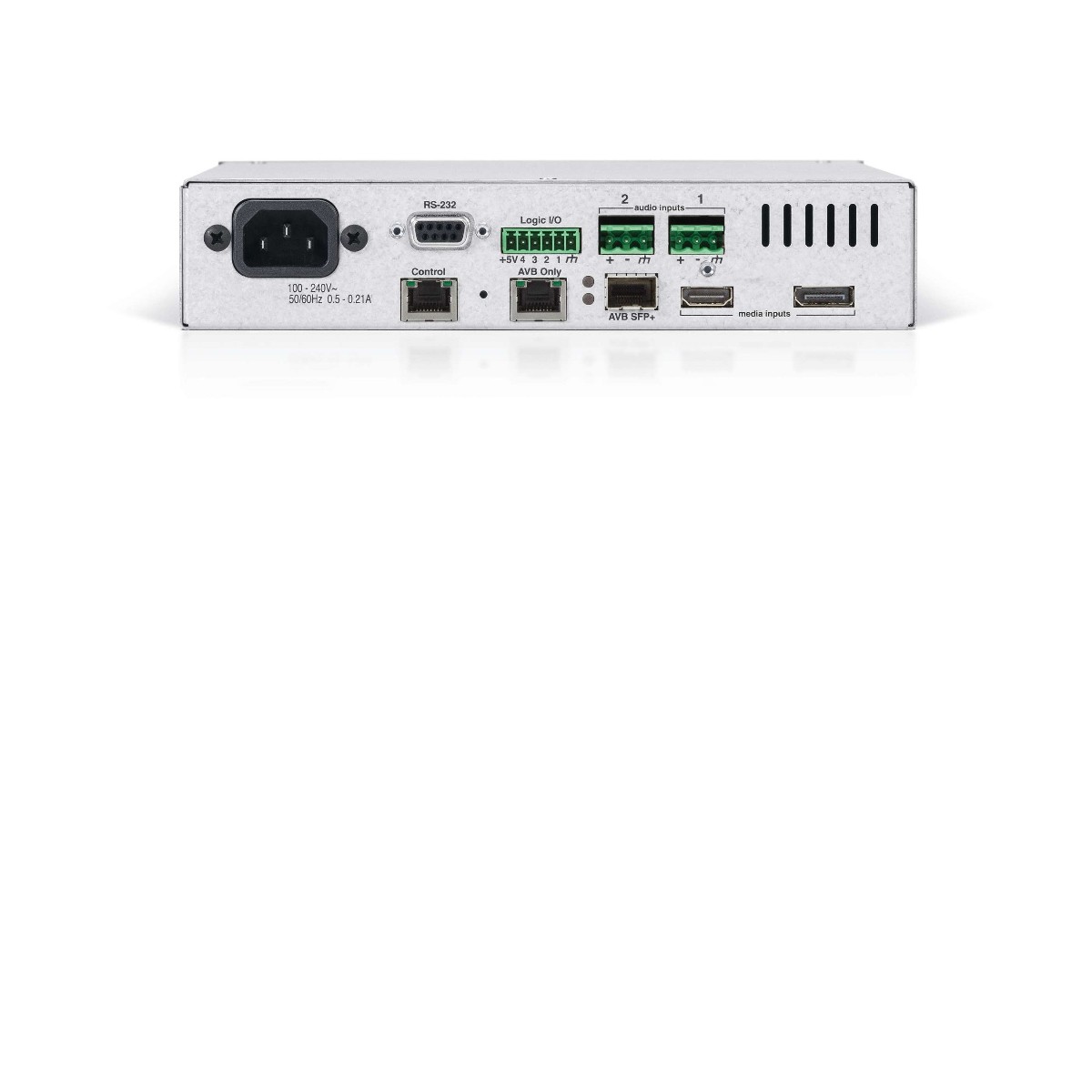

The TesiraLUX IDH-1 is an AVB/TSN enabled video encoder capable of transmitting video signals up to and including 4K60. The IDH-1 functions as a video server-class device in a Tesira media system and is configured through the Tesira configuration software. Acting as an AVB talker, the IDH-1 fully integrates digital audio and video on a single network, allowing for simplified lip sync management and end-to-end network transit latencies of less than 1.5 frames. Multiple software-based options are available for managing bandwidth, including setting maximum resolution, frame rate floor, and/or a rate of compression. The AVB/TSN streams can be transmitted over 1Gb or 10Gb ports while control signals are managed via a separate 1Gb Ethernet port. The IDH-1 accepts 8 channels of PCM audio for embedding/de-embedding, and includes 2 mic/line level analog inputs. The TesiraLUX IDH-1 can be used as a standalone device (paired with a TesiraLUX OH-1) or can be combined with other Tesira servers, expanders, endpoints, and controllers.
Specifications
- Half-rack chassis
- Optional mounting accessories available
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
