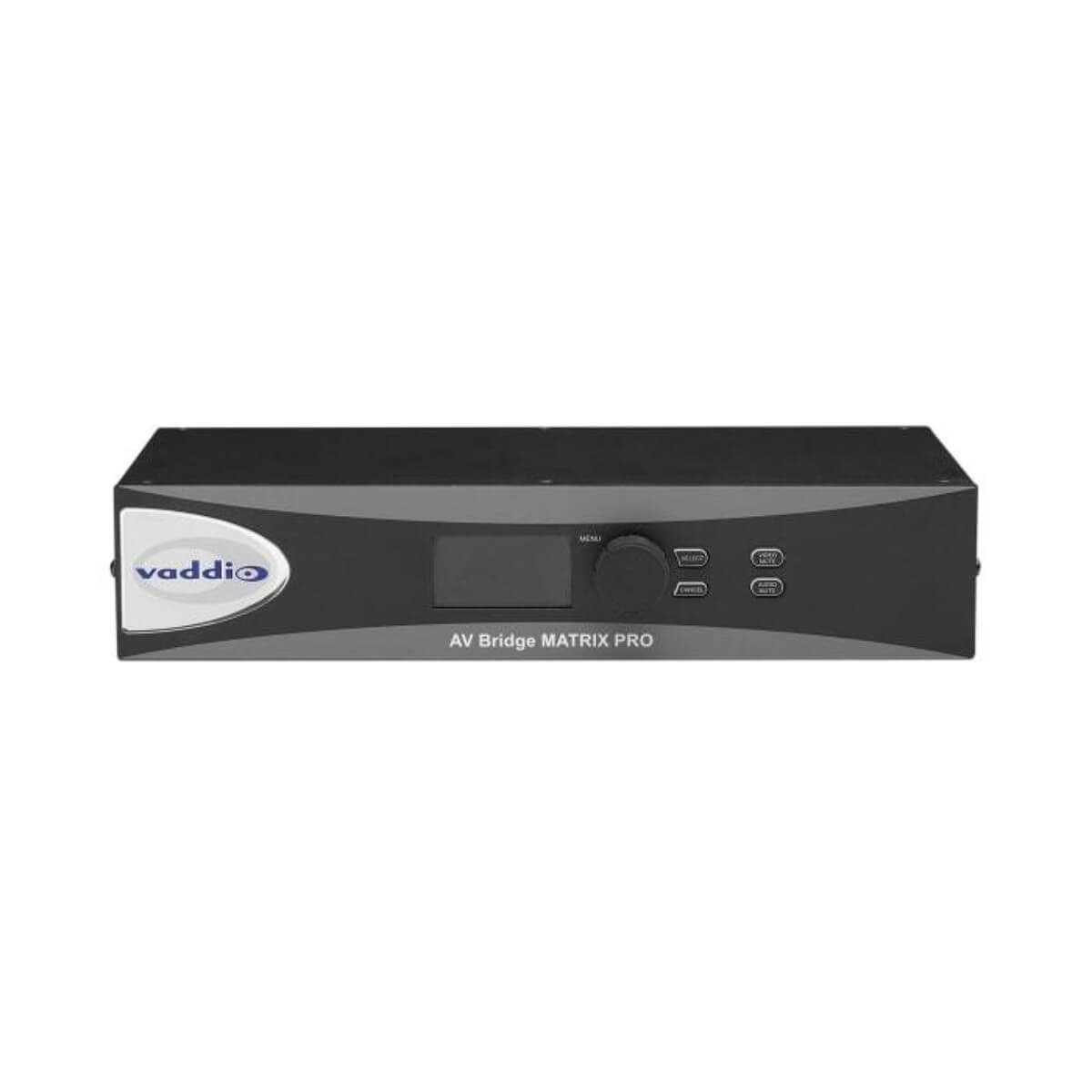

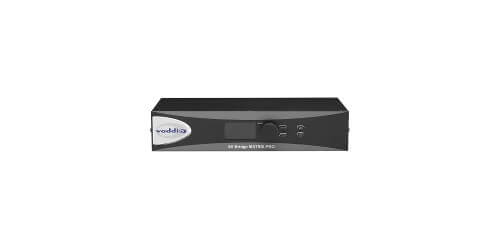

Vaddio AV Bridge MATRIX PRO
A/V Room Solution for USB/IP Applications

Description

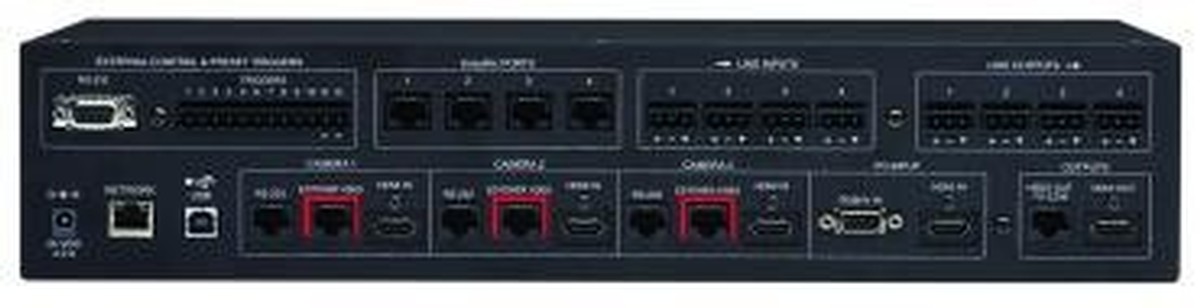

The Vaddio AV Bridge MATRIX PRO combines the functionality of the AV Bridge encoder with IP and USB 2.0 (UVC & UAC) streaming, a four input seamless HD video presentation switcher, three (3) Quick-Connect™ Interfaces for Vaddio cameras with EZCamera™ Cat-5 connectivity, an 8 x 4 cross-point audio matrix with integrated AEC, four (4) EasyMic™ Ports for Vaddio ceiling or table mics with built-in echo cancellation and a web server for configuration programming, control and remote management. The AV Bridge MATRIX PRO replaces a rack full of gear.

Ideal for conferencing and lecture capture applications, AV Bridge MATRIX PRO combines audio and video mixing functionality into a single device, allowing you to add multiple cameras, microphones and other AV devices into a traditional AV room design.

The MATRIX PRO was designed for integrators in order to reduce the complexity of AV system design and implementation, while delivering the features and capabilities most sought after by today’s sophisticated end user.

MATRIX PRO fits into many applications, which include UC and video conferencing, audio conferencing, lecture capture, local AV presentations and more. It’s perfect for small, medium, and even large venues such as classrooms, boardrooms, auditoriums, lecture halls, and houses of worship or anywhere that high quality audio, video, network, steaming and control is mission critical. This 2-RU system-in-a-box pairs with the EasyUSB™ MicPODs, Ceiling MicPODs and interfaces with ZoomSHOT™, WideSHOT™, and Vaddio HD PTZ cameras.

Improved Features:

• Larger resolution, better image quality – 1080p/30 (streaming) and 1080p/60 (HDMI)
• Easy and intuitive browser-based user interface
• Web-based camera control via USB joystick
• Simplified camera switching capabilities
• IP control of up to four Vaddio cameras

This Package Includes:

• AV Bridge MATRIX PRO
• Quick-Start Guide
• 24V 3.75A power supply with AC cord set(s)
• 2 qty rack ears
• 8 qty 3-position phoenix-style connectors
• 1 qty 12-position phoenix-style connector
• 6' (1.83m) USB 2.0 cable, type A to B

Specifications

• Control Method: Joystick, Web UI
• Power Type: Local Power
• Color: Black
• Certifications: CE Approved, FCC Approved, TAA Compliant
• Warranty: 2 Years Supports high definition encoding of audio and video sources
• Seamlessly integrates with Vaddio's HD cameras, presentation systems, video mixing consoles, and other pro audio products with AEC
• 2-way analog audio ins and outs
• Minimizes interoperability problems by implementation of standards based UVC (Universal Video Class) and UAC (Universal Audio Class) drivers
• IP streams are standard based MPEG4 allowing playback of content on market leading players like Quick-Time, RealPlayer, or VLC Media Player
• Warranty: 2 years

Downloads

• Vaddio AV Bridge MATRIX PRO Data Sheet (PDF)
• Vaddio AV Bridge MATRIX PRO Manual (PDF)
