Vaddio ConferenceSHOT AV-W
PTZ 10x, HD 1080p Conference Camera USB 3.0, White

Description

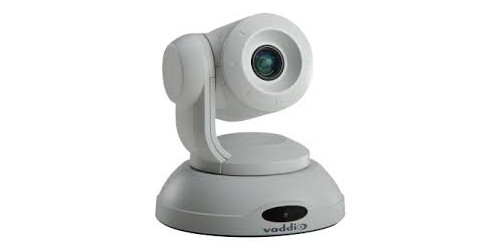

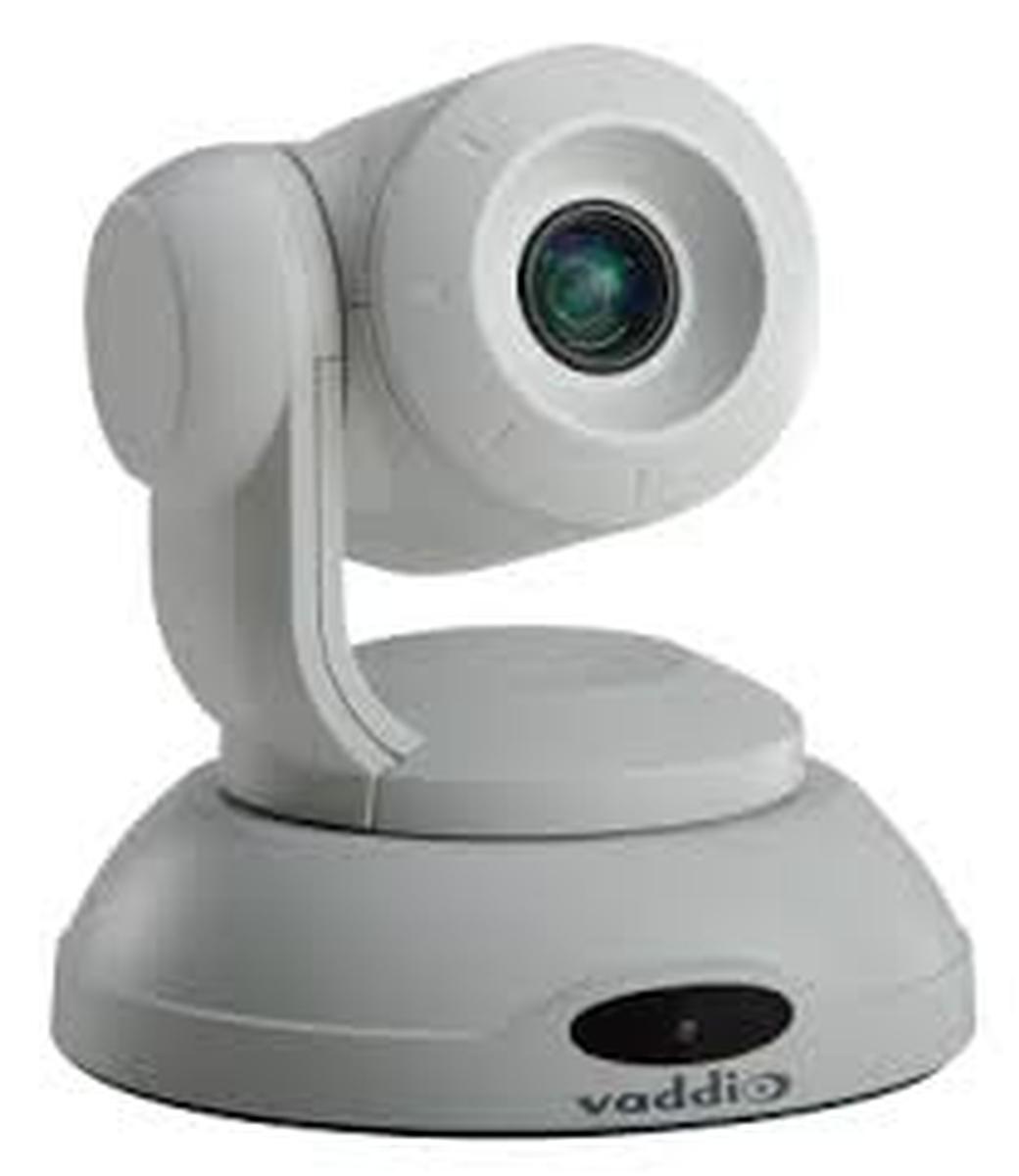

The Vaddio ConferenceSHOT AV is a White PTZ 10x zoom, HD 1080p Camera. This Vaddio camera has been designed as an ideal solution for huddle rooms and medium sized conference rooms, allowing businesses and users to bring a whole new level of pristine image quality and powerful audio. The comes with audio inputs and outputs that let you connect a speaker and up to two Vaddio microphones. Being USB 3.0 based the ConferenceSHOT AV will support any collaboration application enabling UC soft clients, such as Skype for Business, WebEx, Google and more, to become a group collaboration application. With UVC compliance allows for true plug and play operation as no drivers are required to be installed on you PC. Bringing HD 1080p resolutions, users will experience high-definition amazing quality images, with exceptional color reproduction and extremely fine detail. With a 74-degree wide horizontal field of view, 10x optical zoom with 11x zoom in super-wide mode makes this an great device for use in corporate, healthcare, government, and education type applications.

The ConferenceSHOT AV incorporates Vaddio's Remote Management System, which provides remote monitoring management and control of a distributed camera network. It is IP-accessible through H.264 streaming and a built-in Web server that enables bother browser and IP-live preview and setup from PC's, Mac's and mobile devices including iPhone, iPad and Android devices. The ConferenceSHOT AV turns your BYOD device into a small space UC system with professional PTZ camera quality and full room audio performance.

 Primary Features of the Vaddio ConferenceSHOT AV:

Connectivity

• USB 3.0 with UVC, UAC and HID support for plug and play connectivity
• 10/100/1000 Ethernet supporting PoE+ (mid-span injector included)

Camera

• HD Video up to 1080p/60 2.14 Megapixel image sensor
• Fast and smooth Pan/Tilt at 90 sec, 10x optical zoom and 74° fi eld of view

Audio

• Line output (diff erential), including power for optional ConferenceSHOT Speaker or other external speaker systems
• EasyMIC ports for up to two Vaddio MicPODs (ceiling or table, or one of each)

Enterprise Support

• Integrated web server for remote management, monitoring and updates
• Simultaneous video streaming via IP and USB
• Telnet with REST API for room integration

Specifications

• IP (H.264) RTSP Video Resolutions: 1080p down to 180p, 1080p at 30/25/15
• USB 3.0 Video Resolutions: 1080p down to 180p at 60/30/15
• Pixels: 2.14 million
• Lens and Horizontal FOV: 10X optical zoom, 67.0-degrees wide to 7.6-degrees tele / Super-wide: 11X optical zoom, 74- degrees wide to 7.6-degrees tele

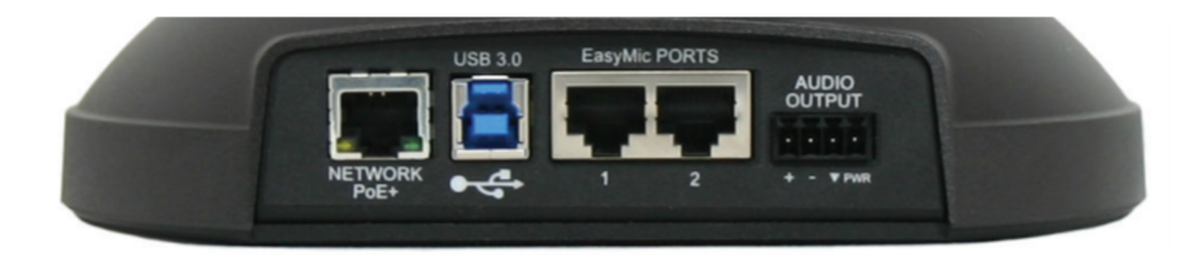

• I/O Ports: PoE+ 10/100/1000 Ethernet port, USB 3.0 media device connector, EasyMIC ports for two Vaddio EasyMIC microphones(not included), Line level audio output
• Simultaneous uncompressed USB 3.0 and IP (H.264) video + full-duplex audio streaming
• Backlight Compensation: On or Off
• Focusing System: Auto or Manual
• Remote Management: Web Interface, Telnet
• Min. Working Distance: 10mm (Wide) / 3' (Tele)
• Pan Angle: +-165 degrees
• Tilt Angle: +90 degrees -30 degrees
• White Balance: Auto, Manual, One-Push
• Gain: Auto or Manual
• S/N Ratio: over 50dB
• Power: PoE+ (25watts)
• Included Items: ConferenceSHOT AV camera, Vaddio IR Remote Commander, PoE+ power injector with AC cord set(s), 10' Ethernet cable, 6' USB 3.0 cable, 6' HDMI cable, Molex connector
• Warranty: 2 Years

Downloads

• Vaddio ConferenceSHOT AV-W Specifications (PDF)
• Vaddio ConferenceSHOT AV-W Manual (PDF)
• Vaddio ConferenceSHOT AV Quick Start Guide (PDF)
