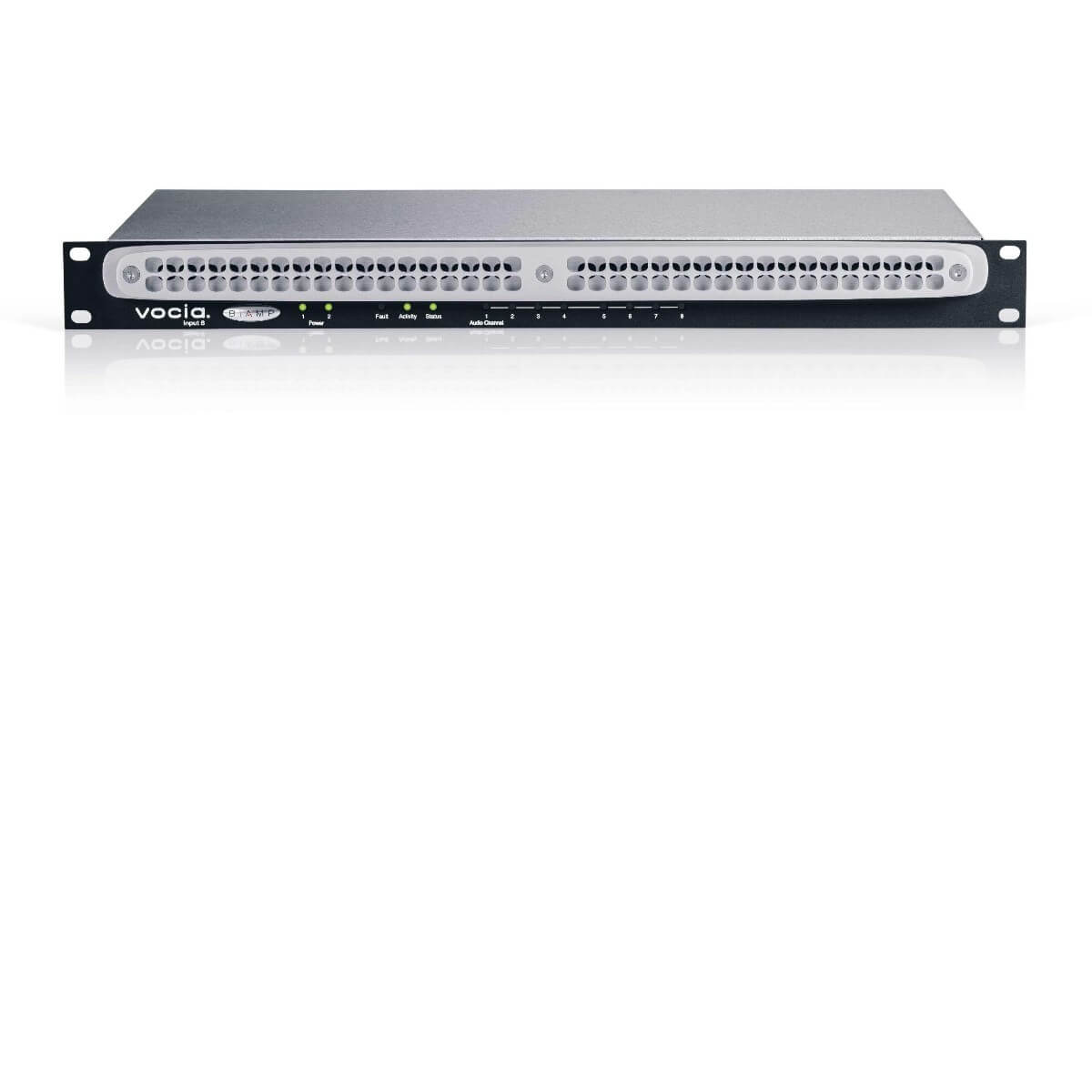

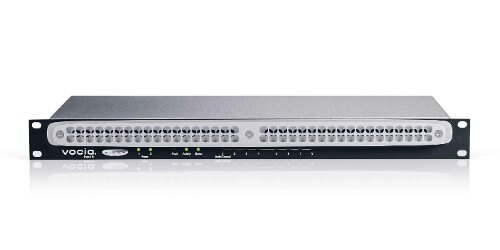

Vocia VI-8
Vocia Vocia input device with 8 analog mic/line inputs, allows live audio paging within the Vocia platform
Manufacturer SKU: 911.0384.900
Satisfaction Guaranteed!
Our Price:
$3,742.00
Top VI-8 Specifications
- Eight analog microphone/line level or CobraNet inputs
- One logic and four relay control outputs
- Eight logic inputs
- Device status monitoring via control logic input and output
"Custom Equipment w/ quick turnaround. CERTIFIED FRESH!"
Contact a product specialist!
Proudly supporting our customers since 2008
Description

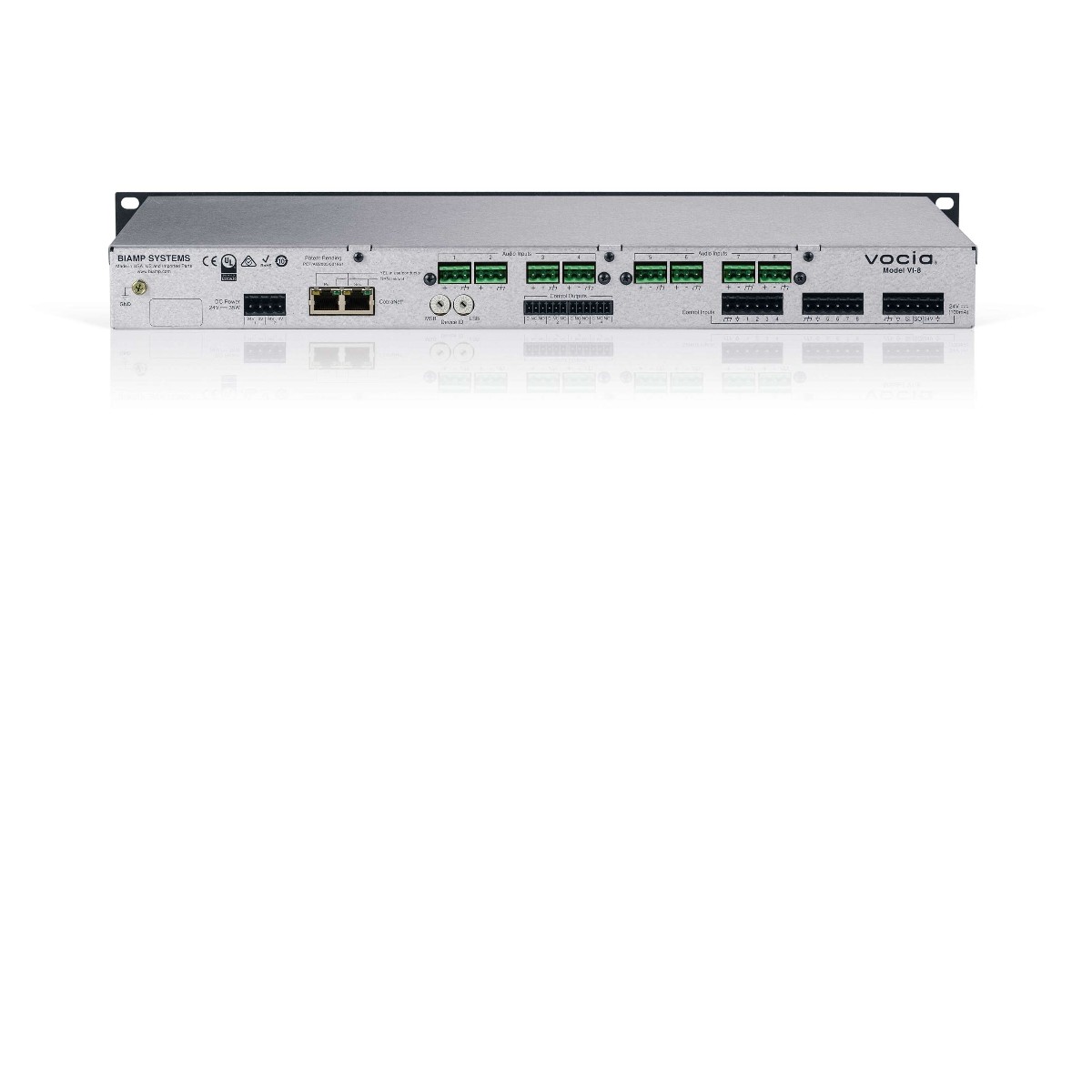

The Vocia Input 8 (VI-8) is designed to facilitate live audio paging from user sources to emergency and non-emergency zones in a Vocia system. The VI-8 will allow direct paging access from eight sources via analog mic/line level inputs or CobraNet digital audio connections. Nine logic inputs can be assigned to various Vocia control events including paging control. A logic output and four relay outputs can be assigned to control events. The logic output may be used to report status from one or several daisy-chained VI-8s to an external system. The logic inputs and output are monitored.
Specifications
- Power via dual 24 volt DC inputs (redundant inputs) power supply included
- Software-configurable signal processing including volume control, filters, and compressor/limiting
- Rack mountable (1RU)
- Dual CobraNet ports for redundant Ethernet connections
- Device and logic I/O status monitoring
- Rotary switches for device identification
- IP30 compliant
- CE marked and RoHS compliant
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
