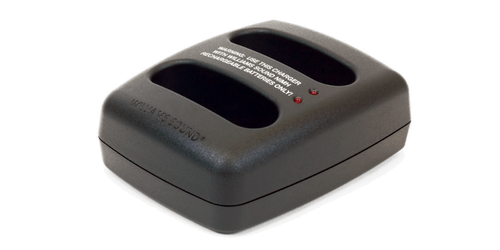

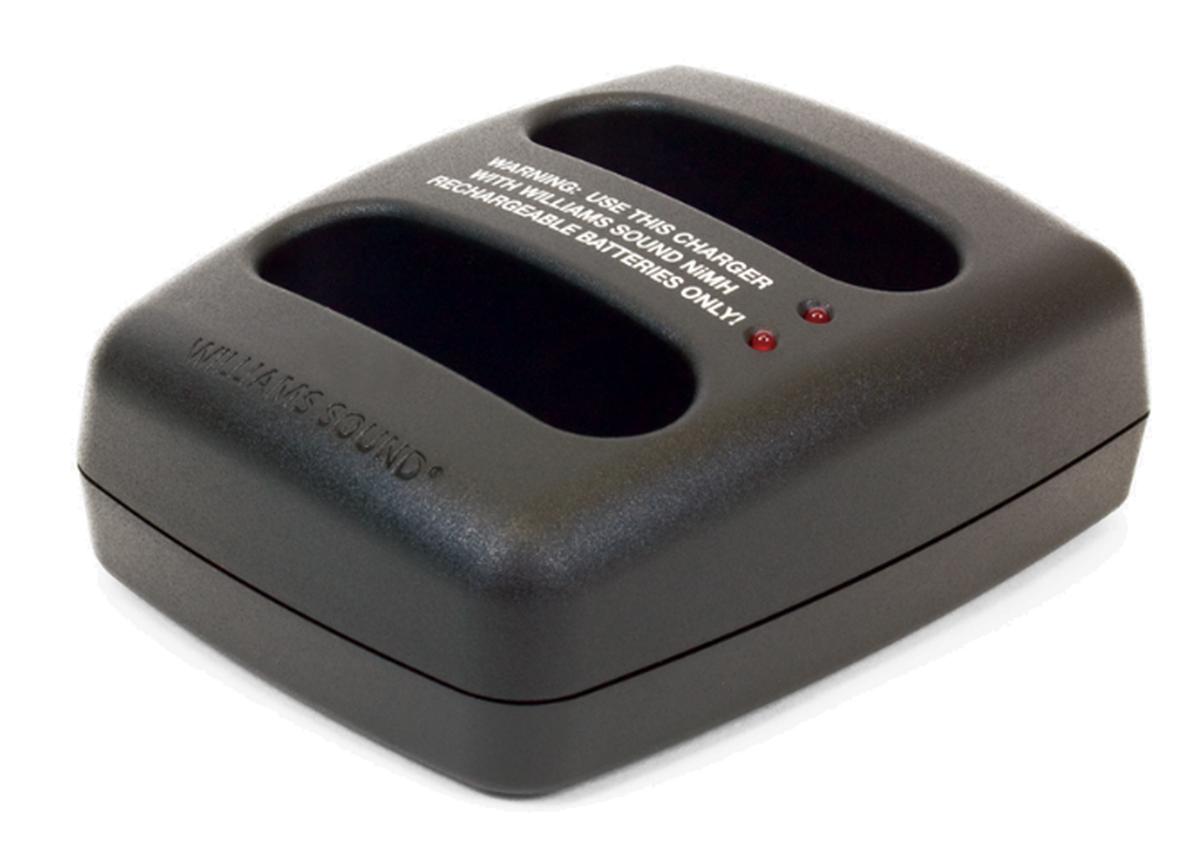

Williams Sound CHG 3502
2-Bay Body Pack Charger
Part #: CHG 3502
Satisfaction Guaranteed!
Our Price:
$93.00
Top CHG 3502 Specifications
- Specifications
- Dimensions: 4-7/8" x 3-7/8" x 2"
- Shipping Weight: 1.1 lbs
- Enclosure: Black, ABS plastic
"Quick and easy to find what I was looking for."
-Brandon K.
-Brandon K.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
Williams Sound presents the CHG 3502: a 2-bay, drop-in style charging unit including power supply. This charger is fitted for body-pack style transmitters and receivers. Compatible product styles include the following:
- PLR BP1 Loop Receiver
- PPA R37 FM Receiver
- PPA R37-8 FM Receiver
- PPA R38 FM Receiver
- PPA T46 FM Transmitter
- WIR RX22-4 Infrared Receiver
Specifications
- Charger Power: Input: 6 VDC, 300mA, Center Positive
- Output: 100mA per bay
- Power Supply: Williams Sound TFP 041 (US) or TFP 030 (International)
- Input: 100-240 VAC, 50-60Hz, 0.5-0.3 A
- Output: 6 VDC, 1.5 A
- Charging Time: 16 hours nominal *
- Unit Capacity: 2 Units
- Indicators: 2 Red LEDs - one for each bay. LEDs are lit when charging
- Warranty: 90 days
- Approvals: CE, FCC, RoHS
