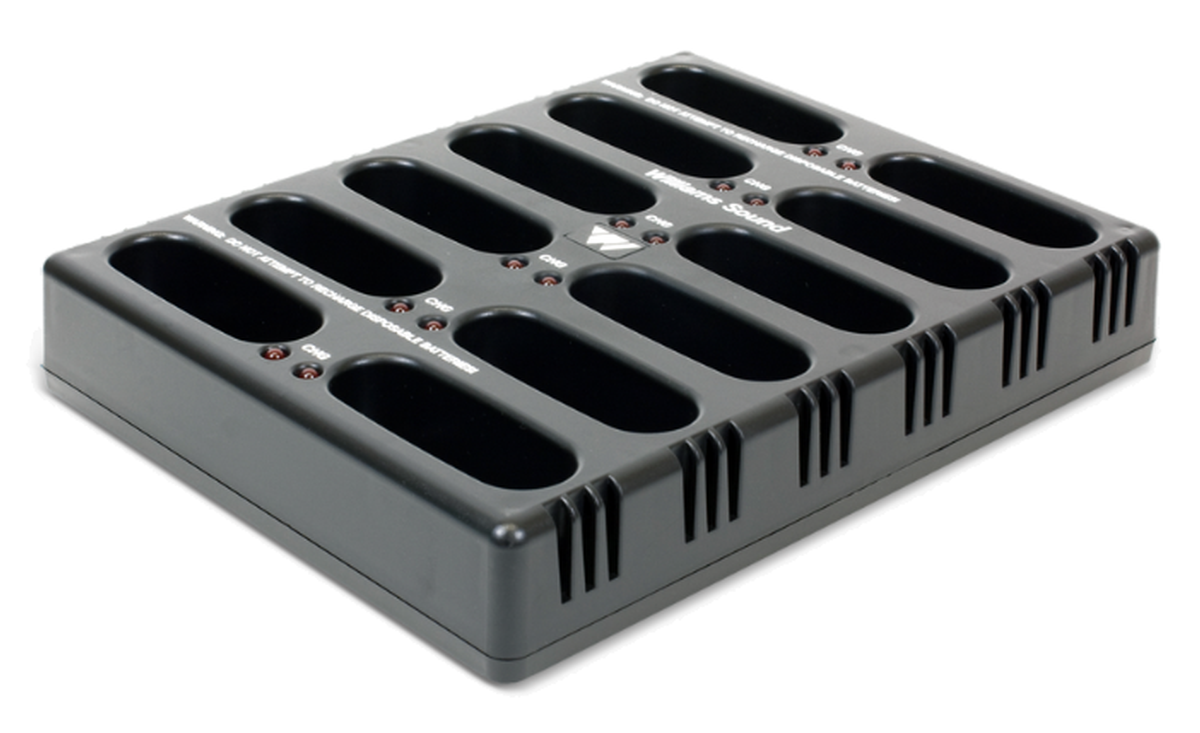

Williams Sound CHG 3512
12-Bay Body Pack Charger

Description

Williams Sound provides the innovative CHG 3215: a 12-bay charging station for body-pack style transmitters and receivers. This device comes with a power supply (TFP 037) and associated power cord (WLC 004).

The CHG 3512 is compatible with the following Williams Sound models:

• PLR BP1 Loop Receiver
• PPA R37 FM Receiver
• PPA R38 FM Receiver
• PPA T46 FM Transmitter
• WIR RX22-4 Infrared Receiver

Specifications

• In the optional carry case, the charger shall weigh 10 lbs. (4.53 kg).
• The charger shall be a timed charger at 16 hours, and will provide a maintain charge once the timer has completed its charging cycle.
• Each bay on the charger shall have a red LED indicating charging status.
• The LEDs shall be on constantly during charging and will blink indicating when batteries are fully charged.
• The charger CHG 3512 shall be powered by an external switching power supply (90-240 VAC input
• 5 VDC, 4A output) via a CD barrel connector.
• The charger shall have CE approval, and be compliant with RoHS and WEEE regulations.
• The charger shall be the Williams Sound model CHG 3512.
• Specifications
• Size: 9.5" x 7.4" x 1.7"
• Weight: 1.2 lbs excluding power supply
• Color: Black ABS
• Power Supply Input: 90 - 240 VAC input
• Power Supply: TFP 037 Switching AC adapter, 5 VDC - 4A output
• Charging Rate: 16 Hour Charge: 140 mA
• Pulse/Maintain: 140 mA
• Charging Time: 16 hours nominal
• Unit Capacity: 12 Units
• Indicators: Individual Charging Indicators: Red LEDs. LEDs blink when batteries are charged
• Warranty: 1 year (cables and power supply warrantied for 90 days) Approvals: CE, WEEE, RoHS
