Williams Sound DW SY2
Digi Wave Intercom Bridge with DLT 300
- Connection: (4-wire): via XLR 4 pin male socket
- Connection: (2-wire intercom ring) via XLR 3 pin male and female(loop-through)
- Controls: To Adjust: Mic/Line switches and 10 turn potentiometer to adjust external system input and output levels
- Dimensions:: 55 93 110mm Weight: 420g
-Maciej Z.
Description
The Williams Sound AV DW SY2 Digi-Wave Intercom Bridge is ideal for use in event production where full-duplex communication is desired between non-mobile and mobile crew members in the same venue. This wireless add-on bundle offers the seamless expansion of an existing Clear-Com® 2-wire intercom base system to include wireless, full-duplex Digi-Wave DLT 300 transceivers from Williams AV. It supports up to six simultaneous open microphones and an unlimited number of Digi·Wave devices in a given area. Range is up to 750 feet (228 meters).
DLT 300: This Digi-Wave transceiver features full-duplex capability for more natural conversations. Provides secure, crystal-clear audio. Slim, lightweight, and simple to set up and use. One- or two-way operation offers flexibility in an array of applications. With the push of a button, users can access two-way communication for immediate interaction or Q&A.

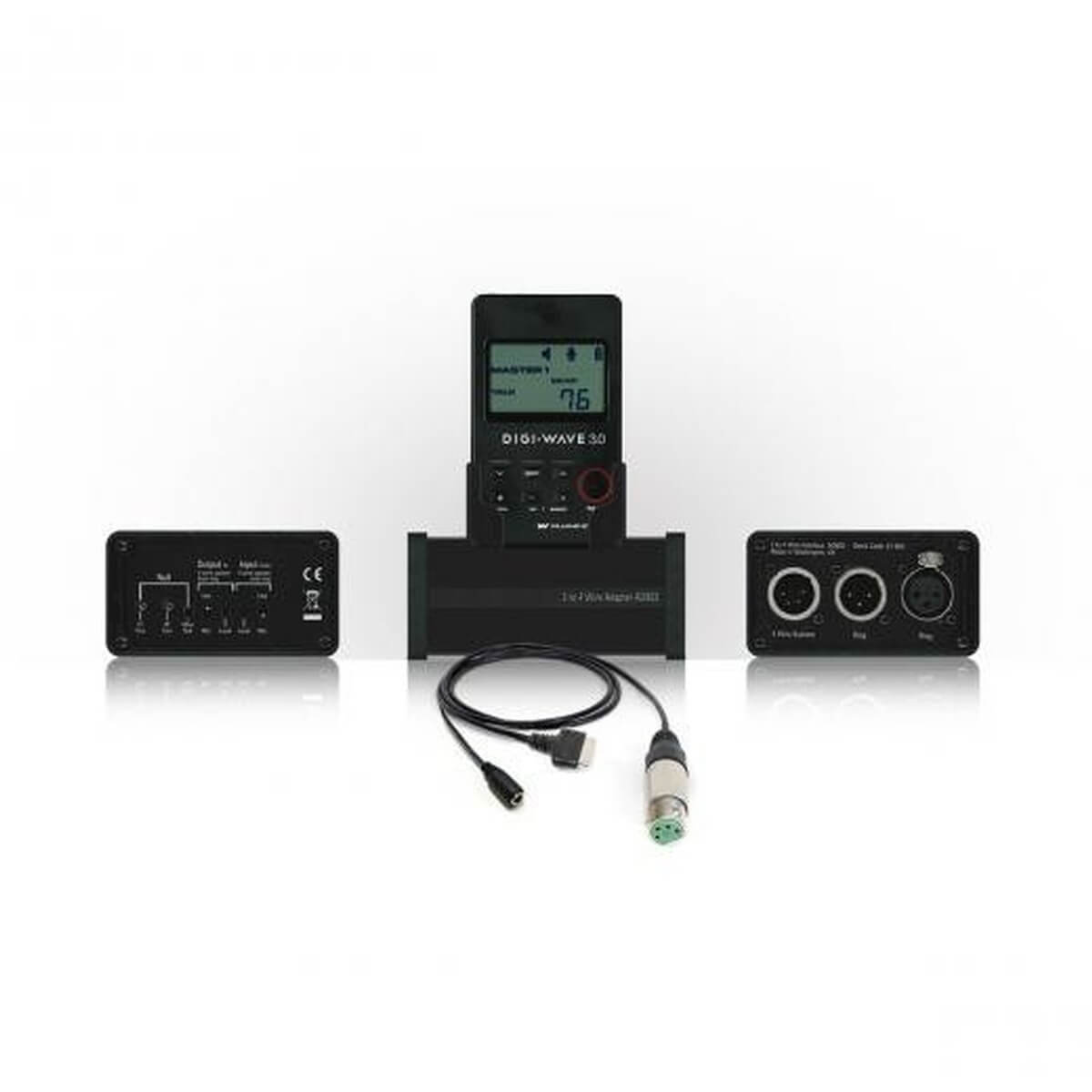

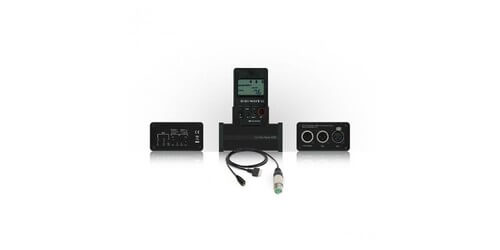

This system includes:
(1) ADP 903 2 to 4 Wire Adapter
(1) BKT 032 Digi-Wave Transceiver Cradle
(1) DLT 300 Digi-Wave Transceiver
(1) TFP 058 Power Supply
(1) WCA 127 Interface Cable
(1) PLT 005 Tuning Screw Driver
Specifications
- Construction:: Black, anodized, extruded case with glass-filled nylon bezels for protection
