Williams Sound
FM ADA KIT 37 RCH
FM ADA Compliance Kit - Rechargeable

Description

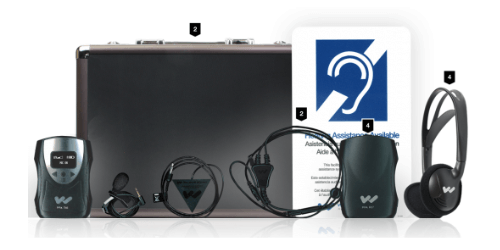

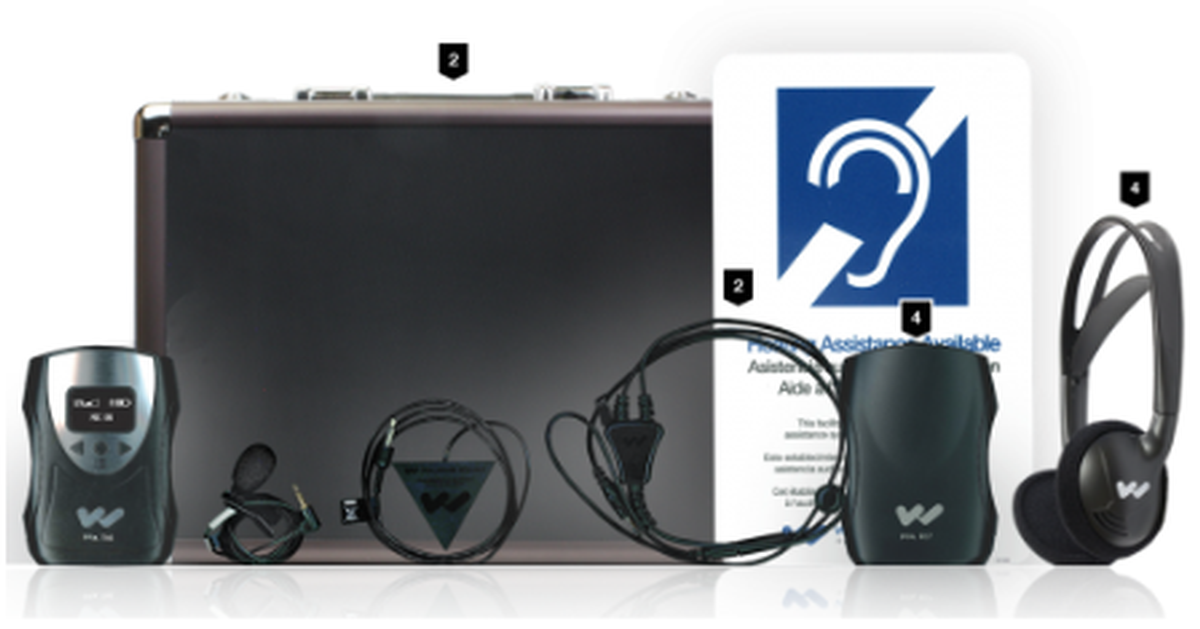

The Williams Sound FM ADA KIT 37 RCH is a unique assistive listening solution for those with hearing impairments. Perfect for large venues such as theaters, places of worship, auditoriums, and other large public areas, this system guarantees that all listeners, specifically those with hearing disabilities, can enjoy lucid and dependable audio.

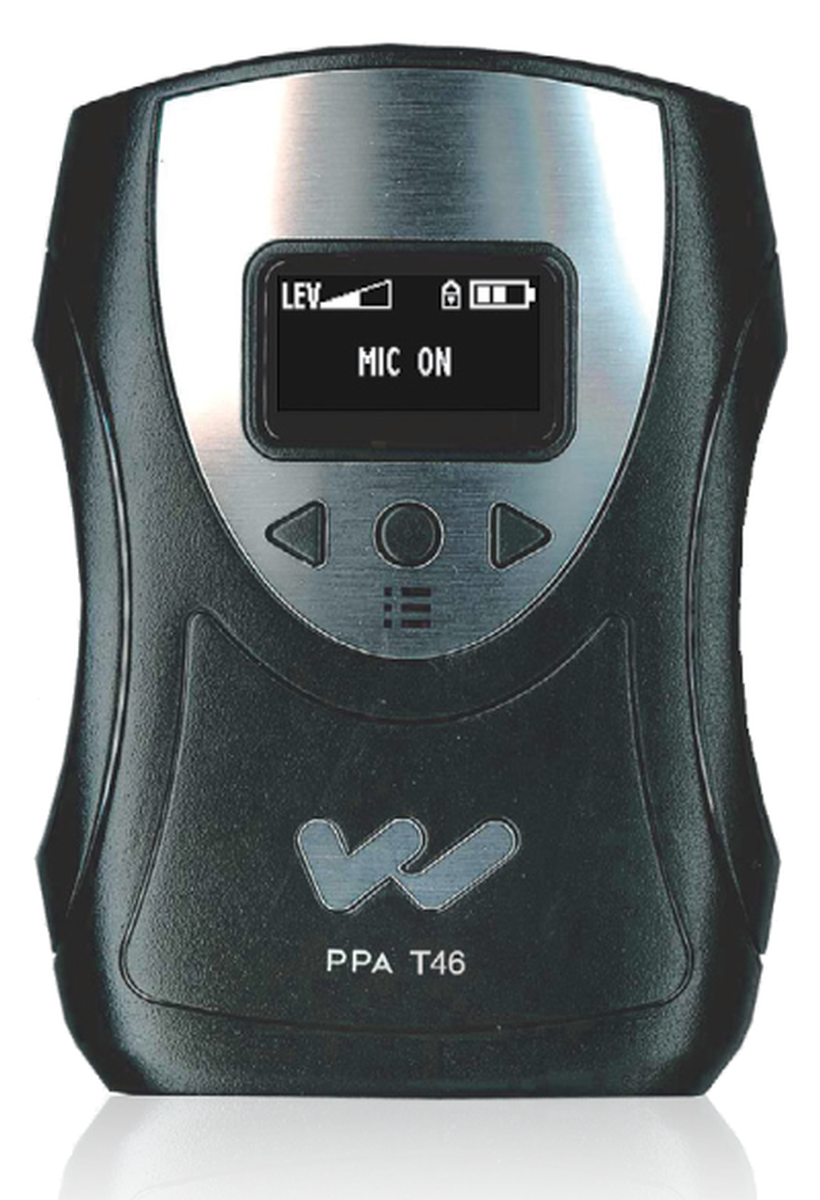

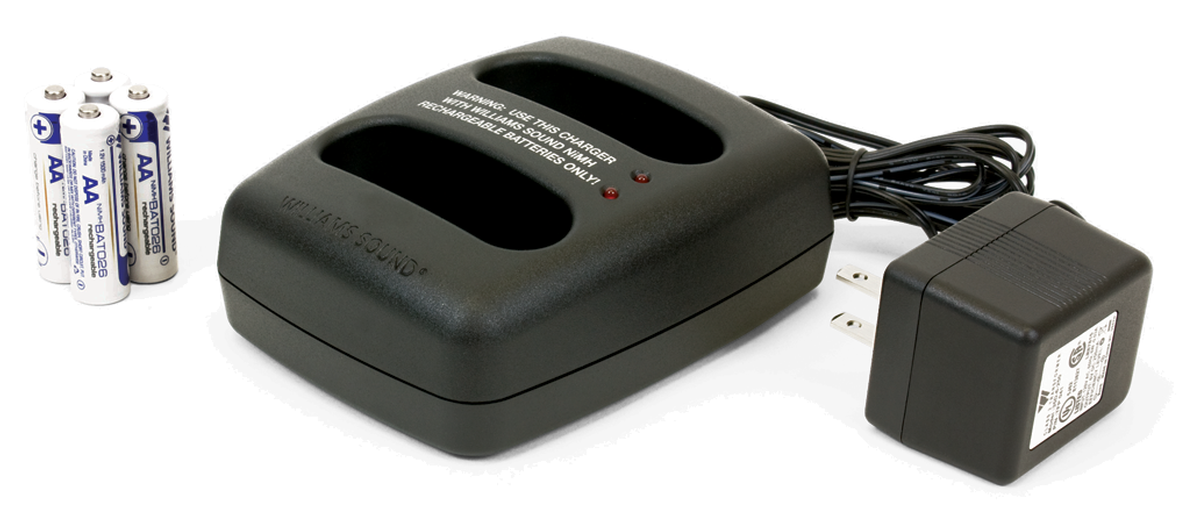

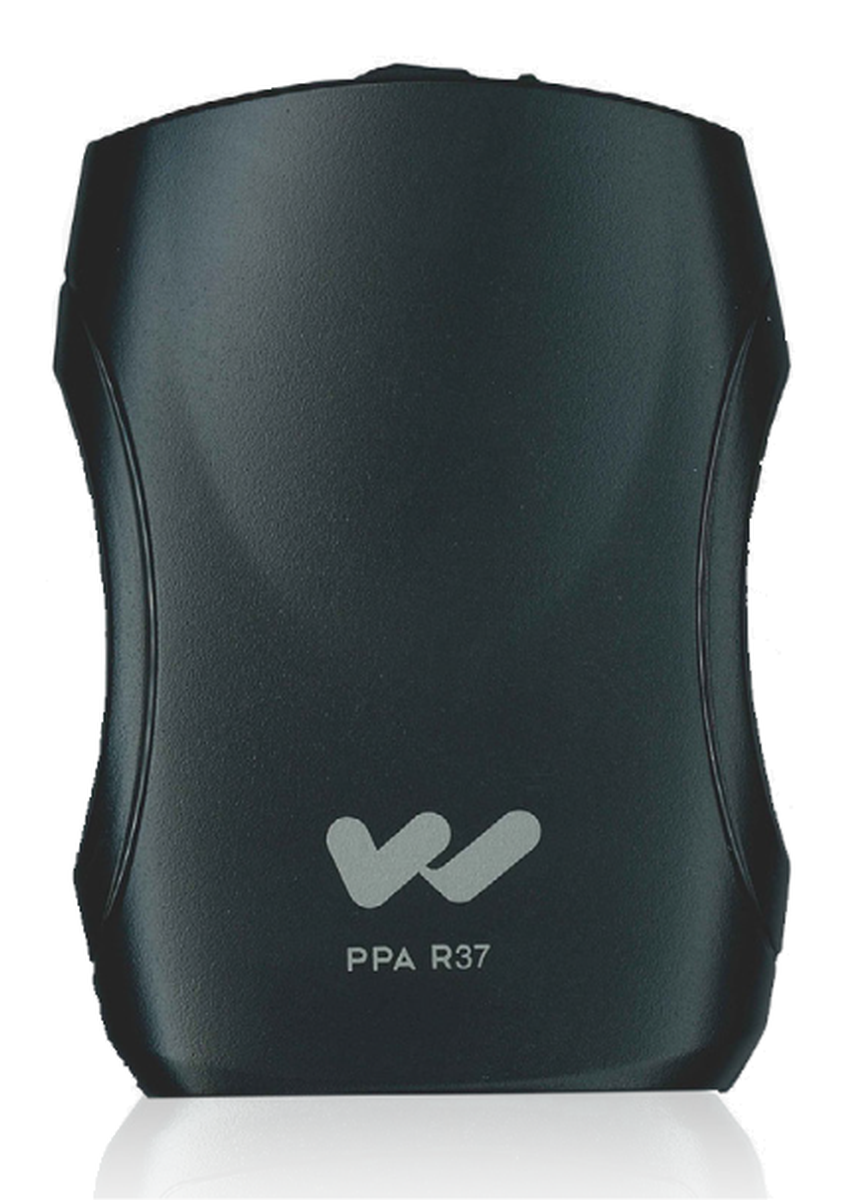

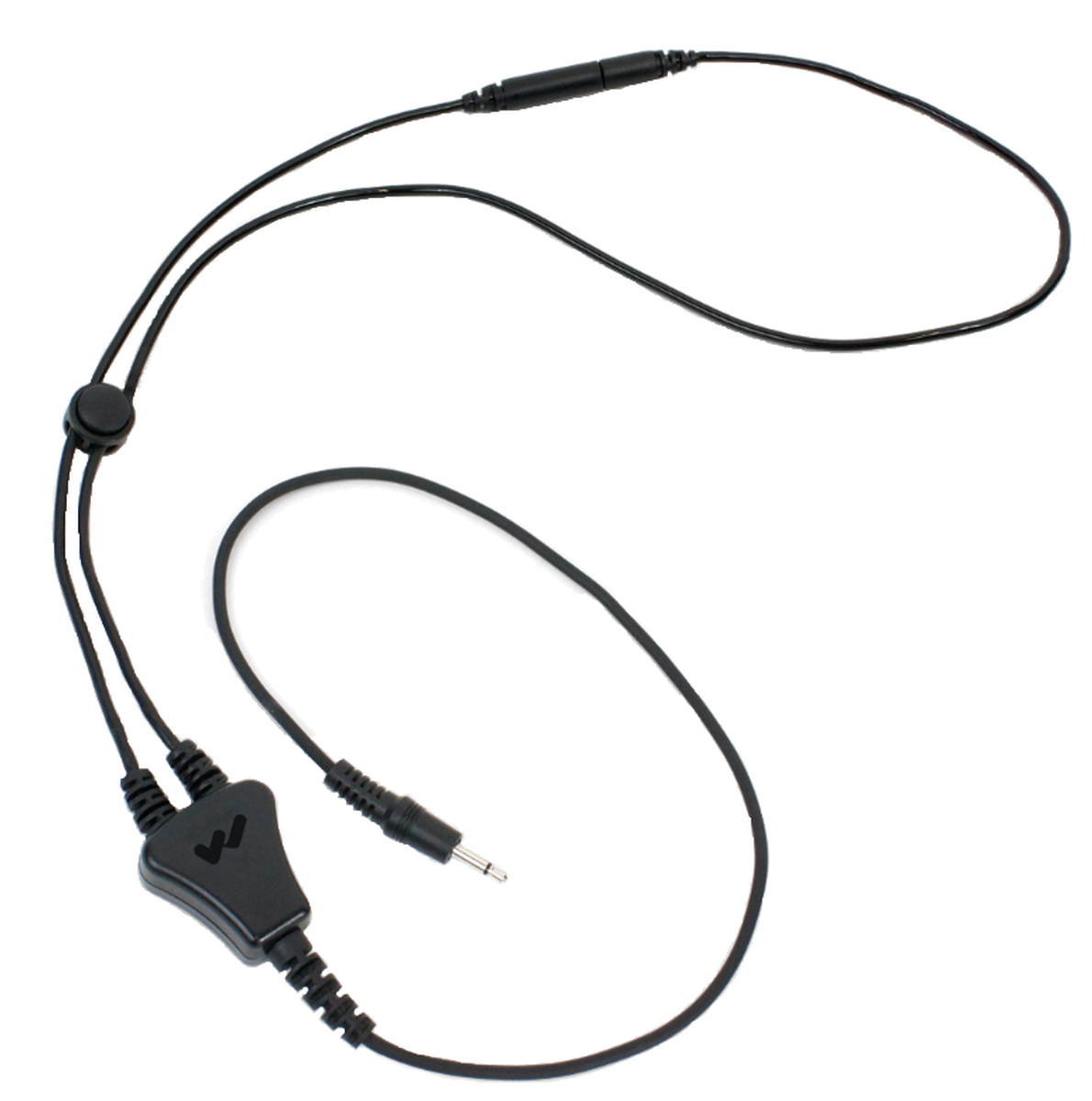

At the center of this kit is the PPA T46. This equipment is crucial for hearing for business meetings, classrooms, and participants in a tour group. The kit also comes equipped with a PPA R37 receiver, equipment that can wirelessly broadcast audio up to 1000 feet to all listening audiences. Additionally, the package comes with NKL 001 neck loops, which transmit audio signals from a sound source to people wearing hearing aids. The kit includes BAT KT6, which can be used to charge PPA R37 and PPA T46. It is a 3-volt dual charger kit with two (2) AA Bat 026-2 batteries.

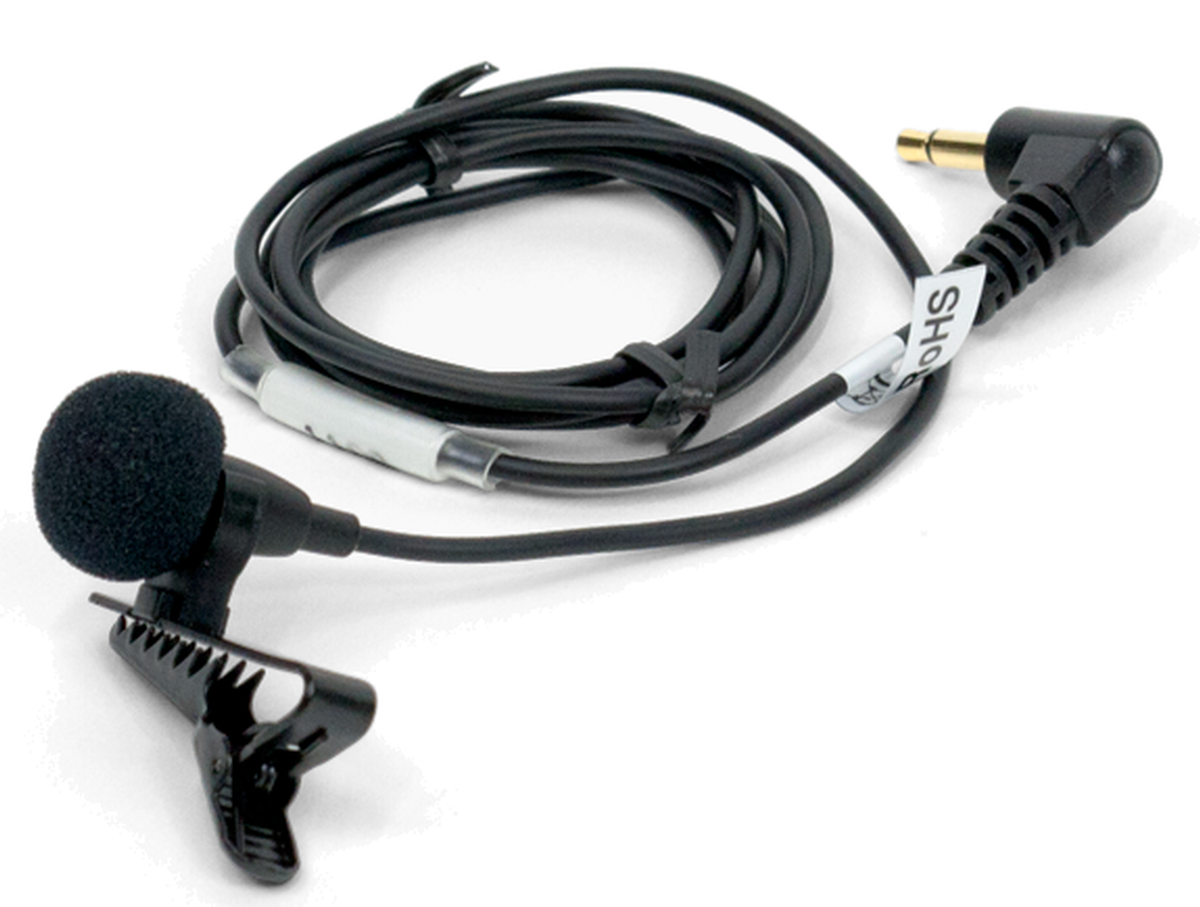

Furthermore, the Williams Sound FM ADA KIT 37 comes equipped with a MIC 090 lapel omnidirectional condenser microphone Mini Lapel Clip Microphone. This microphone will equally pick up sound from every direction. These microphones further allow the user, speaker, or performer to move around easily without being held back by a bulky microphone.

The Williams Sound FM ADA KIT audio assistive listening system is engineered to be efficient and straightforward. It is an excellent option for all venues due to its unique functionalities and high-quality equipment. It is easy to install and operate, even for users with no prior technical experience. By operating this system, you can ensure that all your attendees or listeners can hear every word with unparalleled clarity, making your sessions or events more engaging and easily accessible.

Specifications

• Charger Power: Input: 6 VDC, 300mA, Center Positive
• Output: 100mA per bay
• Power Supply: Williams Sound TFP 041 (US) or TFP 030 (International)
• Input: 100-240 VAC, 50-60Hz, 0.5-0.3 A
• Output: 6 VDC, 1.5 A
• Charging Time: 16 hours nominal *
• Unit Capacity: 2 Units
• Indicators: 2 Red LEDs - one for each bay. LEDs are lit when charging.
• Warranty: 90 days
• Approvals: CE, FCC, RoHS
• HED 027 Specifications
• Style: Heavy-duty, folding, mono headphones
• Plug: 3.5mm mono
• Cord: 39"
• Driver Size: 40 mm
• Nominal Impedance: 16
• Freq. Response: 20 - 20kHz
• Weight: 102g
• Max Power Input: 100 mW
• Sensitivity: 96 dB @ 1kHz
• Replacement Pads: EAR 035 (one pair)
• IDP 008 Specifications
• Dimensions: 10-3/8" (L) x 6- " (W) x 1/8" (H)
• MIC 049 Specifications
• Phantom Power: 1.2 - 10 VDC
• Impedance: 1.5 k
• Operating Voltage: 1.2 - 10 VDC
• Freq. Response: 100 Hz - 8 kHz
• Signal-to-Noise Ratio: >60 dB
• Pick-Up Pattern: Omni-directional
• Element: Electret-condenser
• Sensitivity: -38 dB 3 dB
• Approvals: RoHS
• Color: Black
• Weight: 0.08 lbs
• Plug: 3.5 mm mono
• Cord Length: 36"
• Approvals: RoHS
• Warranty: 90 days
• MIC 090 Specifications
• Element: Electret-Condenser
• Pick-Up Pattern: Omni-directional
• Phantom Powered: No
• Impedance: 1.5 k
• Frequency Response: 20 Hz 18 kHz
• Dynamic Range: 79 dB
• Sensitivity: -56 3 dB
• Signal-to-Noise Ratio: 63 dB
• Plug: 3.5 mm, right-angle
• Cord Length: 39"
• Color: Black
• Weight: 0.05 lbs
• Replacement Windscreen: WND 006
• Replacement Clip: CLP 090
• Approvals: RoHS
• Warranty: 90 days
• PPA R37 Specifications
• Dimensions: 4.1" x 2.85" x 1.38"
• Weight: 4.6oz (130g) with batteries
• Color: Black
• Battery Type: (2) AA Alkaline or 2 x AA NiMH
• Battery Life: Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs / (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
• Current Consumption: 52mA nominal
• Temperature Range: 0 to 50C
• Channels 17: Accessed via seek button in battery compartment
• Operating Frequency: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
• Intermediate Frequency: 75 kHz
• FM Deviation: 75 kHz
• De-Emphasis: 75 S
• LED Indicator: Power Green, Low Battery Flashes Green
• AFC Range: 120 kHz
• Sensitivity: 2 V at 12 dB Sinad with squelch defeated
• Input Overload: 100 mV
• Frequency Response: 200 15 kHz
• Modulation: FM, +/- 75 kHz peak deviation
• Signal-to-Noise Ratio: 65 dB min @ 100 uV
• Receive Antenna: Integral with earphone/headphone cord
• Audio Output: 35 mW max, peak into 16 ohms
• Output Connector: 3.5 mm stereo/mono phone jack
• Earphone: Earbud-type with foam cushion, 3.5 mm plug, 32
• Auto Shut-off: Enters sleep mode after approx 6 mins of no RF signal
• Approvals: FCC, Industry Canada, RoHS, WEEE
• Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories
• PPA T46 Specifications
• Dimensions: 4.1" L x 2.8" W x 1.1" D
• Weight: 2.6 oz (74 g), no batteries
• Color: Black/Silver
• Enclosure Material: Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum face plate
• Battery Type options: (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life / (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14 16 hours, uses CHG 3502 or CHG 3512 Charger
• Operating Frequencies: Selectable, 17 channels, 72.1 75.9 MHz*. Switchable 8 or 17 Channel Mode. (8-channel mode setting corresponds with PPA R35-8 receiver channels)
• Stability: .005%, frequency synthesized, crystal reference, PLL
• Modulation: Wide-band FM, 75 kHz peak, 75 S pre-emphasis
• RF Output: 80 mV/m at 3 m (max. allowed by FCC rules)
• Frequency Response: 180 Hz to 13 kHz, 3 dB at 1% max. THD
• Signal-to-Noise Ratio: 65 dB (typical) transmitted
• Transmit Antenna: Integral with microphone cord
• Microphone: Electret type, 3.5 mm mono plug
• External Display: OLED for status and menu information
• Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode
• Menu: Ch/Freq display mode select, Volume, Aux Input, Compression, 17 or 8-channel mode, screen time out, screen brightness, restore default settings
• External Controls: Momentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off. "Up", "Down" and "Menu" buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) located behind the battery compartment door
• External Indicators: Power LED - Green, flashes when battery is low
• Mic Input: 3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range
• Aux Input: 2.5 mm stereo jack, adjustable gain with 60 dB range
• Audio Compression: 1:1 (off) or 2:1 (on) selectable in menu
• Compatible Receivers: PFM R31, PFM R32, PFM R33, PFM R36, PPA R35, PPA R37, PPA R35-8, PPA R1600
• Approvals/Directives: FCC, Industry Canada, RoHS, WEEE
• Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories
