Williams Sound FM R38

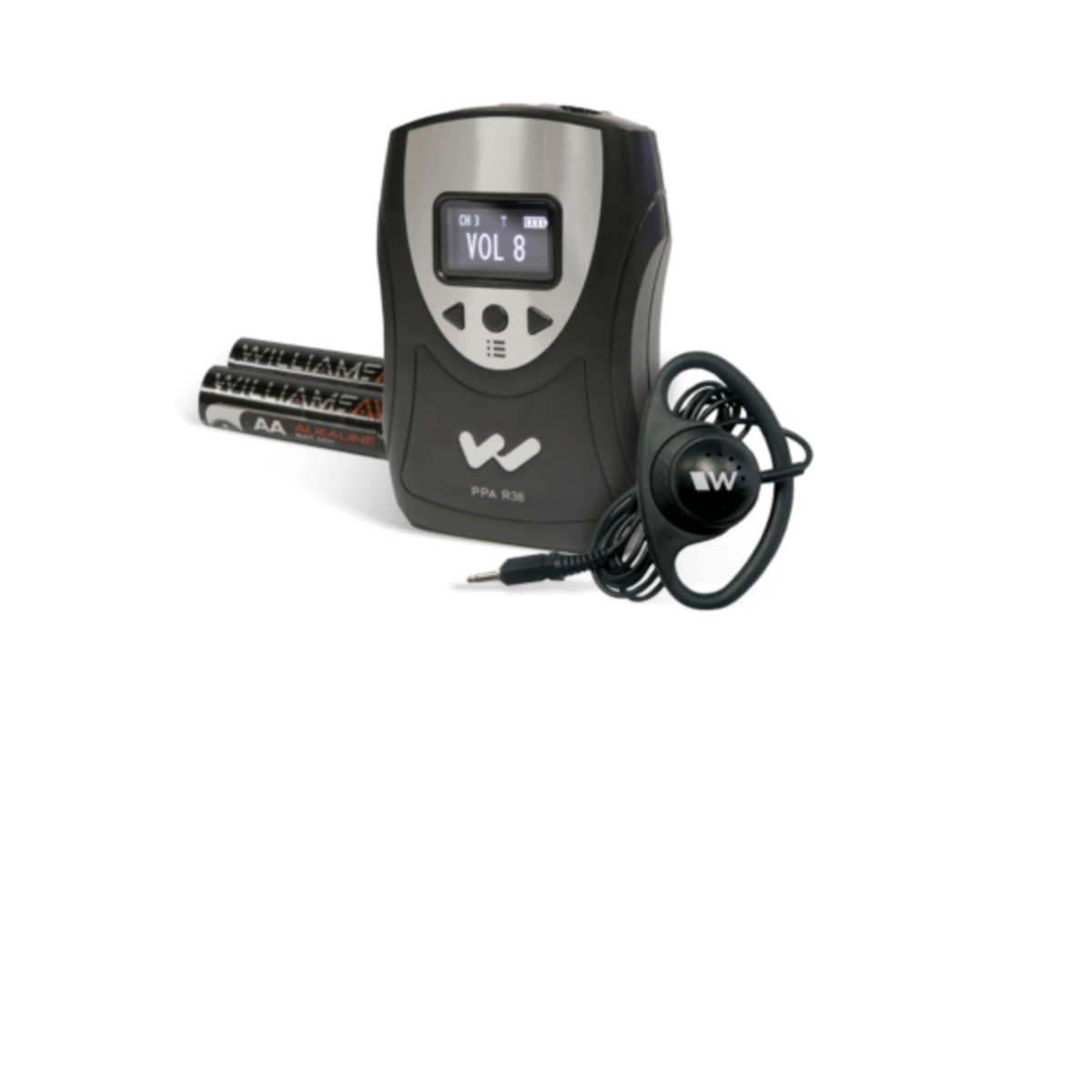

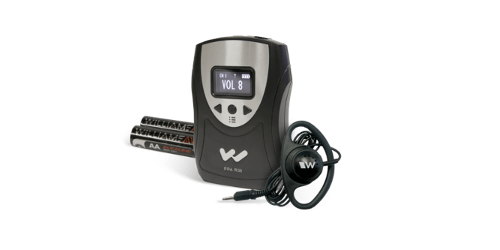

FM R38 Receiver Kit

Description

The FM R38 is a multi-channel FM receiver with a high-resolution OLED screen. The receiver comes with earphones and batteries, but is otherwise identical to the PPA R38.

Specifications

• Battery Life:
  : (2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs.
• (2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs.: Current Consumption:

• 52mA nominal: Operating Temp. Range:

• 32° ? 122°F (0° to 50°C): Channels:

• 17 Wideband, accessed via menu: Operating Frequencies:

• 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*: FM?Deviation:

• 75 kHz: De-Emphasis:

• 75 µS: Display Screen:

• 1" OLED: Power?Indication:

• Power button, backlit green.
  Good battery strength ? glows solid. Low battery ? flashes.
  : Sensitivity:

• 2 µV at 12 dB Sinad with squelch defeated: Input Overload:

• 100 mV: Frequency Response:

• 200 Hz ? 15 kHz, ±3dB: Signal-to-Noise Ratio:

• Minimum 65 dB @ 1.0V: Receive Antenna:

• Integral with earphone/headphone cord: Audio Output:

• 35 mW max at 16 Ohms: Headphone Connector:

• 3.5 mm stereo jack, mono output for stereo or mono earphones/headphones: Headphone Impedance:

• 32 ohms: Supplied Earphone:

• Stereo,earbud-type with foam cushion, 3.5 mm plug, 32 Ohms: Power Save Mode:

• Enters sleep mode after approximately 3 minutes of no RF signal: Approvals:

• FCC, Industry Canada, RoHS, WEEE: Warranty:

• Lifetime PLUS Limited Warranty, 90 Days on most accessories.

Downloads

• Williams Sound FM R38 Specifications (PDF)
