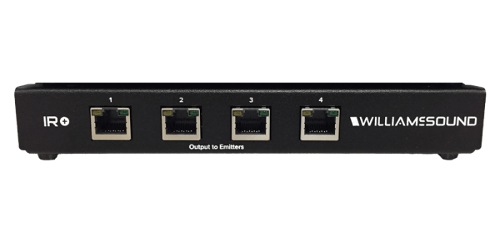

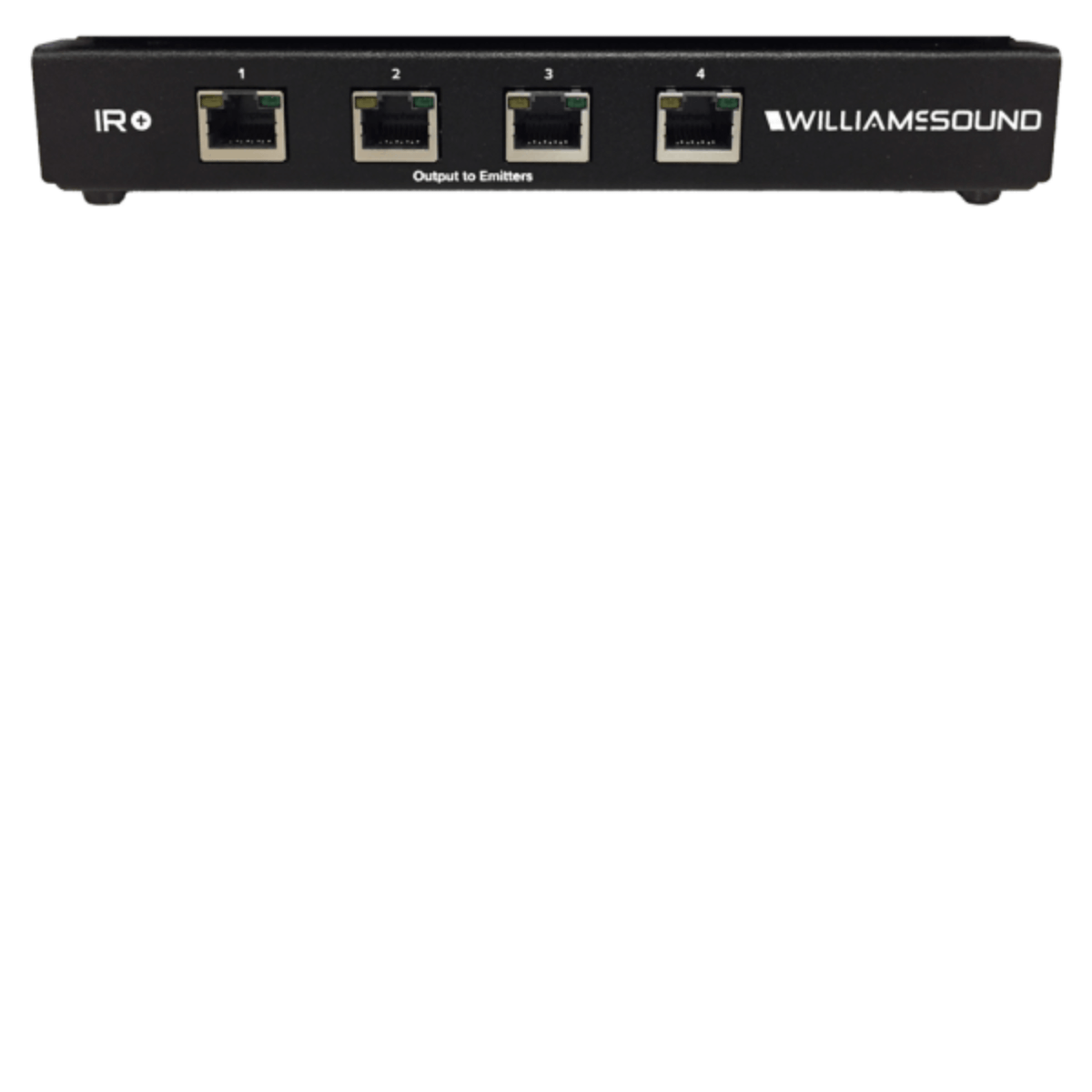

Williams Sound IR A4
IR+ Emitter Array
Manufacturer SKU: IR A4
Satisfaction Guaranteed!
Our Price:
$825.00
Top IR A4 Specifications
- Dimensions: 7.6"W x 6.6"D x 1.1"H (193mm x 168mm x 28mm)
- Weight: 2.4 lb (1100g)
- Color: Black
- Power: 48 VDC, 0.75A
"Great support and help from technical support!"
-Patrick S.
-Patrick S.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
The IR+ features a distributed IR emitter array architecture allowing up to four emitters either stacked together for large room arrays or distributed throughout the room to accommodate wings in room design, balconies or other obscured venue locations.
Specifications
- Connectivity: +48VDC Power, RS-485 communication, and Baseband signals for IR transmission are all provided via CAT5e cable(s) inserted into an RJ-45 jack from the IR M1 and out to the IR E4(s).
- Heat Dissipation: 1W
- Max Cable Length: 328 feet (100m)
- Plenum Rating: The IR A4 is not rated for use in plenum spaces and will need to be installed in a plenum box for use in such areas.
- Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
- Warranty: 2 years
