Williams Sound IR SY5

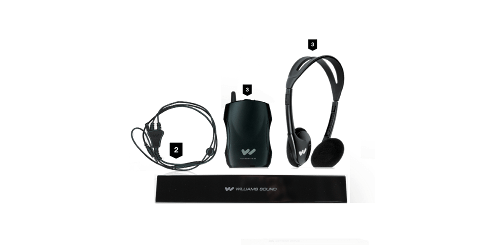

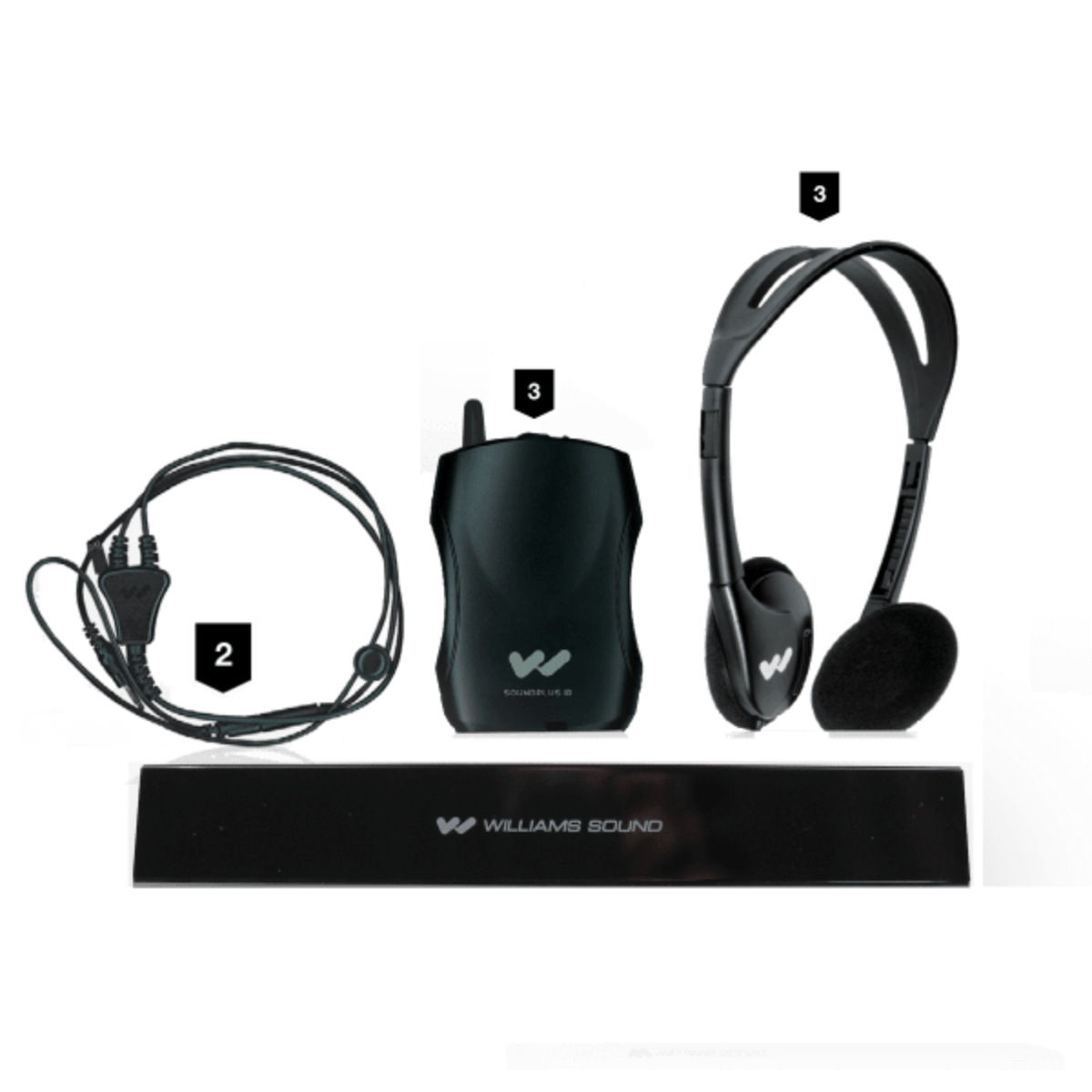

Medium-area Infrared System with Headphones

Description

The IR T2 is a commercial-grade, medium-area infrared transmitter for accessible audio. This system features receivers and headphones for the audience to use.

Specifications

• 48 VDC output

• DC Power Input:
  : 2.1 mm ID barrel connector, 48 VDC, 0.2A, center positive

• Power Indicator:
  : Green LED

• Sleep/Power Save Mode:
  : Shuts off IR when no audio present for 12 minutes

• Modulation:
  : FM Wideband, ±50 kHz deviation max, 50 ?S pre-emphasis

• Transmit Frequencies:
  : 2.3, 2.8, 3.3, 3.8 MHz

• Coverage Area:
  : Up to 18,000 sq. ft (1,673 sq. m) in single-channel mode with the RX22-4 receiver

• Audio Inputs:
  : Line inputs: Phoenix style connector jack for Ch A and Ch B accept line level, balanced or unbalanced audio

• Audio Indicators:
  : One yellow LED per channel. Lights up and stay on steady with minimum audio level.

• Signal-to-Noise Ratio:
  : 70 dB (line input)

• Frequency Response:
  : 95 Hz to 17.6 kHz, -3 dB re 1 kHz (line inputs) 125 Hz to 17.0 KHz, -3 dB re 1 kHz (microphone input)
• Operating Requirements:
  : 32°-122°F (0-50°C)

• Mounting Kit:
  : Wall or Ceiling mount: BKT 024 Omnidirectional mount

• Compatible Receivers:
  : WIR RX22-4, WIR RX18, IR R1

• Warranty:
  : 5-year warranty against component failure and manufacturing defects. See Full Warranty statement on the website for details.

• Approvals/Regulatory Compliance:
  : CE, FCC, Industry Canada, WEEE, RoHS, CB Scheme, RCM, PSE


Downloads

• Williams Sound IR SY5 Specifications (PDF)
