Williams Sound PKT D1 EH

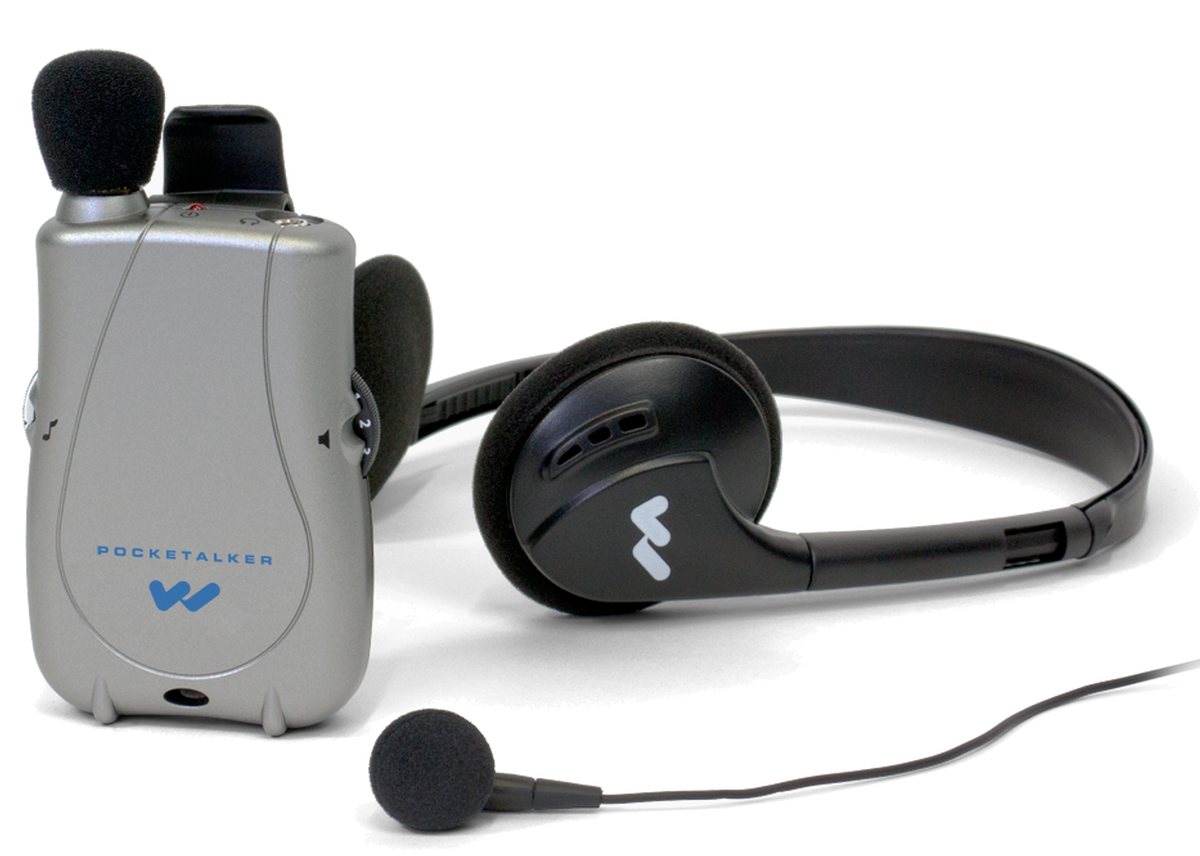

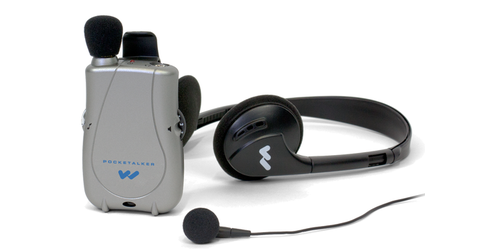

Pocketalker Ultra System with EAR 013 & HED 021

Description

Williams Sound introduces the Pocketalker Ultra with EAR 013 and HED 021 ear and headphone. This assistive listening device can fit in your pocket, palm, or hang conveniently from the included neck lanyard. The Pocketalker is designed to amplify sounds for individuals who are hard of hearing in large, loud environments, or those who cannot hear well in low-volume settings. Other helpful applications include long car or train rides, at restaurants, and when watching TV or at the movies.

This system includes the following:

• PKT D1 Amplifier

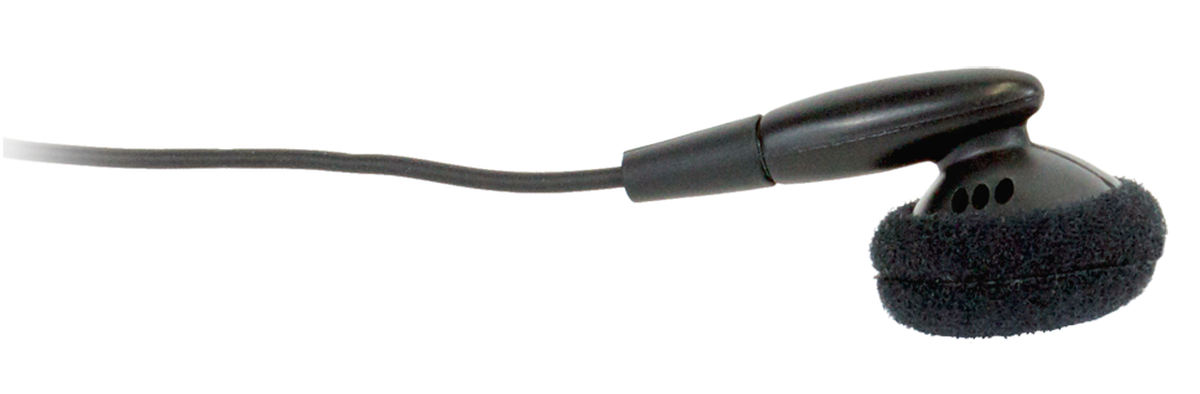

• EAR 013 Single Mini-Earbud

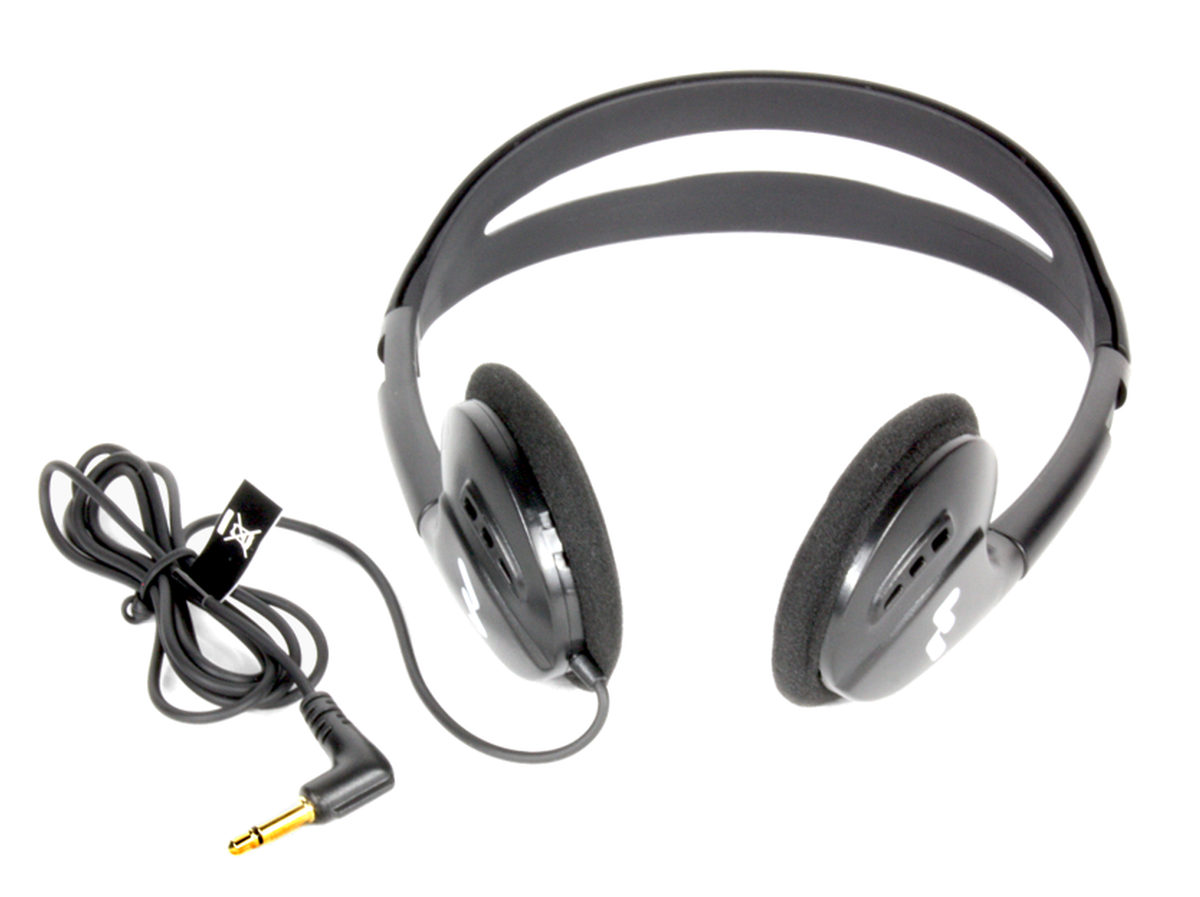

• HED 021 Folding Headphone
• BAT 010-2 Two AAA Alkaline Batteries
• WCA 007 Extension Cord

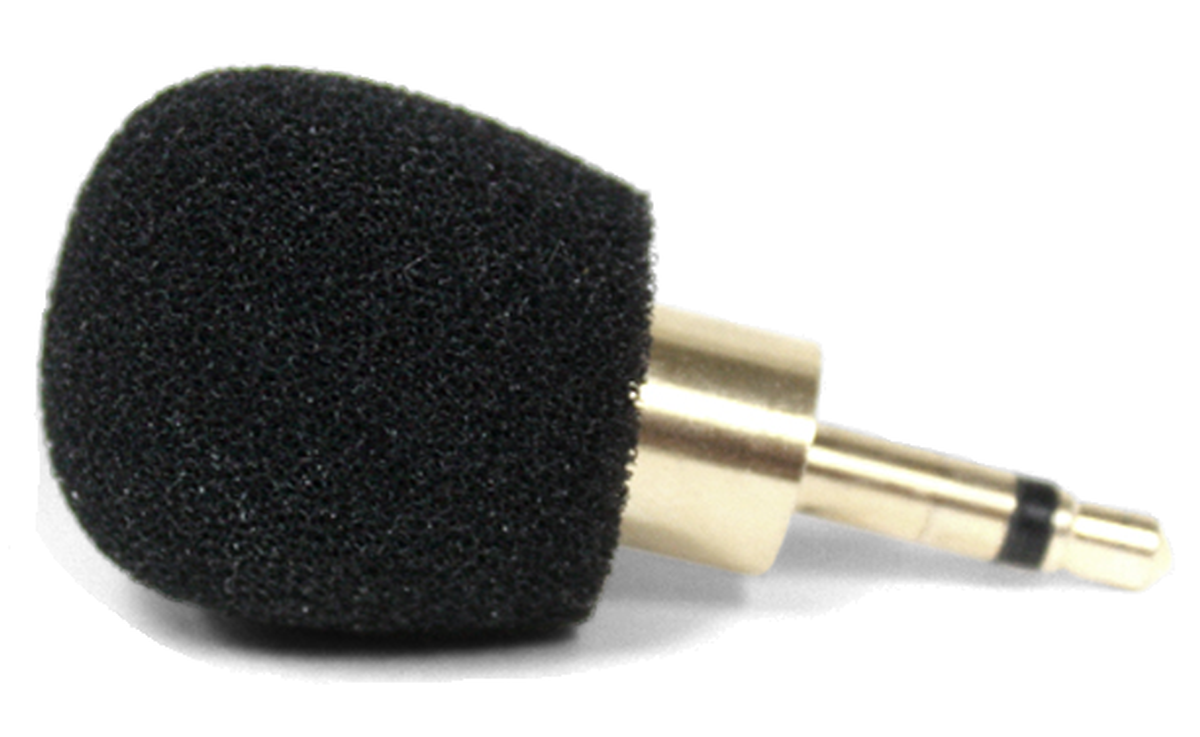

• MIC 014 Microphone

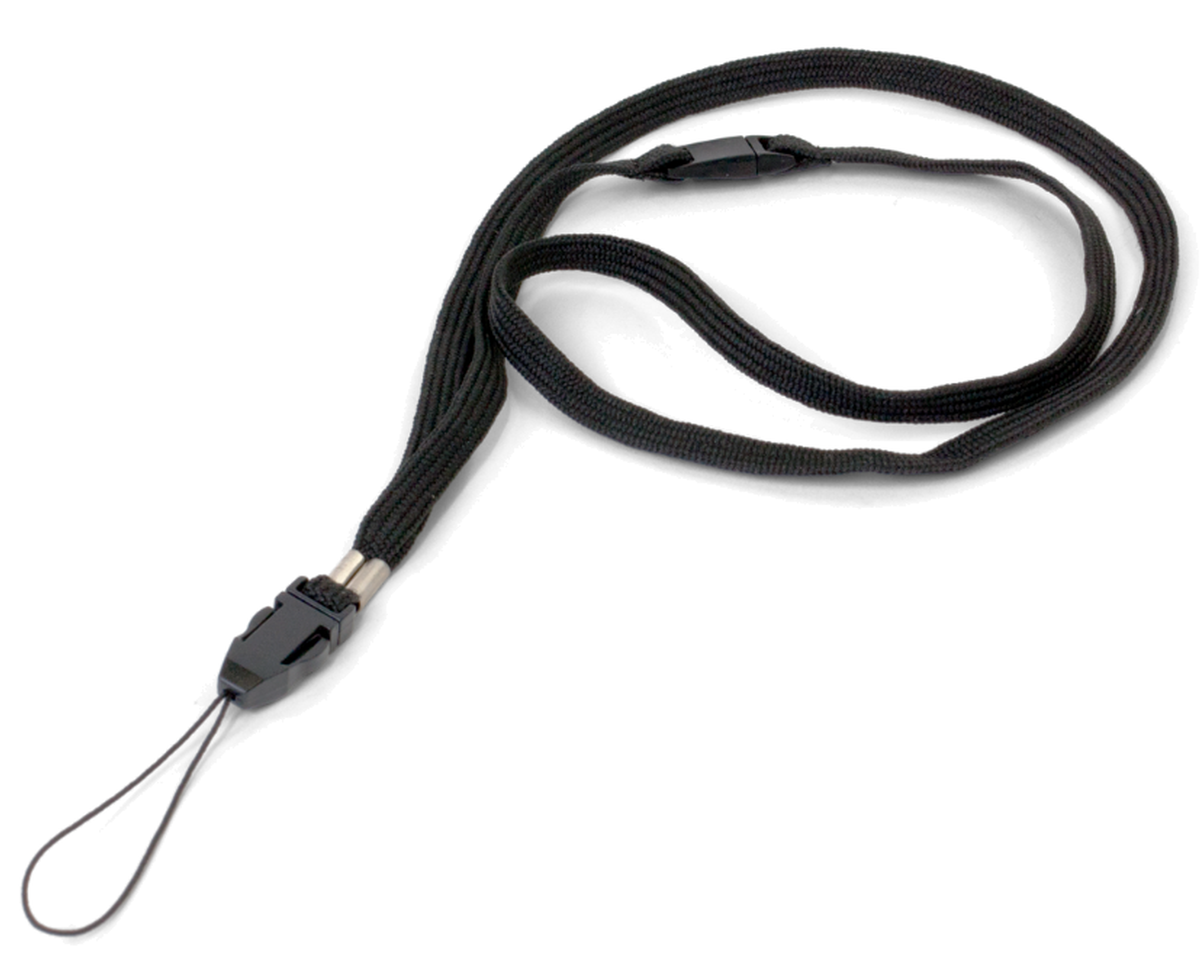

• RCS 003 Lanyard

Specifications

• Frequency Range: 20 - 20kHz
• Max input power: 5mV
• Sensitivity: 128dB @ 1kHz
• Driver size: 13 mm
• Weight: 9g
• Replacement earpad: EAR 015
• HED 021 Specifications
• Style: Mono, folding headphone
• Plug: 3.5mm mono
• Cord: 39"
• Driver Size: 30 mm
• Nominal Impedance: 32
• Freq. Response: 20 - 20kHz
• Weight: 52g
• Max Power Input: 100 mW
• Sensitivity: 110 dB @ 1kHz
• Replacement Pads: HED 023 (one pair)
• MIC 014-R Specifications
• Phantom Powered: No
• Pick-Up Pattern: Omni-directional
• Element: Electret Condenser
• Mic Diameter: 10 mm not including windscreen / 19 mm with windscreen
• Sensitivity: -42 dB 3 dB
• Frequency Range: 20 Hz - 16 kHz
• Output Impedance: 2.2 k
• Standard Operation Range: 2 - 10 V DC
• Signal-to-Noise Ratio: >58 dB
• Replacement Windscreen: WND 002
• Optional 12 ft Extension Cord: WCA 007
• Optional Microphone Clip: CLP 014
• Color: Gold
• Weight: 5 g (0.2 oz)
• Plug: 3.5 mm mono
• Cord: None
• Approvals: RoHS
• Warranty: 90 days
• PKT D1-0 Specifications
• Dimensions: 3.38" x 2.23" x .88"
• Weight: 2.5 oz. (70.9 grams) (with batteries and microphone)
• Color/material: Silver gray, ABS/Polycarbonate molded plastic case
• Battery Type: Two 1.5V (AAA size) alkaline
• Battery Life: Up to 200 hours (typical usage)
• Low Battery Indicator: Red light on top panel flashes
• Microphone: Omnidirectional, electret microphone assembled in housing with foam wind screen and 3.5mm mono plug
• Tone Control: External rotary control knob to allow user to optimize hearing
• Volume Control: External rotary control knob with power ON-OFF switch
• Microphone Jack: 3.5 mm, mono, gold plated mini plug
• Headphone Jack: 3.5 mm, mono, nickel plated mini plug
• Accessories included: Belt clip: Allows the user to wear the unit on a belt. Lanyard: Allows the user to wear around the neck. TV listening extension cord: extends the microphone to 12 ft.
• Options: Unit comes packaged with one of the Williams Sound options: Mini earphone, single (EAR 013) / Dual mini earbud (EAR 014) / Wide range earphone
• single (EAR 008) / Lightweight headphone (HED 021) / Wide range headphone (HED 026) / Induction neck loop (NKL 001)
• Approvals: CE, RoHS, WEEE
• Warranty: 5 years, parts and labor (90 days on accessories)
• Electrical Specifications (1k Hz ref.): Power output: 50 mW (max) into 16 ohms AGC: Limits maximum output level
• Distortion: 2% THD (max)
• Frequency Response: Tone at high position: 11dB boost at 5kHz, 8dB cut at 400 Hz
• Tone at mid position: 0dB boost at 5kHz, 4dB cut at 400Hz
• Tone at low position: 3dB cut at 5kHz, 4dB boost at 400 Hz

Downloads

• Williams Sound PKT D1 EH Specifications (PDF)
