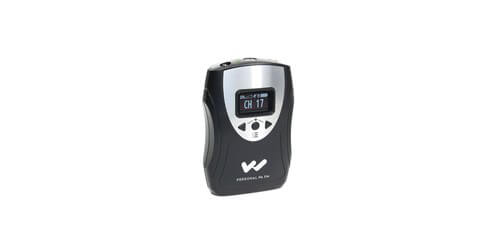

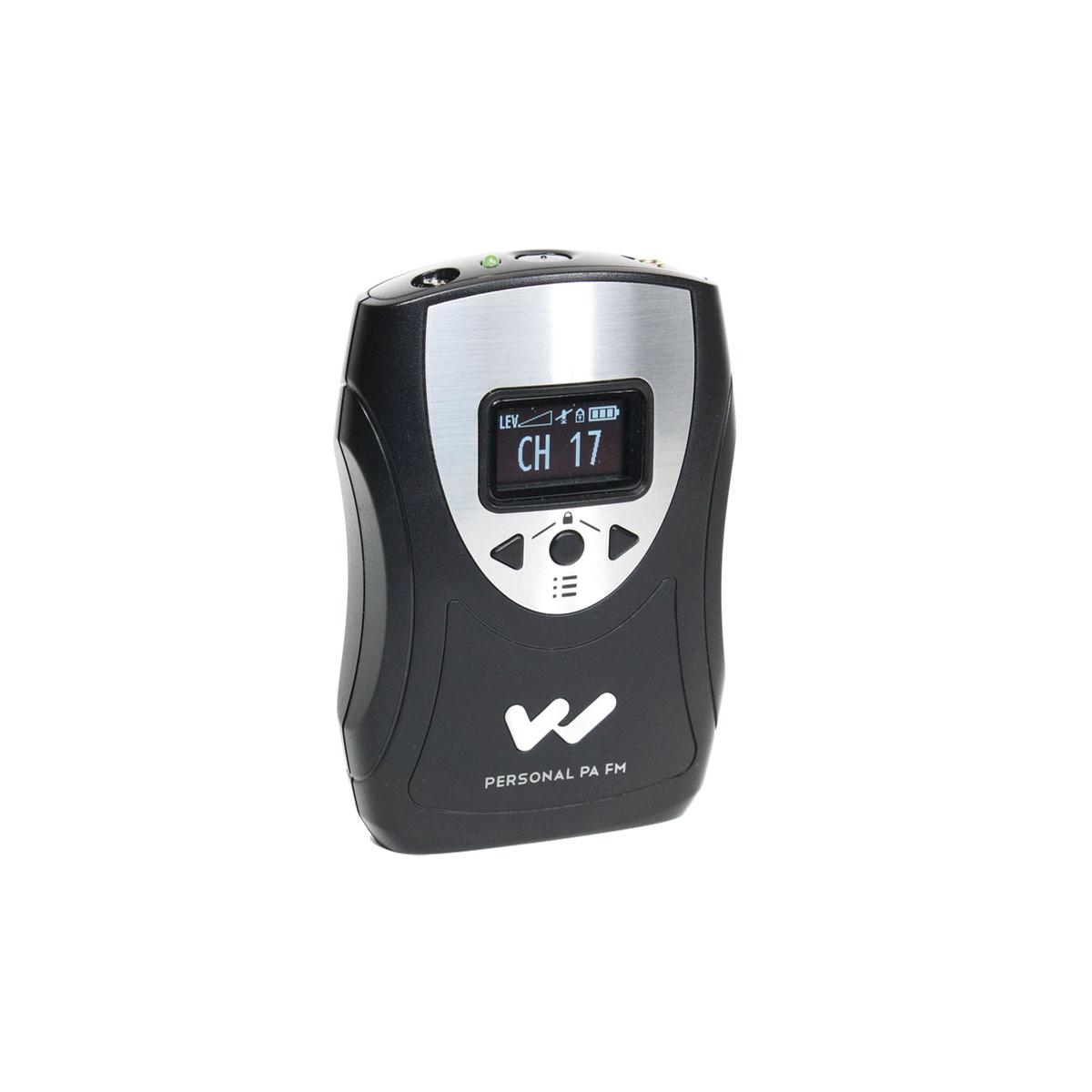

Williams Sound PPA T46
Personal PA Bodypack Dual Mode Transmitter w/ Screen
- PPA T46 Specifications
- Dimensions: 4.1" L x 2.8" W x 1.1" D (104 mm x 71 mm x 28 mm)
- Weight: 2.6 oz (74 g), no batteries
- Color: Black/Silver
-Patrick S.
Description
The PPA SelectView is Willaims Sound FM receiver featuring a high-resolution OLED screen. The OLED screen enables users to quickly view the receiver status and access all user settings.
Key Features
- 17-channel selectable, 72-76 MHz
- Digitally synthesized frequencies
- 1.25" OLED interface displays:
- Master and Auxiliary Volume Level
- Mic Mute
- Settings Lock
- Battery Level
- Easy-to-use menu-access controls:
- Microphone and auxiliary levels
- 8- or 17-channel mode selection
- Current frequency/channel number
- Compression (1:1 or 2:1)
- Display settings
- MIC input accepts electret mic with 3.5 mm mono plug
- AUX audio input accepts 2.5 mm stereo plug
- Range of up to 150’ (with PPA R37 receiver)
- FCC Part 15 compliant*
- Belt clip for hands-free operation
- Meets ADA guidelines
- Made in the USA
- Lifetime PLUS Limited Warranty (90 days on accessories)
The PPA T46 system includes the following items:
- PPA T46 Transmitter

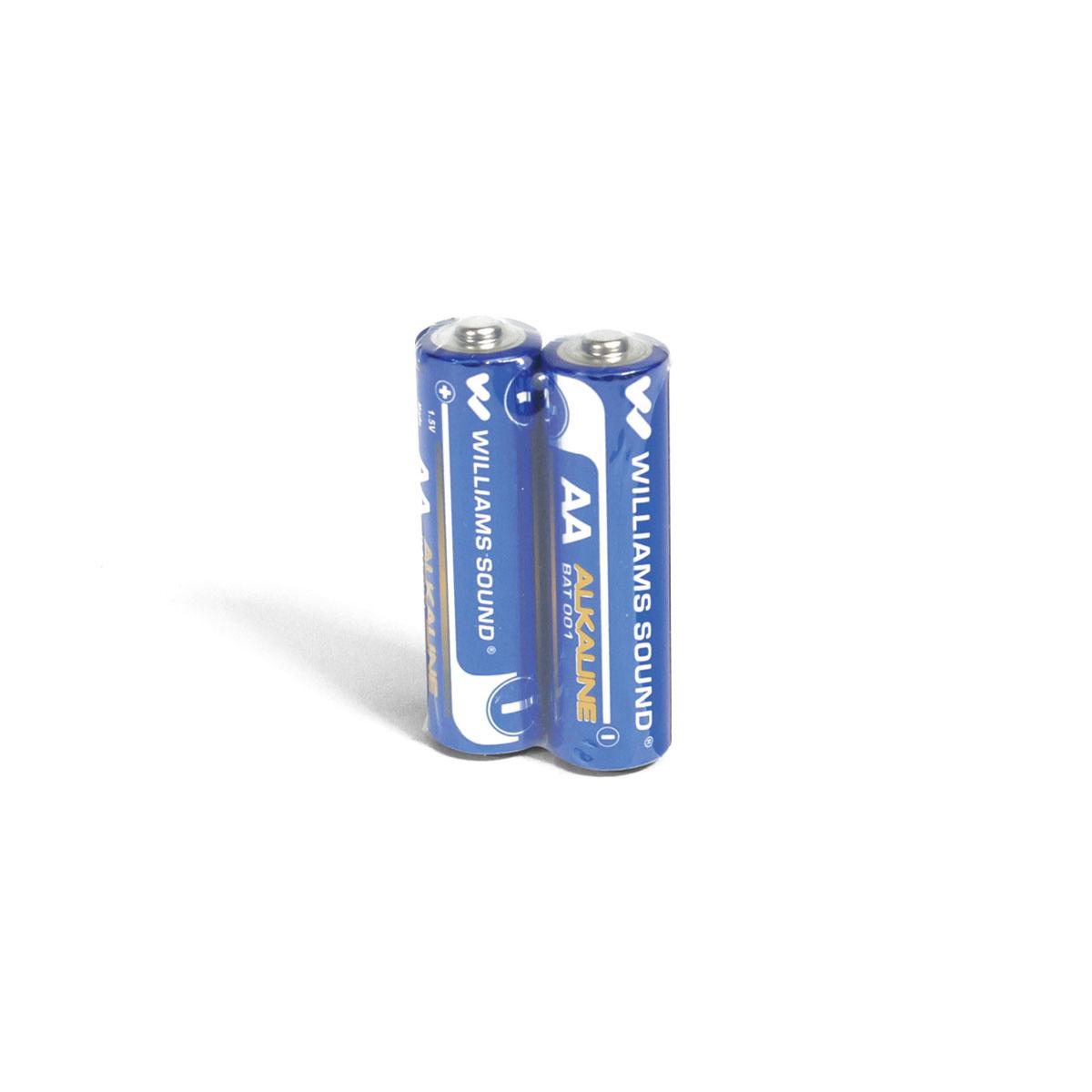

- BAT 001-2 (2) AA Batteries
- CLP 023 Belt Clip

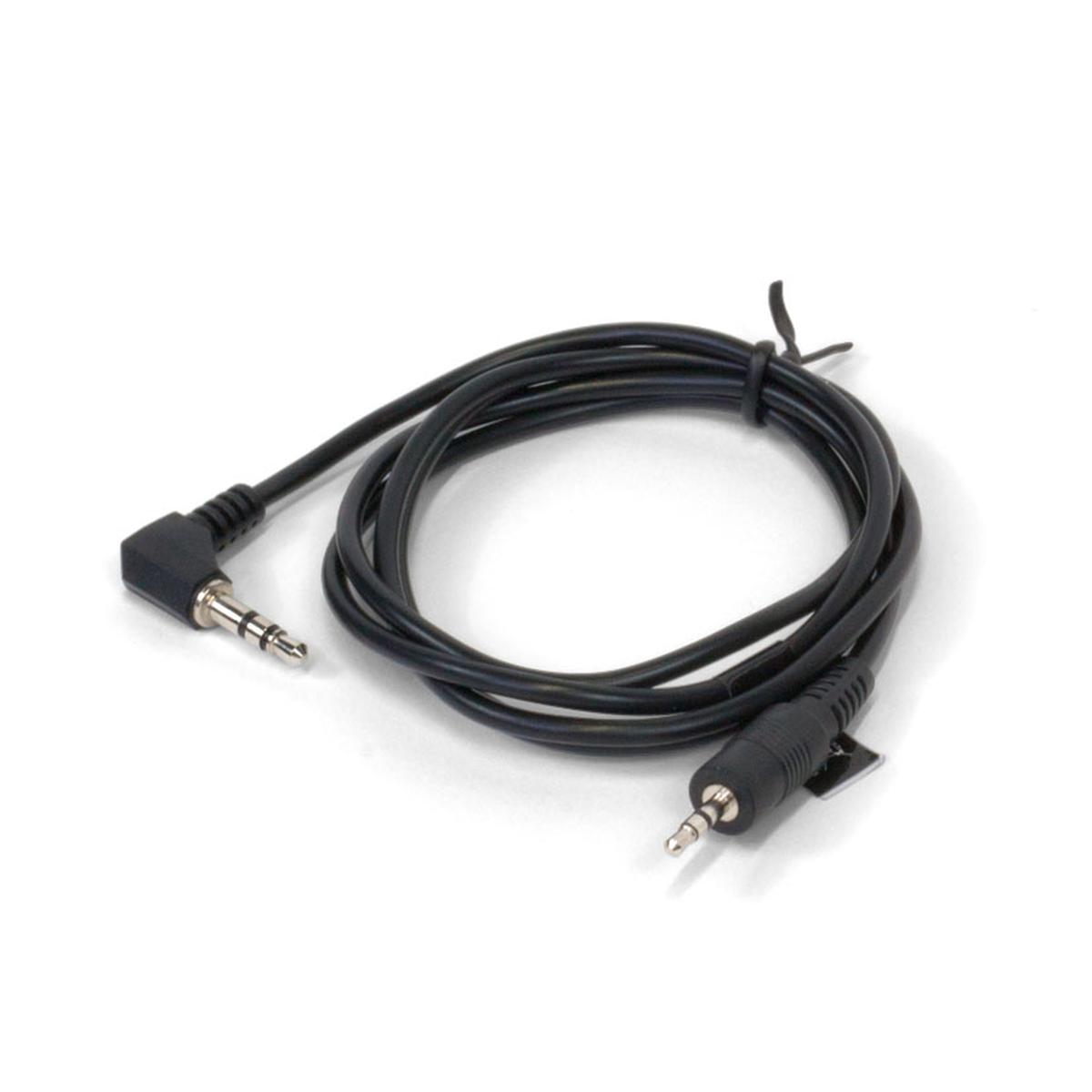

- WCA 087 Auxiliary Input Cable
*The PPA T46 is FCC Part 15 compliant.
Effective July 11, 2016, the FCC has mandated tighter emissions limits on auditory assistance transmitters (72-76 MHz) manufactured or imported after this date to help avoid interference with and/or degradation of other airborne signals (All products manufactured prior to July 11, 2016, are compliant). Williams Sound FM transmitters – PPA T46, PPA T27 and PPA T45 (all models) – all have received a Grant of Certification from the FCC and are fully compliant/approved under this new mandate.*
Specifications
- Enclosure Material: Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate
- Battery Type options: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life / Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14 16 hours, uses CHG 3502 or CHG 3512 Charger
- Operating Frequencies: Selectable, 17 channels, 72.1 75.9 MHz*. Switchable 8 or 17 Channel Mode. (8-channel mode setting corresponds with PPA R35-8 receiver channels)
- Stability: .005%, frequency synthesized, crystal reference, PLL
- Modulation: Wide-band FM, 75 kHz peak, 75 S pre-emphasis
- RF Output: 80 mV/m at 3 m (max. allowed by FCC rules)
- Frequency Response: 180 Hz to 13 kHz, 3 dB at 1% max. THD
- Signal-to-Noise Ratio: 65 dB (typical) transmitted
- Transmit Antenna: Integral with microphone cord
- Microphone: Electret type, 3.5 mm mono plug
- External Display: OED for status and menu information
- Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode
- Menu: Ch/Freq display mode select, Volume, Aux Input, Compression, 17 or 8-channel mode, screen time out, screen brightness, restore default settings
- External Controls: Momentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off. "Up", "Down" and "Menu" buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) located behind the battery compartment door
- External Indicators: Power LED - Green, flashes when battery is low
- Mic Input: 3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range
- Aux Input: 2.5 mm stereo jack, adjustable gain with 60 dB range
- Audio Compression: 1:1 (off) or 2:1 (on) selectable in menu
- Compatible Receivers: PFM R31, PFM R32, PFM R33, PFM R36, PPA R35, PPA R37, PPA R35-8, PPA R1600
- Approvals/Directives: FCC, Industry Canada, RoHS, WEEE
- Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories.
