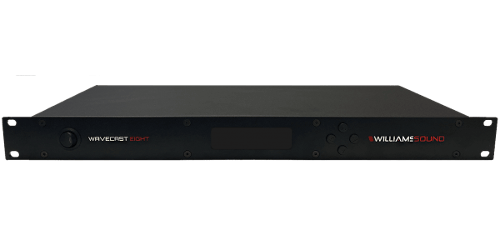

Williams Sound WF T8 D
WaveCAST EIGHT with Dante

Description

Temporarily on back order. Contact your Williams AV representative for alternative options.

Specifications

• Power Supply: Desktop Style Transformer (TFP 062)
• Input: 100-240 VAC, 50/60 Hz. IEC Line Cord
• Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
• Power Switch: Rocker
• backlit red LED indicates power on
• Temperature Range: Operating: +32° F to +122° F (0° C to 50° C)
• Storage: -4° F to +158° F (-20° C to 70° C)
• Audio Processor Functions: DSP based
• Compression: 1: 1, 1.5: 1 or 2: 1
• High-pass and Low-pass Filter Frequency control
• Frequency Response: 31 ? 16000 Hz, ±3 dB (?Music" Audio Preset) dependent on chosen Dante source.
• Signal-to-Noise Ratio: Greater than or equal to 69 dB (streaming to iPhone) dependent on chosen Dante source.
• Total Harmonic Distortion: Less than 0.25% @ 1 kHz dependent on chosen Dante source.
• Common Mode Rejection: Greater than 52 dB @ 1 kHz dependent on chosen Dante source.
• Audio Inputs: Dante RJ-45 on back of unit supports CAT5e cable lengths up to 328 ft. (100 m.) 100/1000 Base-T IEEE 802.3 compliant
• Audio Input Gain Adjust: In menu, adjustable to +6 to -60 dB, in 1dB steps
• Ethernet: RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters)
• 10/100 Base-T IEEE 802.3 compliant, unique MAC address
• Approvals: FCC, RoHS3, WEEE, Industry Canada, CE, PSE, RCM, CB Scheme
• Warranty: 2-year warranty against component failure and manufacturing defects. See the Full Warranty statement on the website for details.

Downloads

• Williams Sound WF T8 D Specifications (PDF)
