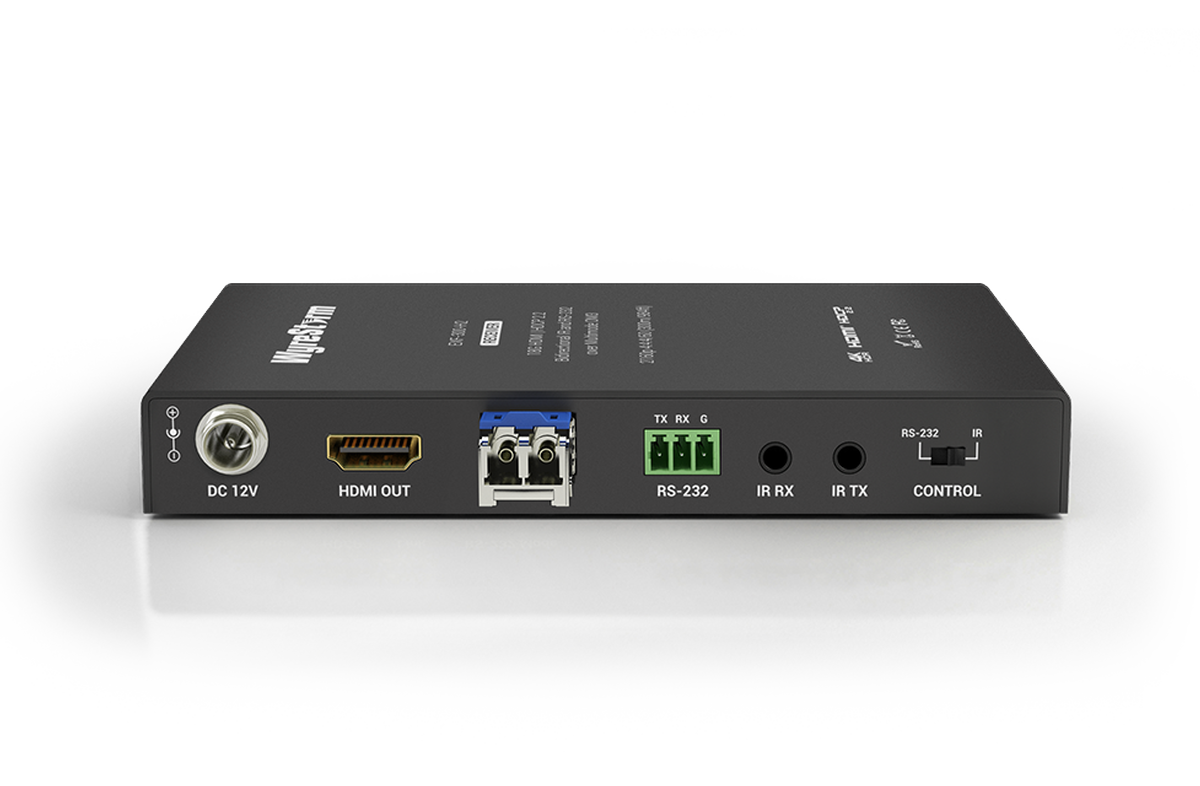

WyreStorm EXF-300-H2
4K 18Gbps HDMI Bidirectional IR Over OM3 MM Fiber Extenders

Description

WyreStorm’s first fiber-optical extender, ensuring perfect transmission of 18Gbps HDMI signals to 300m/984ft. The EXF-300-H2, is compatible with 2160p 4:4:4/60 or high frame rate HDR content with HDCP 2.2 encryption and will send it via a 10G OM3 multi-mode cable, without any effect from EM or RF interference along the way.

Primary Features and Benefits:

• Extends 18Gbps HDMI transmissions using multimode fiber up to 300m/984ft
• Compatible with the latest HDR-10 content and 4K/60 4:4:4
• HDCP 2.2 compliant
• Passes IR or RS-232 control signals bidirectionally
• Ideal for long distance transmission in environments with high-levels of EM or RF interference

Specifications

• HDMI Video Resolutions: Up to 4096x2160p @60Hz 8bit 4:4:4 at 10'
• MM OM3 Video Resolutions: Up to 4096x2160p @60Hz 8bit 4:4:4 at 984'
• Audio Formats: 2chAnalog/PCM | Multichannel: LPCM and Up to Dolby TrueHD and DTS-HD Master Audio
• Encoding Data Rate: 10Gbps
• Support Standards: DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
• Max Pixel Clock: 600mHz

• Communication and Control
• HDMI: HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
• Fiber Multimode: HDMI | HDCP 2.2 | EDID
• RS-232: 1x 3-pin Phoenix | Bidirectional over OM3
• IR: 1x IR RX: 3.5mm (1/8in) TRS Stereo | 1x IR TX: 3.5mm (1/8in) TS Mono | Bidirectional over OM3

• Power Supply: 12V DC .5A
• Max Power Consumption: 4W

• Rack Units | Wall Box: <1U
• Height With | Without Feet: 20mm/0.79in
• Width With | Without Brackets: 150mm/5.91in
• Depth With | Without Handles: 74.4mm/2.93in
• Weight: 0.3kg/0.66lbs

Downloads

• WyreStorm EXF-300-H2 Specifications (PDF)
• Wyrestorm EXF-300-H2 Quick Start Guide (PDF)
