WyreStorm EXP-CON-H2-DD
4K HDMI Scaler - Dolby TrueHD & DTS-HD Audio Down Mixing

Description

The EXP-CON-H2-DD is the audio tool that everyone should have. This versatile offering is loaded with powerful features. Take up to Dolby True HD or DTS-HD 7.1 audio signals from an HDMI source and downmix to RCA stereo analog. Featuring 18Gbps HDMI passthrough, easily transmit 4K HDR or Dolby Vision content to a connected display or AVR. If you have an older 1080p, don't worry, as the HDMI output of the converter can scale 4K content to 1080p. If you need multi-zone audio downmixing simply rack mount up to 12 converters by using the NHD-000-RACK4.

Specifications

• Inputs: (1) HDMI 2.0b
• Outputs" (1) HDMI, (1) Audio (RCA Stereo), (2) Audio Out (Mirrored S/PDIF)
• HDMI Output supports 4K to 2K video scaling with HDR conversion
• Max Transmission Rate: 17.8Gbps
• HDCP Pass-through, 2.2 Supported
• Manual EDID dipswitches for easy manipulation of audio and video settings
• RS-232 control port for integration with 3rd-party control systems
• Supports rack mounting with the NHD-000-RACK4 or NHD-140-RACK-1U.

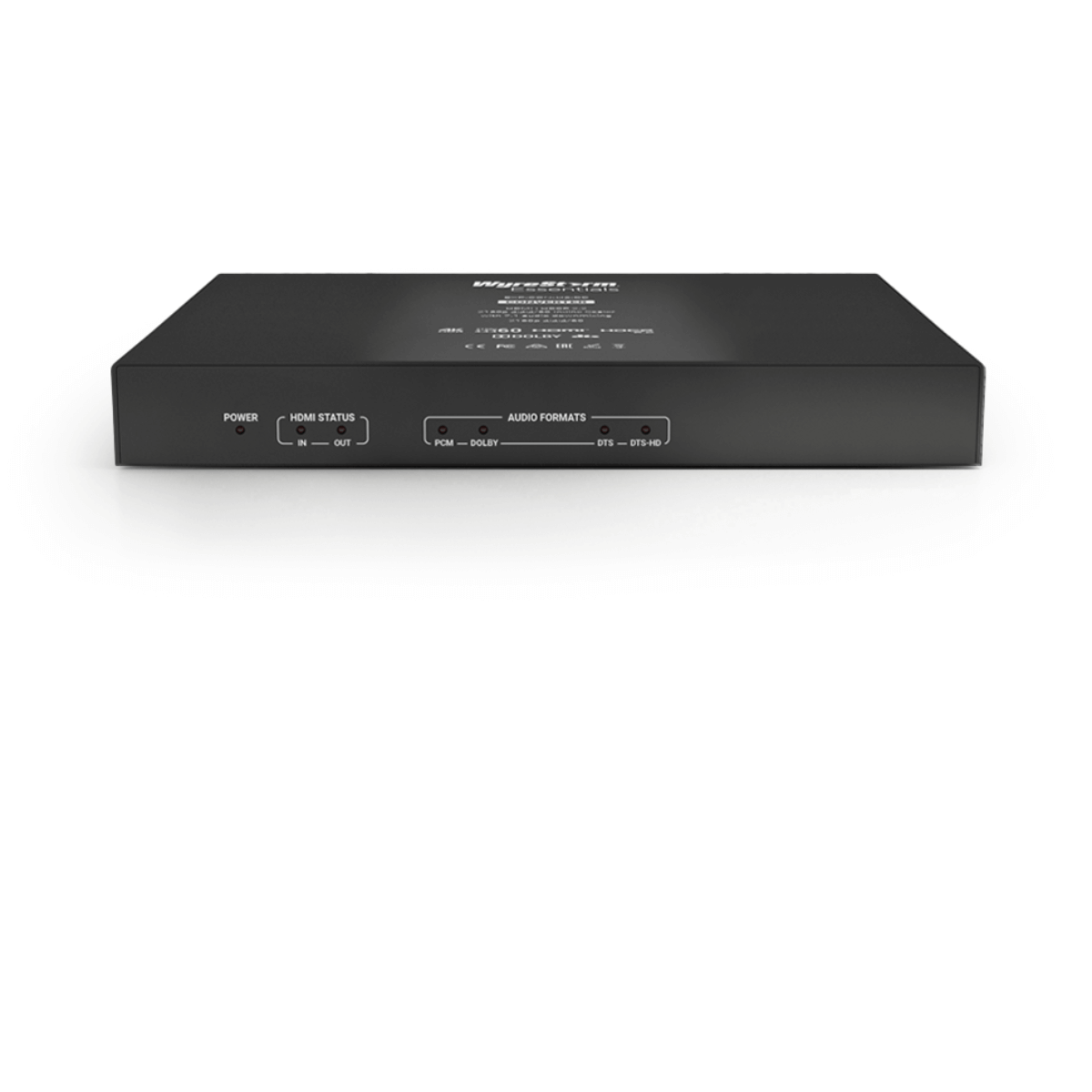

• Front panel audio decoding LEDs for easy signal identification
• Manufactured under license from Dolby Laboratories

Downloads

• WyreStorm EXP-CON-H2-DD Specifications (PDF)
• WyreStorm EXP-CON-H2-DD Manual (PDF)
