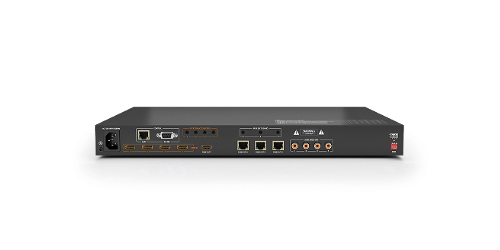

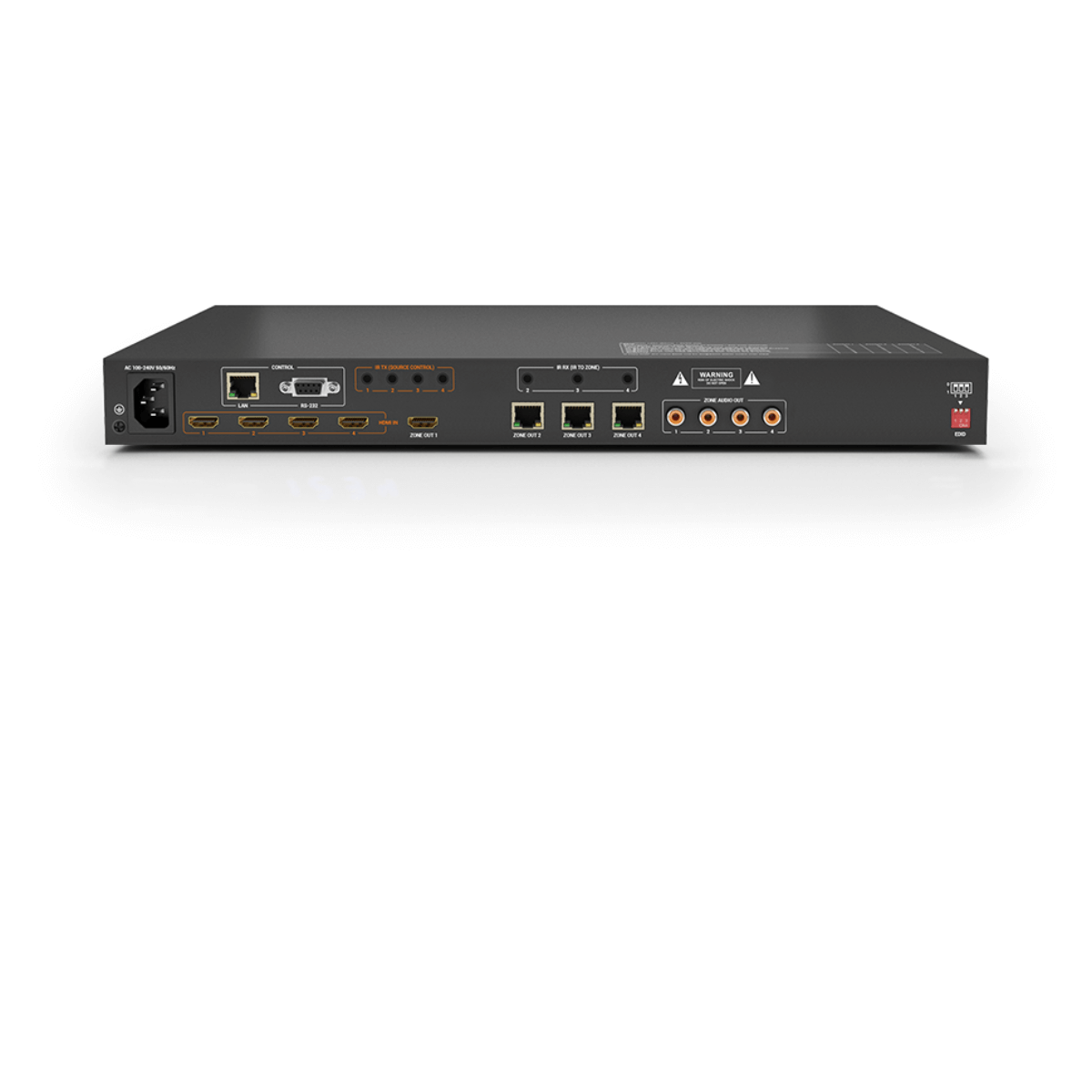

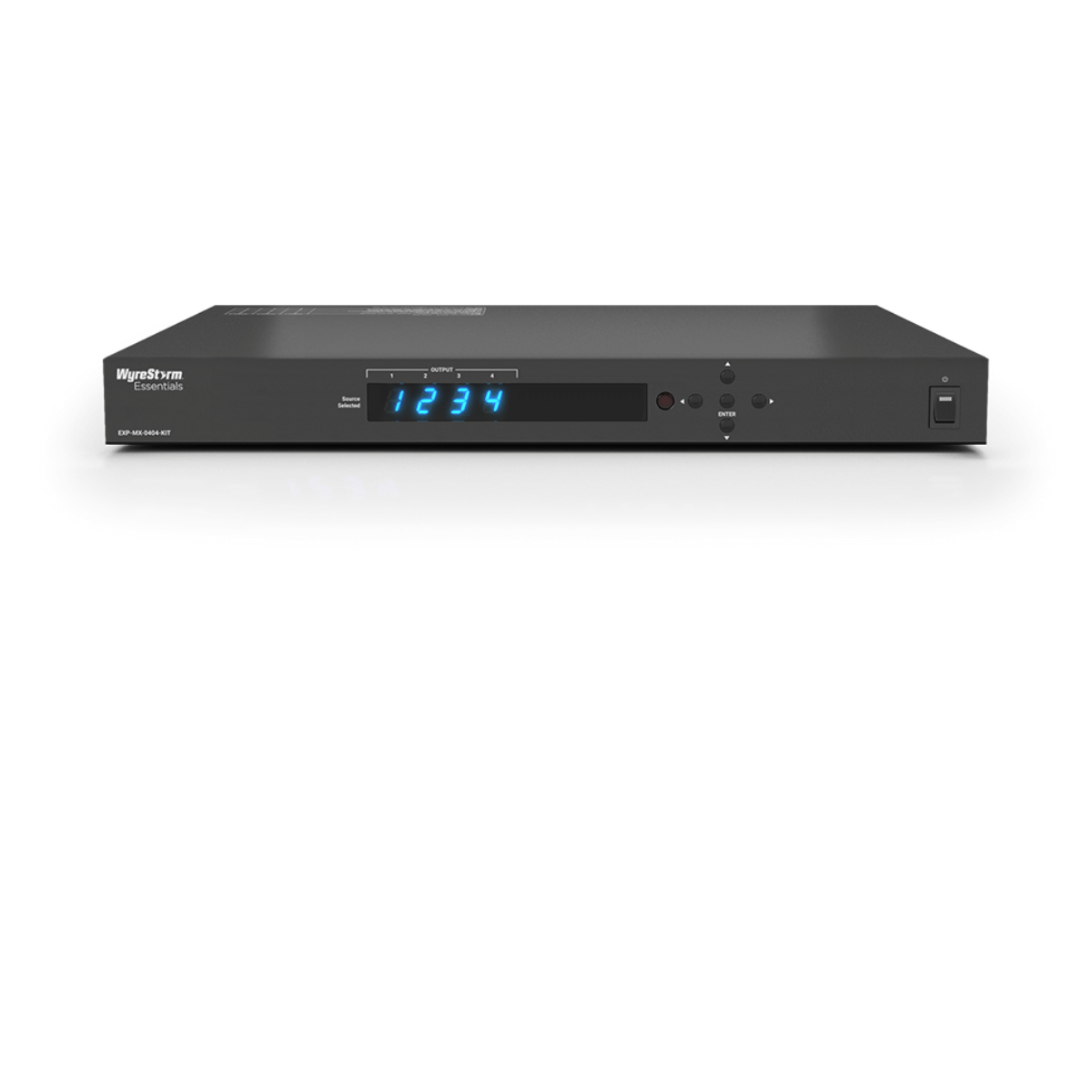

WyreStorm MX-0404-KIT
4k UHD Matrix Switcher with 3 HDBaseT Receivers

Description

The Wyrestorm EXP-MX-0404-KIT is a Matrix Switcher that features 3 HDBaseT zone outputs with PoH and a single switched HDMI output which can be paired with WyreStorm’s HAOC hybrid optical HDMI cables or any extender for transmission via HDBaseT or OM3 fibre. The EXP-MX-0404-KIT doesn’t stop there, offering zone audio breakout via S/PDIF, CEC triggering for all connected screens and the A/V mute function enhances the offering for the modern home or commercial installation.

4K UHD and HDR Support:

Small in price yet big on specification, the 4x4 kit can handle current video content up to 4K/60 4:2:0 covering a majority of current source devices, even supporting 10-bit HDR content at up to 30Hz and multi-channel audio. Powerful HDBaseT technology sends this, IR control and PoH for the included recievers up to 35m/115ft.

De-Embedded Audio

With audio functionality to match its video capability, the 4x4 kit has the ability to extract audio signals from the output, following the zone. Having S/PDIF connectivity means having the flexibility to send multi-channel 5.1 audio to local AVR's or downmix to stereo using the EXP-CON-DAC-D.

CEC Triggering:

Working automatically on signal presence or triggered via the API, this 4x4 kit can send power trigger commands to all compatible connected screens or projectors meaning an integrated autonomous control solution.

Specifications

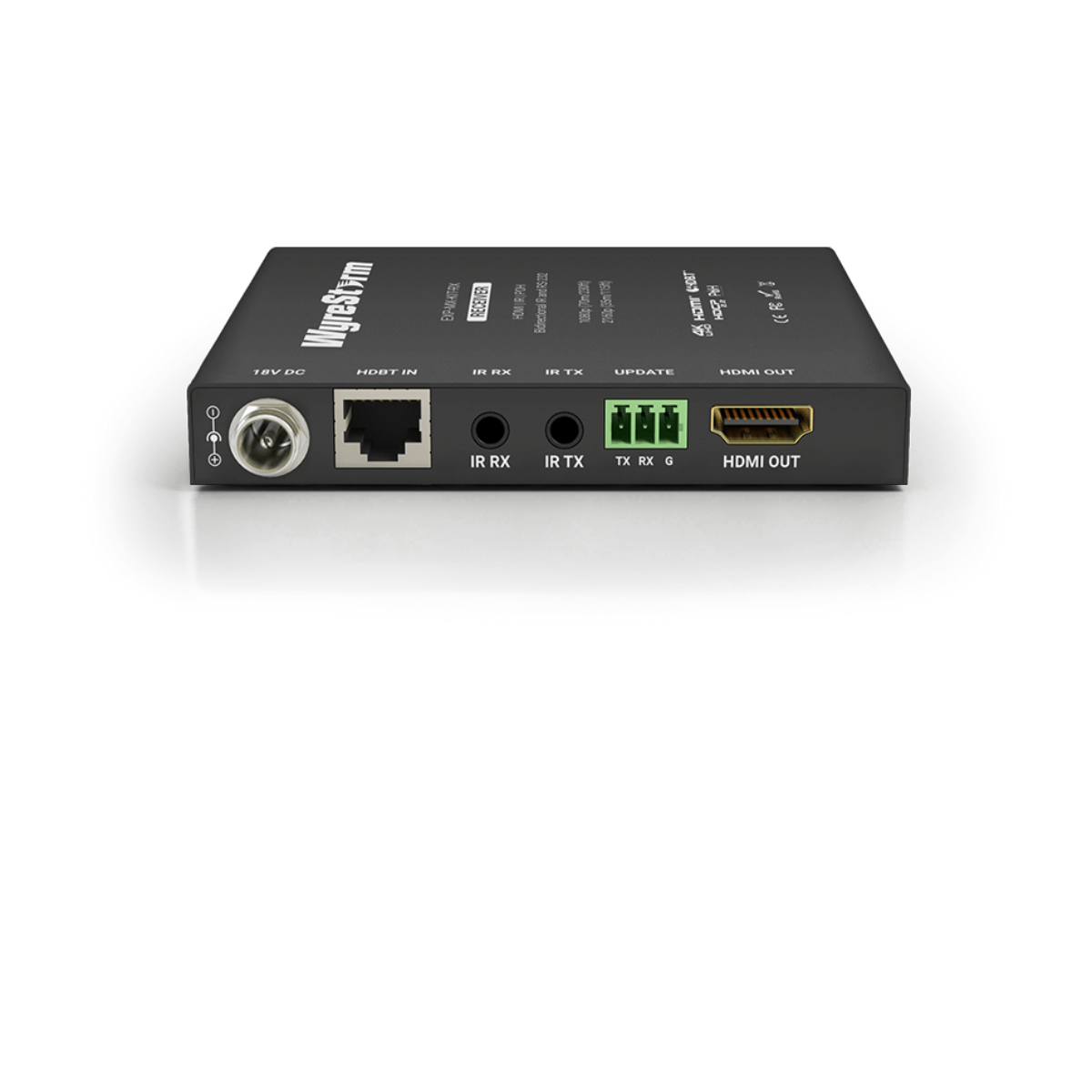

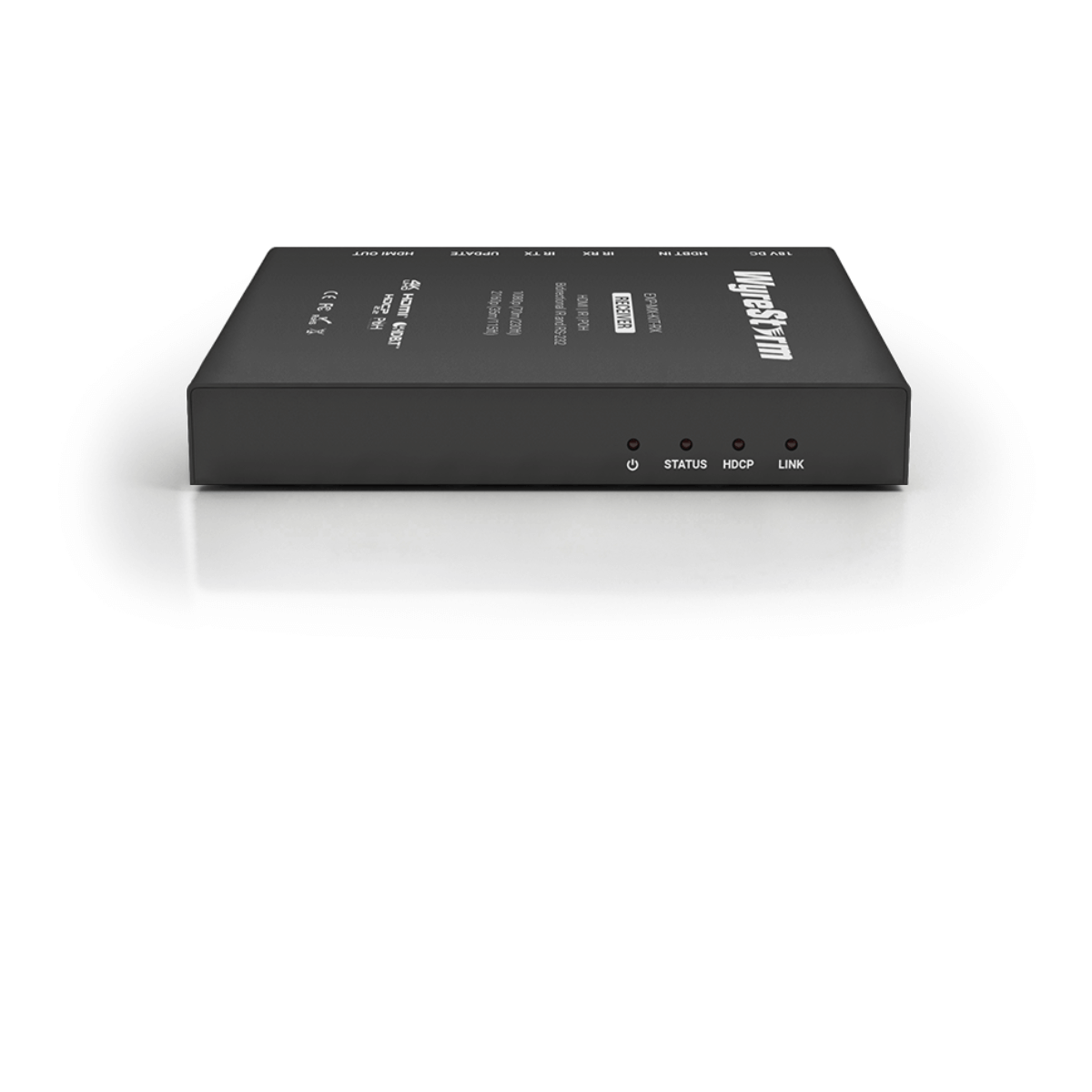

• Receiver Inputs: 1x HDBT In: 8-pin RJ-45 Female
• Receiver Outputs: 1x HDMI Out: 19-pin type A
• Resolutions: Up to 4K60 at 131' over Cat6a or better
• Output Video Encoding: HDBaseT Class B
• Encoding Data Rate: 9.2Gbps
• End to End Latency: 10 s (micro seconds)
• Warranty: 5 Years
