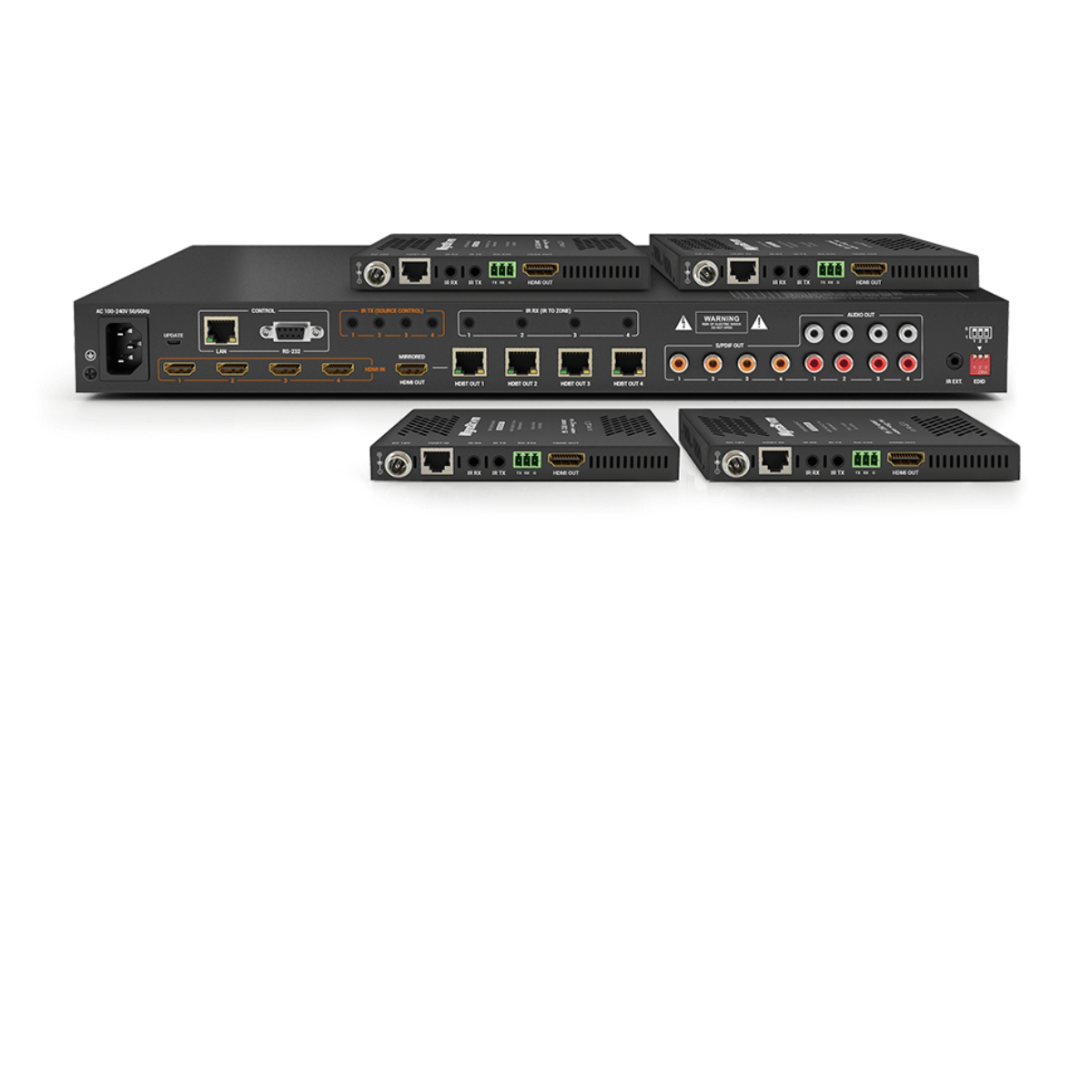

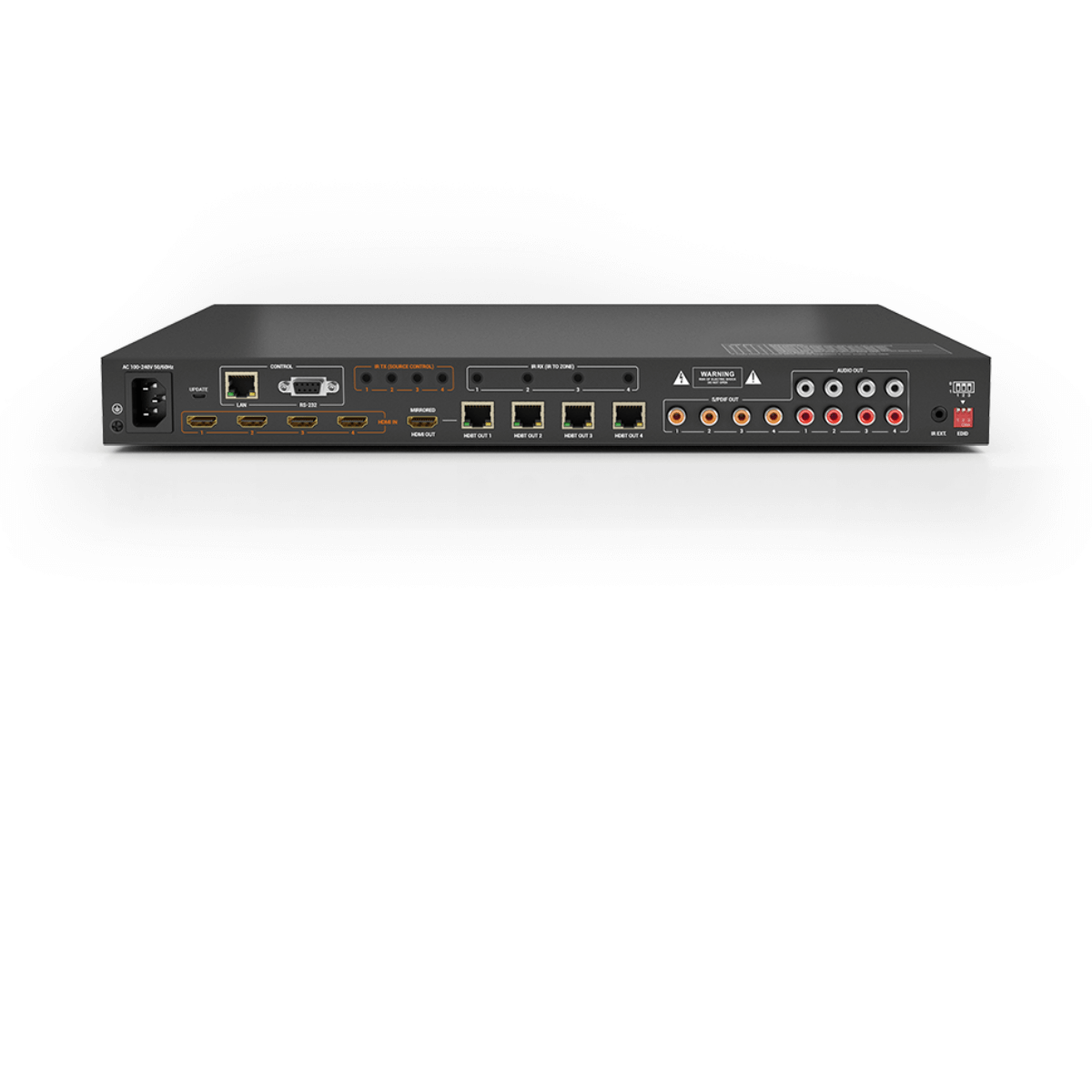

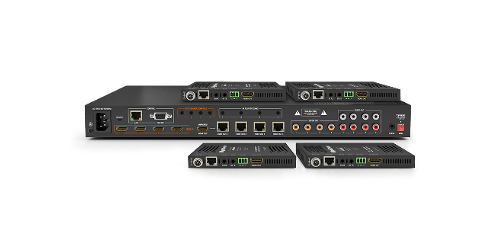

WyreStorm MXV-0404-H2A-KIT
4K HDR 60Hz HDBaseT 4x4 Matrix Switch with 4x Receivers
- 4x4 HDBaseT 4K matrix switcher supporting
- Content up to 4K/60 4:4:4 & RGB 8-bit
- The latest HDR standards, including HDR-10, HLG and Dolby Vision
- HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources HD Multichannel audio up to DTS:X and Dolby Atmos to all outputs
-Gregory W.
Description
Featuring the Wyrestorm MXV-0404-H2A-KIT. Offering transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm s powerful lossless compression algorithm, the MXV-0404-H2A-KIT brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods such as CSC, which permanently remove color data, WyreStorm s VLC uses a lossless compression technology to ensure signal integrity.
With 4 HDBaseT zone outputs and a mirrored HDMI output offering CEC triggering for all 5 connected screens, this kit enhances the offering for the modern home or commercial installation. Internal audio switching allows audio breakout from source or zone output via S/PDIF and analog stereo ports. Being a second generation product, now two of the included receivers are upgraded to scaling receivers, RXV-35-SCL, allowing compatibility between 1080p screens and 4K sources and additional 2ch/5.1 audio breakouts.
Specifications
- HDMI Inputs HDBaseT outputs and mirrored HDMI port supports bandwidths of up to 18Gbps
- Capable of transmitting content to 35m/115ft over Cat6 cable or 1080p/60Hz to 70m/230ft over HDBaseT using light compression
- Automatic (signal sensing) or manual (API operated) CEC power triggering of all connected screens or projectors (CEC compatibility required)
- Assignable audio outputs allow audio to be de-embedded from sources or HDBaseT output via mirrored stereo RCA and S/PDIF ports
- A/V Mute mode allows the routing of a signal to an output to be deactivated
- API controlled standby mode allows the matrix to enter a low power state when not in use, cutting power consumption by up to 34%
- Mirrored HDMI output allows connection of a local AVR, local screen or additional display over distance via an HDBaseT extender or hybrid optical HDMI cable
- API triggered A/V mute allows a signal to be deactivated to any zone
- 4x PoH receivers included a complete kit for quicker, easier and more reliable installation and AV distribution straight out of the box
- HDBaseT technology handles video, audio, bidirectional IR and PoH to display zones along a single Cat6 cable
- Can be combined with WyreStorm EXP-CON-DAC-D digital audio converter to downmix Dolby Digital 5.1 content to mix stereo and surround sound zones
- SmartEDID removes conflict when mixing 1080p & 4K displays by dynamically detecting display/source capabilities and automatically requesting the highest possible resolution for all displays
- Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
