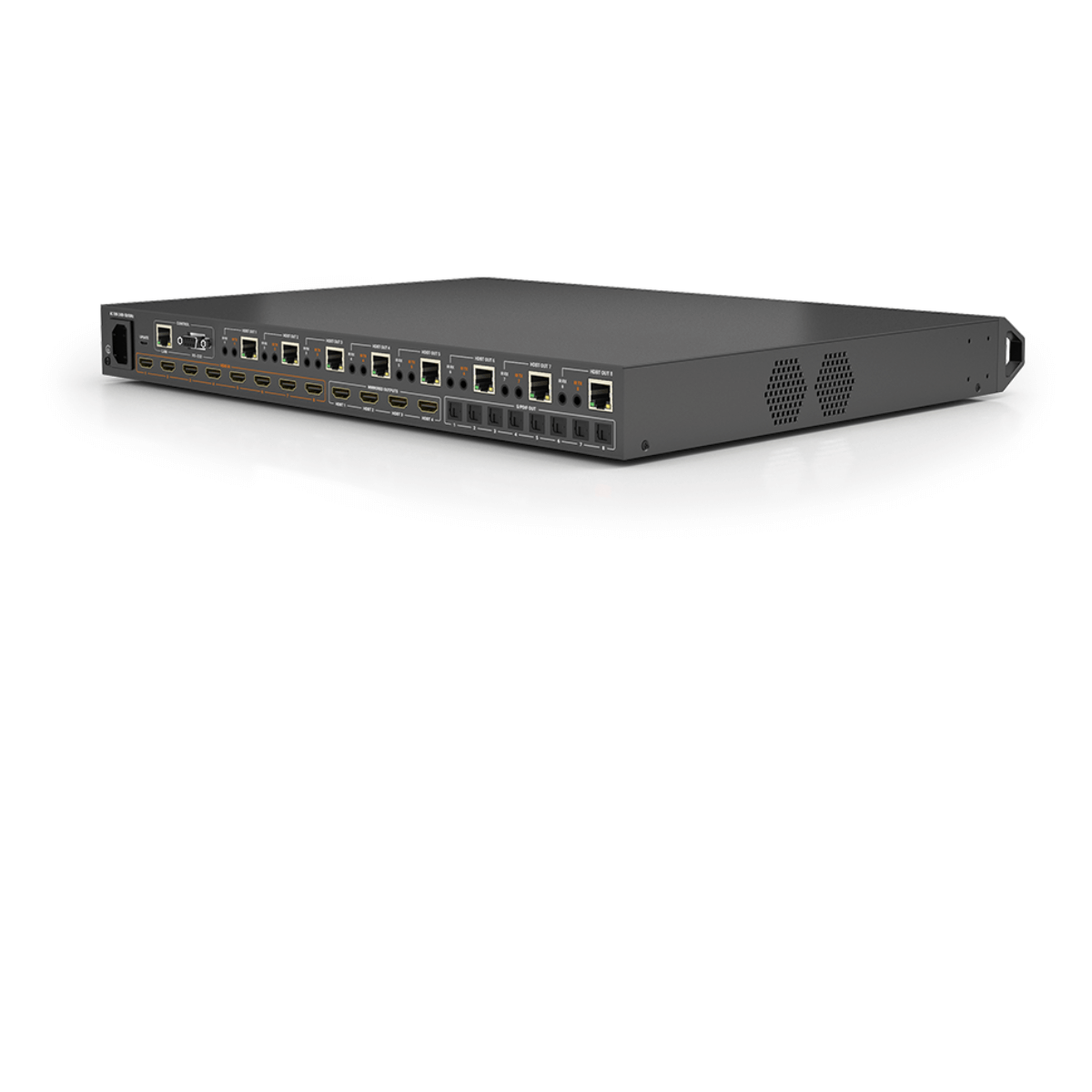

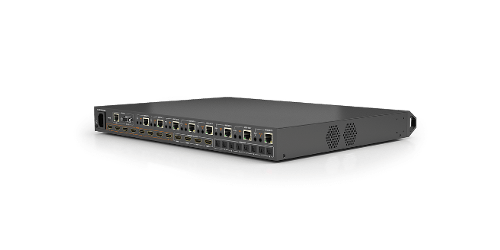

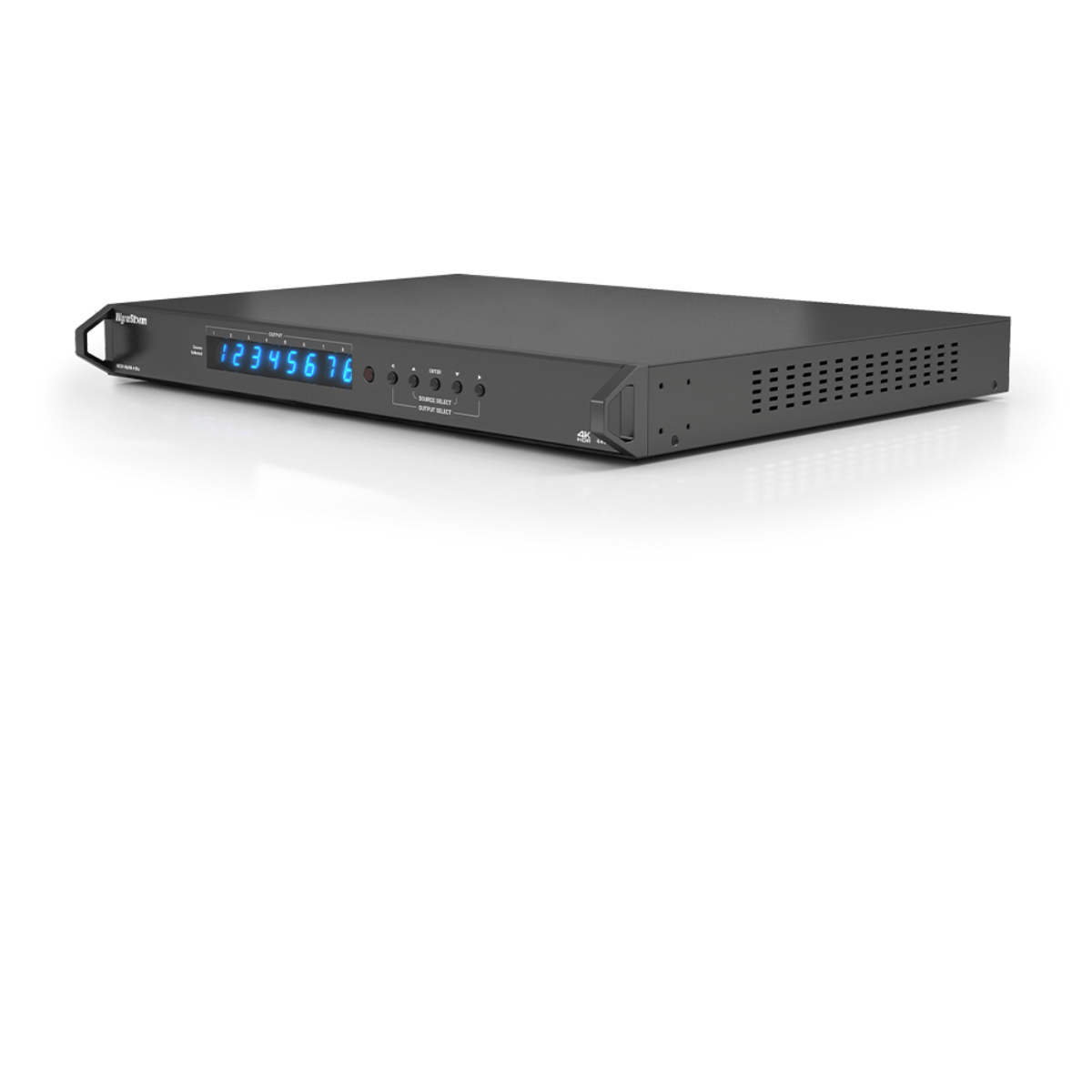

WyreStorm MXV-0808-H2A-V3
4K HDR HDBaseT 8x8 Matrix Switcher

Description

Offering transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm’s powerful lossless compression algorithm, the MXV-0808-H2A brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods such as CSC, which permanently remove color data, WyreStorm’s VLC uses lossless compression technology to ensure signal integrity.

With 8 HDBaseT zone outputs and 4 mirrored HDMI outputs–which can be paired with WyreStorm’s hybrid HDMI cables or any extender–and CEC triggering for all 12 connected screens, the MXV-0808-H2A enhances the offering for the modern home or commercial installation.

Specifications

• HD Multichannel audio up to DTS:X and Dolby Atmos to all outputs
• Proprietary compression algorithm enables 60Hz 4K UHD content (4:4:4 or HDR) to be sent over HDBaseT to 35m/115ft

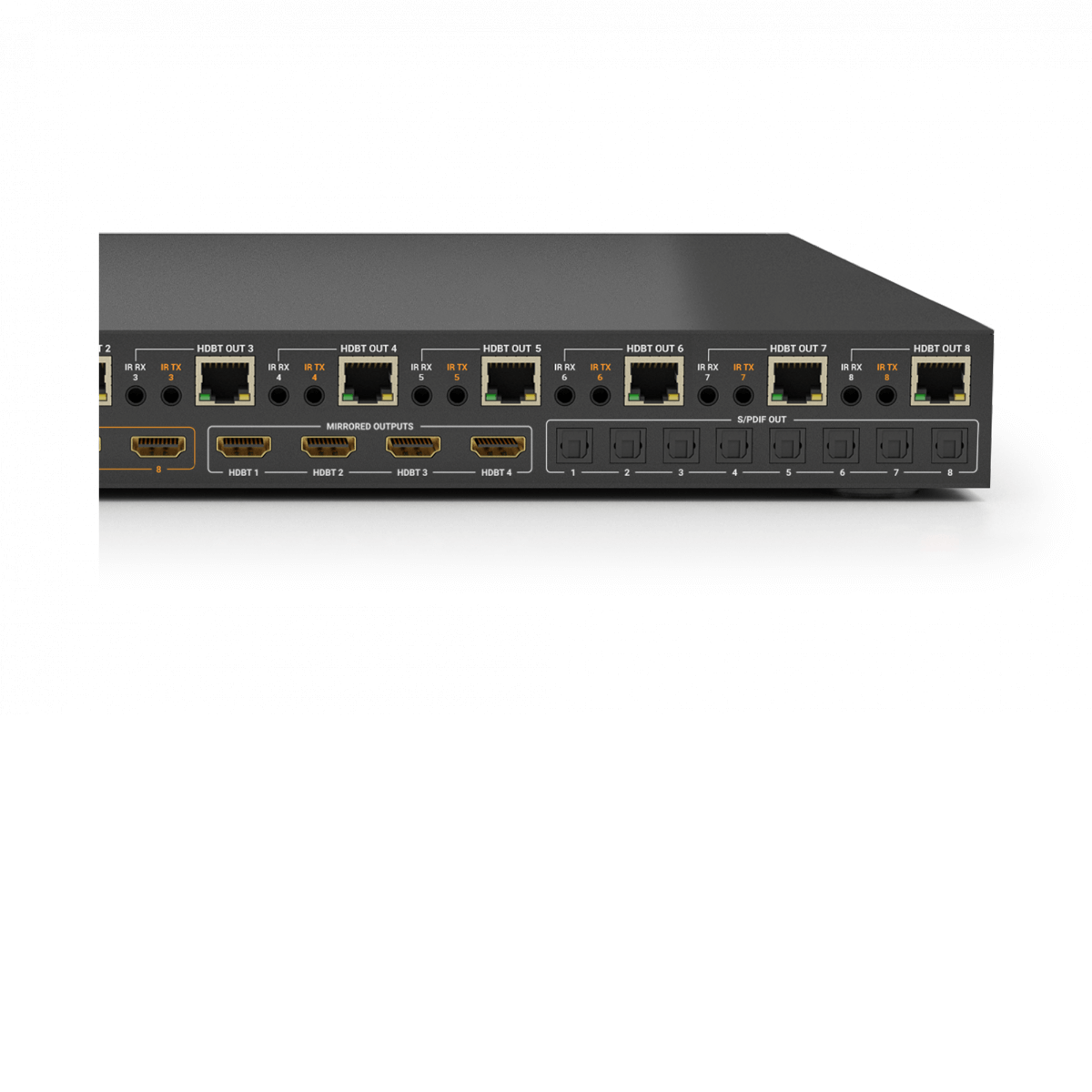

• 4 HDMI outputs mirroring HDBaseT Outputs 1-4 for connecting additional duplicate screens, projectors or AVRs, bringing the total number of connected displays to 12
• HDMI Inputs and HDMI outputs support bandwidths of up to 18Gbps
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices
• 8 Assignable audio outputs allow audio to be independently de-embedded from sources or outputs via Toslink optical
• A/V Mute mode allows the routing of a signal to an output to be deactivated
• API controlled standby mode allows the matrix to enter a low power state when not in use, cutting power consumption by up to 34%
• SmartEDID feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution

Downloads

• WyreStorm MXV-0808-H2A-V3 Specifications (PDF)
• WyreStorm MXV-0808-H2A-V3 Manual (PDF)
