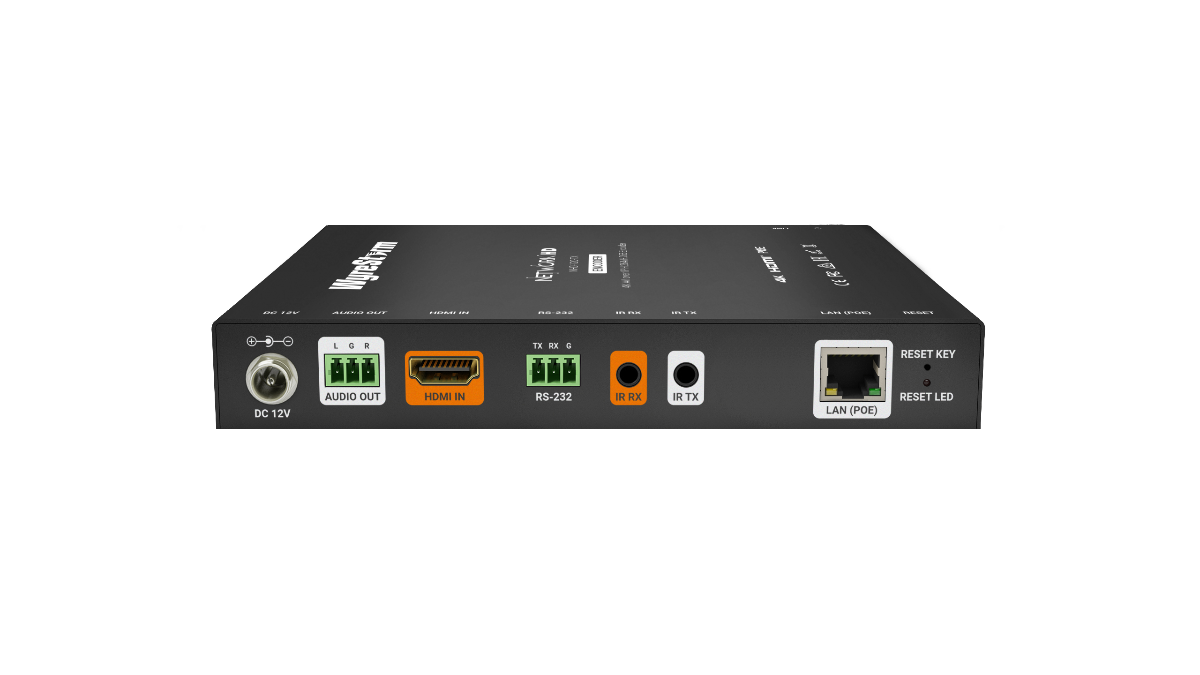

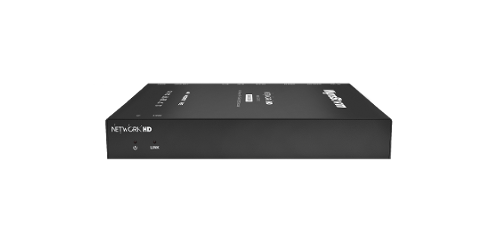

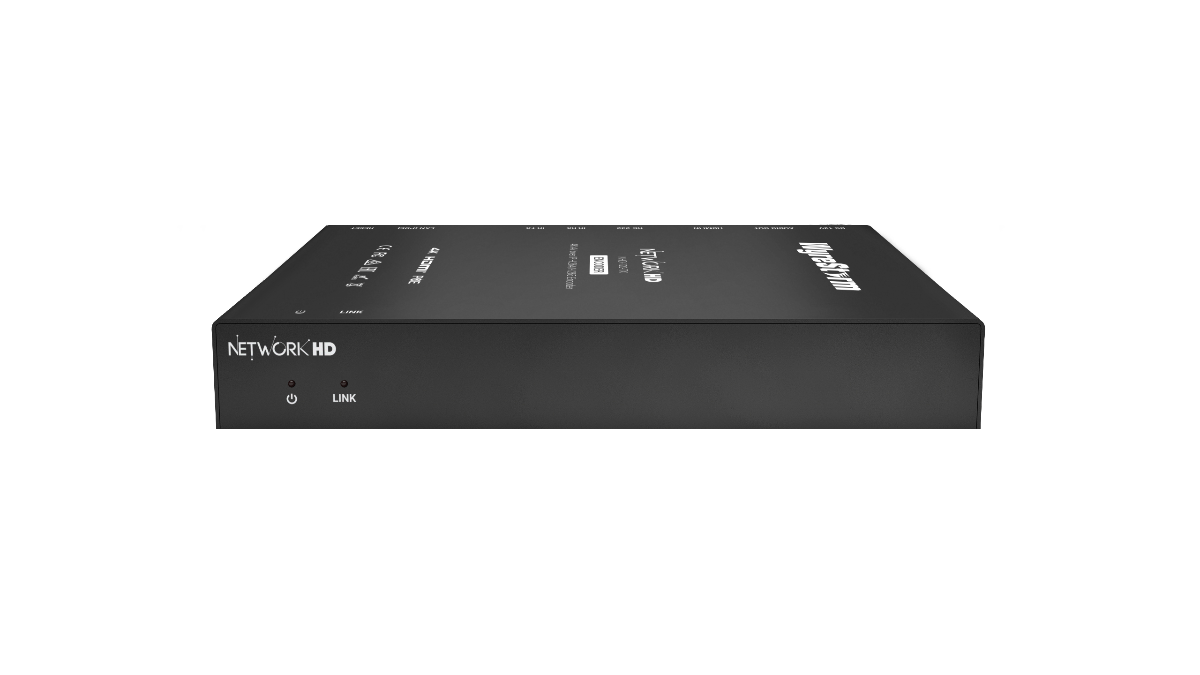

WyreStorm NHD-120-TX
NetworkHD 120 Series 4K30 4:2:0 Encoder

Description

The NetworkHD 120 series takes the award-winning 100 series and elevates to a new level. The 120 series components support both video encoding/decoding. With 4K resolution, video transmissions look better than ever and use up to 6x less bandwidth. AV stream are fully secure over the network using AES 128-bit encryption methods, ensuring any sensitive data cannot be maliciously accessed. Of course, the series would not be complete without retaining the powerful video wall and Multiview processing. The 120 series does one better by adding screen rotation and mosaic video wall ability.

Specifications

• Image scaling use mixed resolution displays throughout an installation
• Seamless video switching no black screens or freeze frames
• Hugely scalable I/O, utilizing multicast technology
• Flexible IP address settings: AutoIP/Static/DHCP
• Customizable CEC, IR or RS-232 control of connected devices
• Up to 16 16 video walls with image scaling, bezel compensation and rotation
• Mosaic video walls for custom screen orientation.
• Custom "No Source" idle image upload for branded down time
• Breakaway, independent routing of all video, audio, IR, and RS-232 streams
• Infrared signal generation via API supports Hex Global Cache format
• Batch firmware update and batch settings functions offers a massive reduction on installation times
• HDCP 2.2 compliant
• IEEE 802.3af PoE compliant PD
• Includes Wall and Rack mounting brackets

Downloads

• WyreStorm NHD-120-TX Specifications (PDF)
