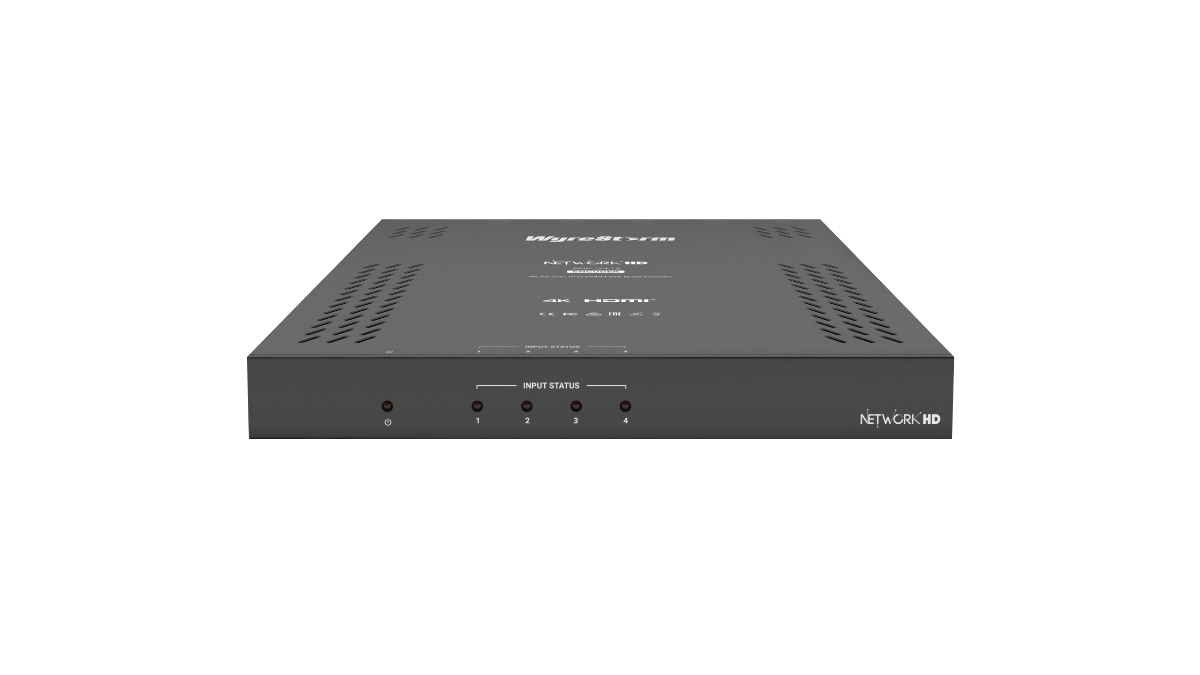

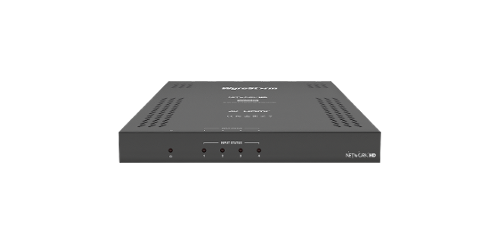

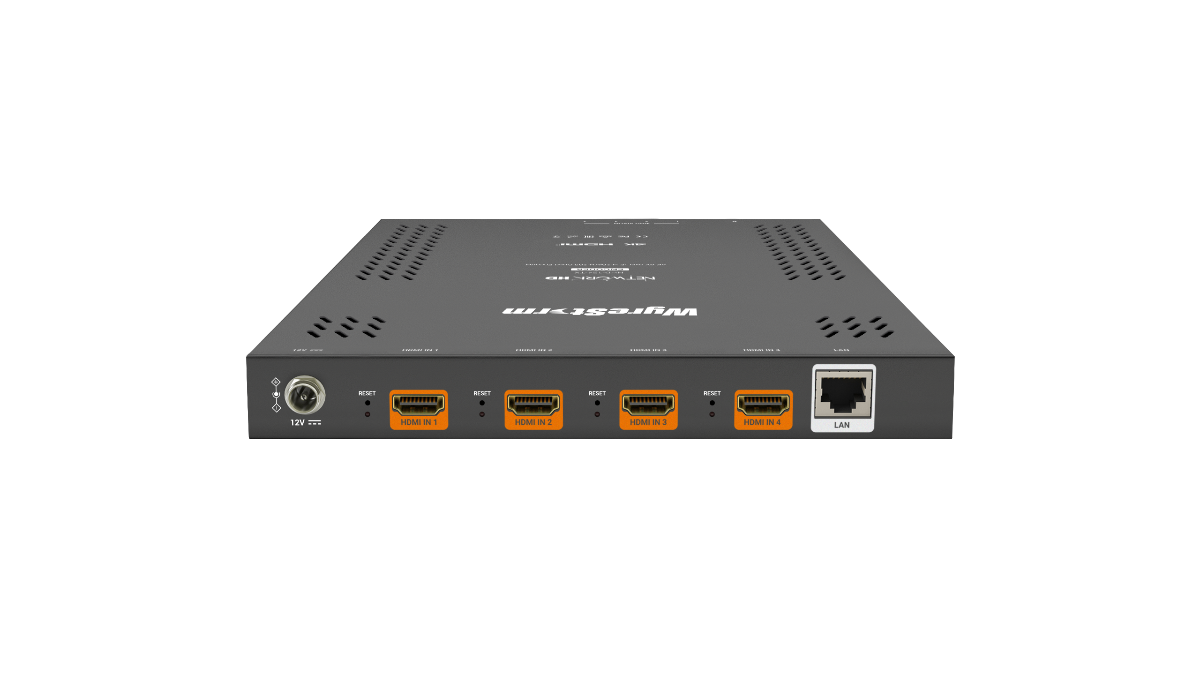

WyreStorm NHD-124-TX
NetworkHD 100 Series 4K AV over IP Quad Encoder
Part #: NHD-124-TX
Satisfaction Guaranteed!
MSRP: $2,518.00
Our Price:
$2,140.00
Top NHD-124-TX Specifications
- Supports up to 4K @ 30Hz video content
- Flexible encoding using low bandwidth technology
- Encoding is configurable between a constant bitrate or variable bitrate
- Low bandwidth or high-quality transmission methods. Low latency ~ 150ms. High-quality ~400ms
"Very nice folks to work with. Quick and good information"
-Jeff A.
-Jeff A.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
The NHD-124-TX is a 4 input to 4 network stream device encoder compatible with the NetworkHD 100 an ultra low bandwidth AV over IP solution for distribution of point-to-point, one-to-many and many-to-many over a managed network. With its standards-based approach to video encoding, fast and simple system configuration and robust feature set, it provides the best value in networked video distribution.
The NHD-124-TX encoder is intended for use with 120 series decoders (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-CTL-PRO system controller complete control integration is simple.
Specifications
- Seamless video switching no black screens or freeze frames
- Support all SD and HD formats including interlaced content
- Compatible with NHD-150-RX Multiview receiver
- Live video preview streams for use with NetworkHD Touch or a custom control UI
- Flexible IP address settings: AutoIP/Static/DHCP
- Batch firmware update and batch settings functions offers a massive reduction on installation time
- Custom EDID management
- HDCP 2.2 compliant
- Supports AES-128 for audio/video decryption
- Supports HTTPS/SSH/LDAP/802.1X
- IEEE 802.3af PoE compliant PD
- In the Box:
- 1x NHD-124-TX Encoder
- 1x 12V DC Power Supply (EU/US/UK/AU)
- 2x Rack Mounting Brackets
