WyreStorm NHD-150-RX
NetworkHD 100 Series 4K60 4:2:0 MultiView Processor
Part #: NHD-150-RX
Satisfaction Guaranteed!
Our Price:
$1,998.00
Top NHD-150-RX Specifications
- Provides 4K @ 60Hz multiview video content
- Flexible encoding using low bandwidth encoding. Encoding is configurable between a constant bitrate or variable bitrate
- Low bandwidth or high-quality transmission methods. Low latency ~ 150ms. High-quality ~400ms
- Analog audio de-embed for easy connection to external audio DSP or amplifier
"Quick and easy checkout and great prices. Will look here again."
Contact a product specialist!
Proudly supporting our customers since 2008
Description

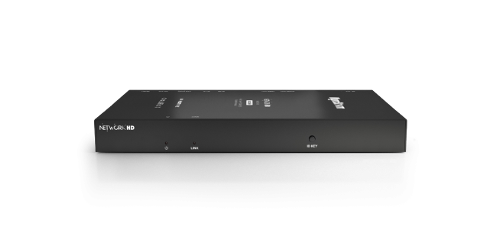

The NHD-150-RX is an enhanced MultiView display decoder compatible with the NetworkHD 120 Series, an ultra-low bandwidth AV over IP solution for distribution of point-to-point, one-to-many and many-to-many over a managed network. The NHD-150-RX decoder is intended for use with 120 Series encoders (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-CTL-PRO system controller complete control integration is simple.
Specifications
- Supports arbitrary display of up to 9 windows (networking incoming video resolution <=1080P) or 8 windows (network incoming video resolution > 1080p)
- Hugely scalable I/O, utilizing multicast technology
- Live video preview streams for use with NetworkHD Touch or a custom control UI
- Flexible IP address settings: AutoIP/Static/DHCP
- Customizable RS-232 and CEC control of connected display
- Infrared signal generation via API supports Hex Global Cache format Batch firmware update and batch settings functions offers a massive reduction on installation times
- Custom EDID management with import/export
- HDCP 2.2 compliant
- Supports AES-128 for audio/video decryption
- Supports HTTPS/SSH/LDAP/802.1X
- IEEE 802.3af PoE compliant PD
- Includes Wall and Rack mounting brackets
- Compatible with NHD-000-RACK4 rack mounting kit
