WyreStorm NHD-230-TX
NetworkHD Standard AV Over IP Encoder
Part #: NHD-230-TX
Satisfaction Guaranteed!
Our Price:
$895.00
Top NHD-230-TX Specifications

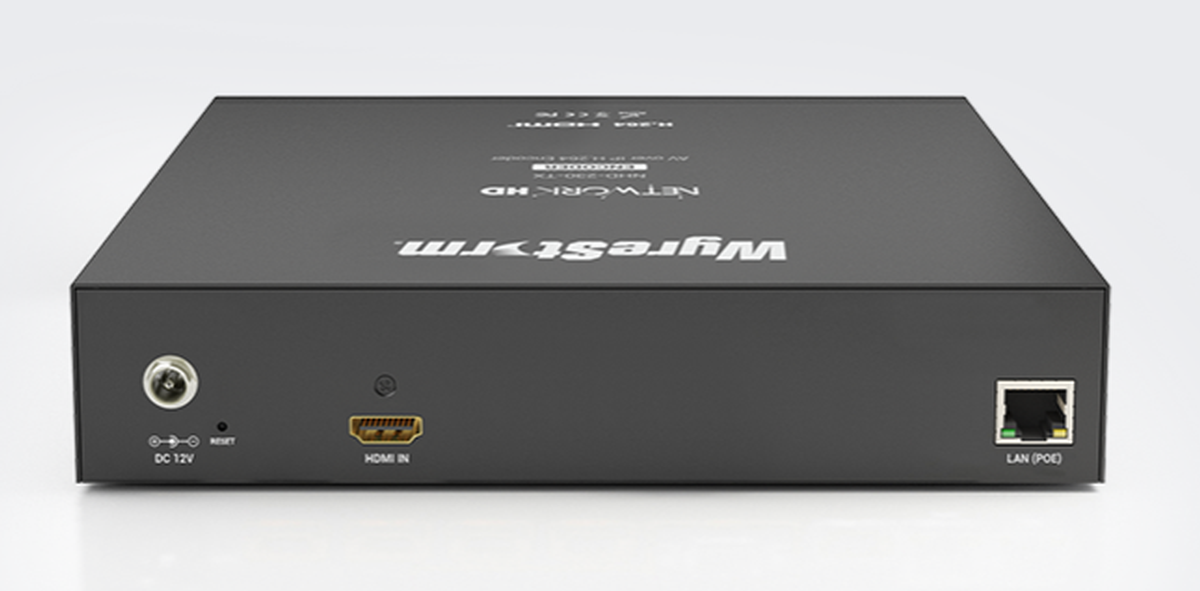

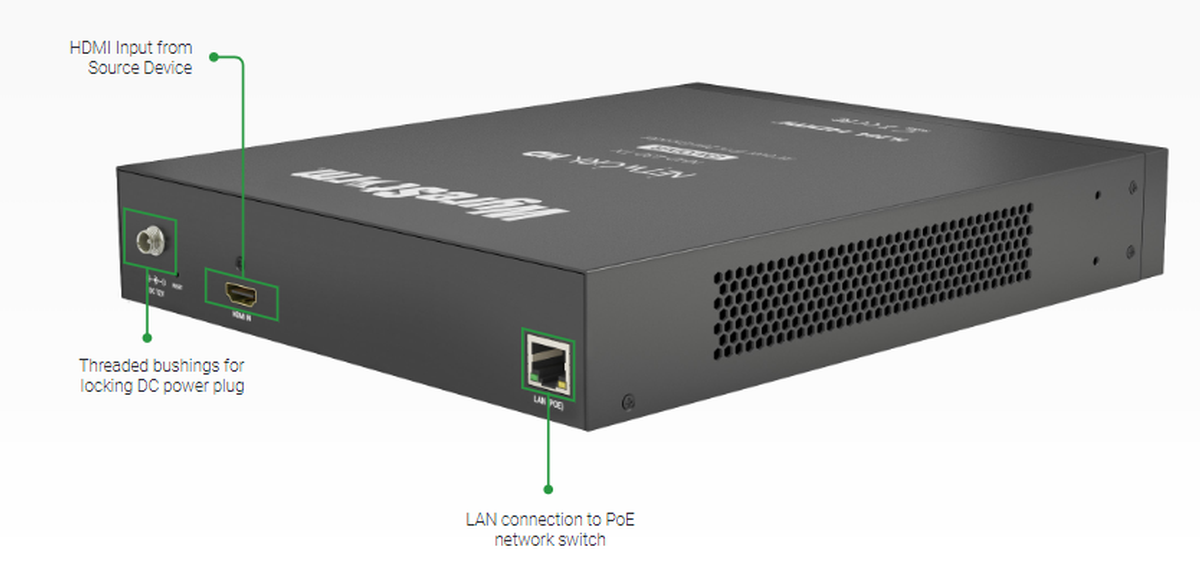

- Inputs: 1x HDMI In 19-pin HDMI type A female
- Outputs: 1x LAN (PoE) 8-pin RJ-45 female, 10/100/1000Base-T Ethernet port LAN (POE)
- Audio Formats In: RAW (PCM 48KHz) - Out: LPCM (1.6Mb/s)
- AAC (32~240Kbps)
"Quick and easy to find what I was looking for."
-Brandon K.
-Brandon K.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
Wyrestorm's NHD-230-TX is a range extender providing AV over IP solutions to PCs, IPTVs, set-top boxes, tablets, and smartphones with video decoding capabilities. This encoder is for use with support for up to 10 unicast or multicast streams. The NHD-230-TX supports open decoding of HD video streams on any compatible decoding software.
This Wyrestorm encoder is also compatible with unmanaged network topologies, making this a flexible solution across a variety of network setups. With regards to compatibility, this NHD-230-TX works with many third-party decoding software and works well with a wide variety of viewing options.
The NHD-230-TX is ideal for the following environments:
- Education
- Hospitality
- Government
- Corporate
- Residential
Specifications
- Output Video Encoding: H.264/MPEG-4 AVC
- Video Resolutions (Max): HDMI 1920x1200 @60Hz 8bit (15m/50ft) / 1920x1080p @60Hz 8bit (7m/23ft) Using Cat6 / 1920x1080p @60Hz 8bit (100m/328ft)
- HDMI: HDMI 1.4 | HDCP 1.4
- Ethernet: 1x 8-pin RJ-45 female | 10/100/1000Base-T | PoE
- Power Supply: 12V DC 1A
- PoE: IEEE 802.3af | 12V 1A 12.95W
- Max Power Consumption: 10.5W (DC adapter)
- Rack Units/Wall Box: 1U
- Height: 1.72in
- Width: 8.67in
- Depth: 7.03in
- Weight: 3lbs
- Warranty: 5 years
