WyreStorm RX-70-4K
HDBaseT 4K Receiver with 5Play, HDCP 2.2 - 328'
- HDBaseT receiver
- 5Play sends: Video, HD audio, RS-232, IR, Ethernet, and power
- Distance: 4K30 4:2:2 up to 230' True Color, 1080P up to 328' 48bit Deep Color
- Receives power from transmitter so no power supply is required
Description

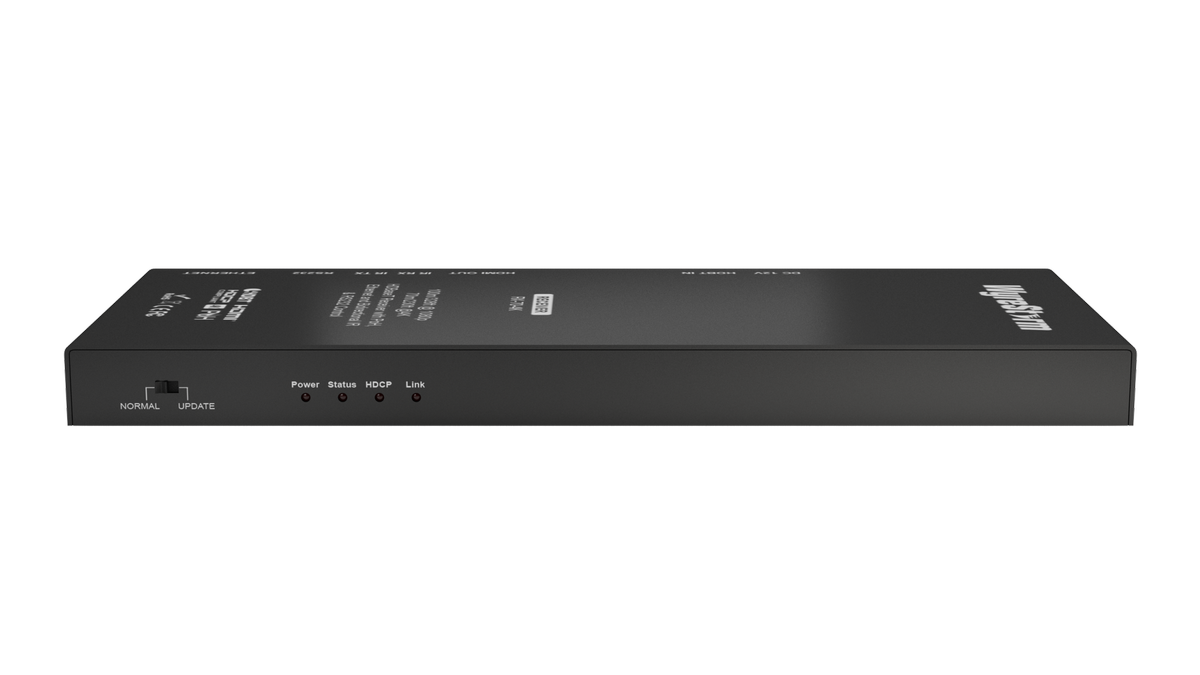

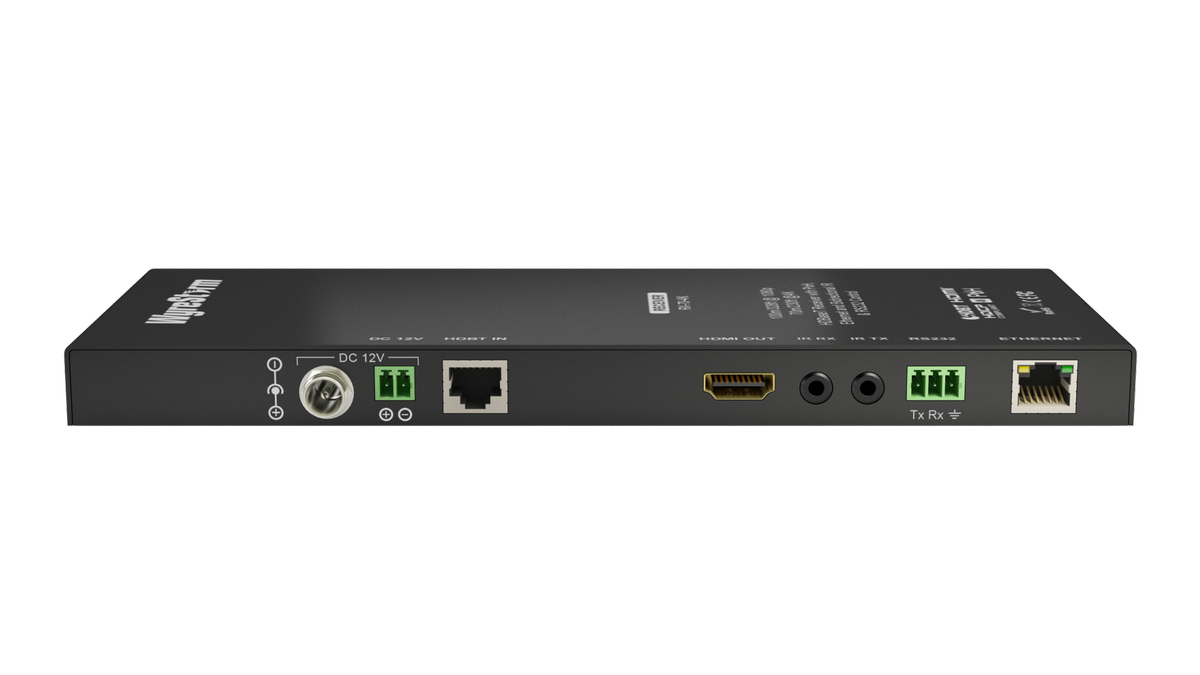

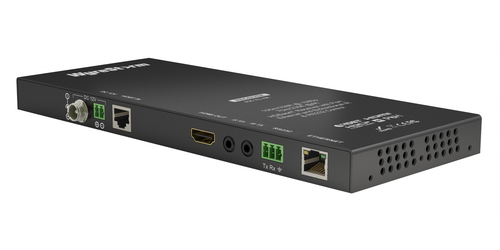

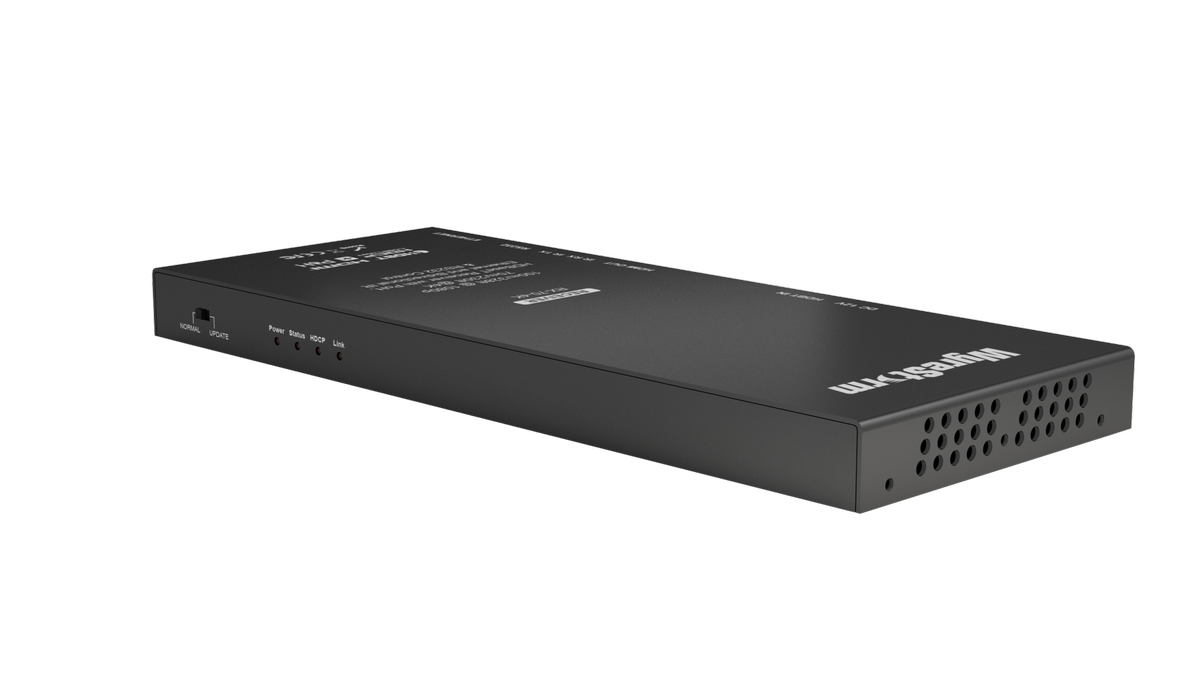

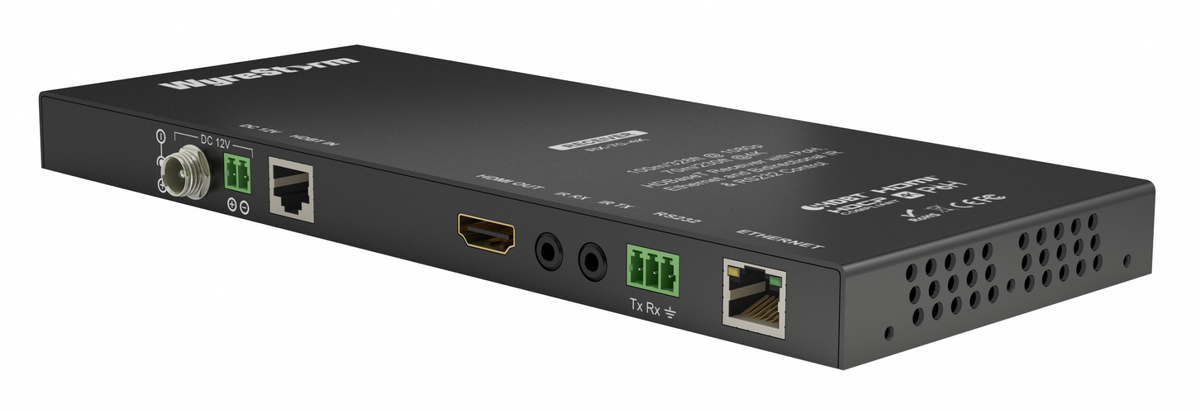

The WyreStorm RX-70-4K is an HDBaseT receiver that outputs HDMI. Featuring 5Play it not only receives video but HD audio, bi-directional IR, RS-232 control, Ethernet, and power. Since it can receive power the RX-70-4K requires no local power supply. It can receive up to 4K30 4:2:2 resolutions from up to 230' away, and 1080P up to 328'. The unit is very thin with a height of only .67" making it easy to fit behind a TV or any tight location. The front has LED status indicators and includes mounting brackets for an easy installation and set up.
The WyreStorm RX-70-4K supports 3D pass through, is HDCP 2.2 compliant, and is cascadable up to 7 times. This receiver has a ton of features and will be ready for anything you have now or in the future, it is a perfect compliment to your WyreStorm matrix switcher.
Specifications
- HDCP 2.2 compliant
- HDMI 1.4v
- 3D compatible
- CEC pass through
- Cascadable up to 7 times
- One-way PoH (Power over HDBaseT)
- Multichannel audio supports 7.1 DTS Master HD and Dolby True HD
- Includes: Receiver, mounting brackets, IR emitter and receiver, 2 and 3-pin phoenix male connectors
- Audio Format Supported: Multichannel digital audio supporting 7.1 DTS Master HD and Dolby True HD
- Dimensions: 6.7" x 0.71" x 3.7"
- Warranty: 5 years
