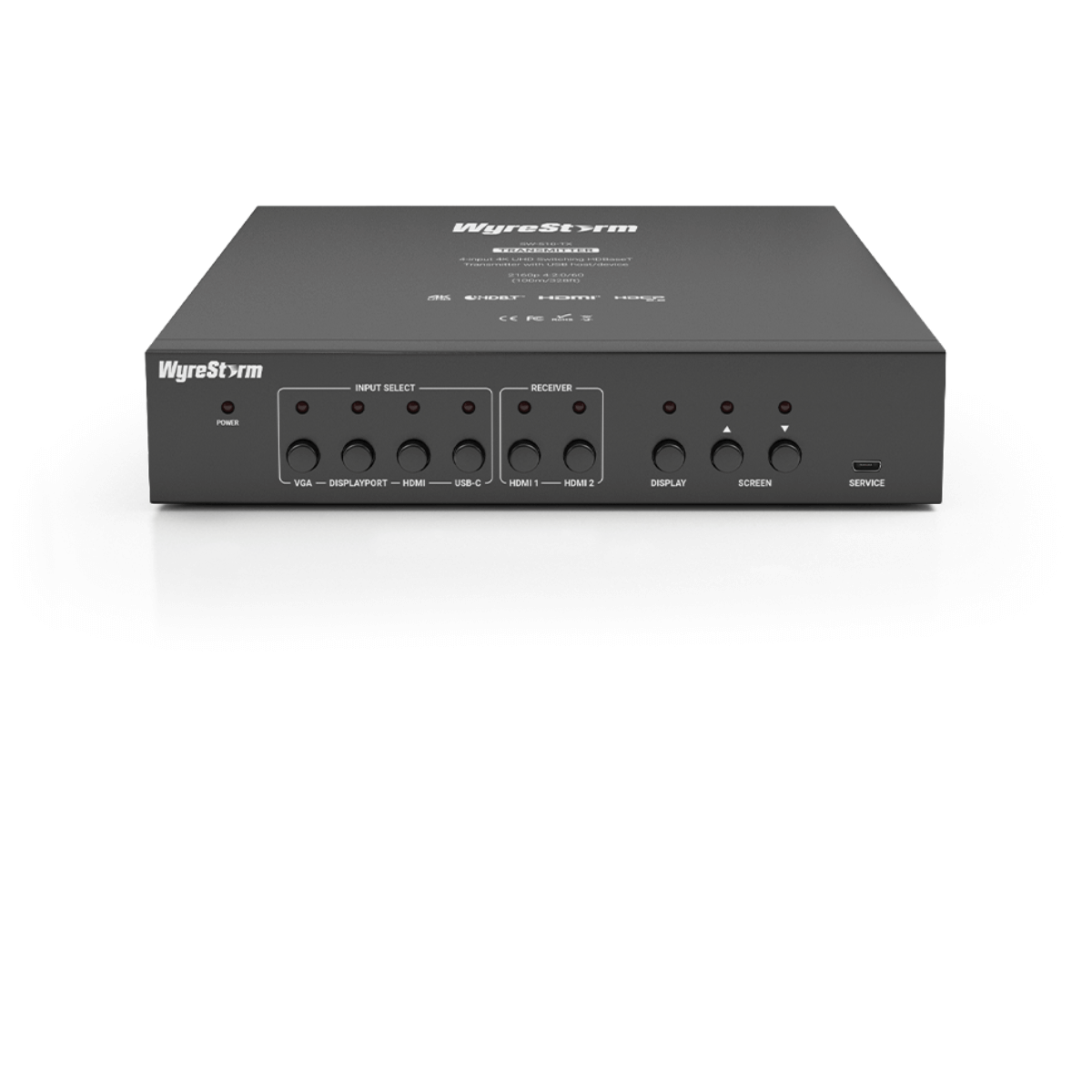

WyreStorm SW-510-TX
4-input 4K UHD Switching HDBaseT Transmitter with USB
- Inputs: VGA, DisplayPort, HDMI, Audio
- Outputs: HDMI, HDBaseT
- Resolutions: Up to 4K/60
- Range: 1080p at 492 over Cat6a or better / 4K 328' over Cat6a or better
-Brandon K.
Description
The Wyrestorm SW-510-TX brings features of the H2 and PRO products into one powerful meeting space solution. Supporting USB routing to both HDMI and DP inputs, this extender accepts HDMI, DisplayPort and USB3.1c sources with a VGA +audio input for legacy devices. The SW-510-TX will support 4K content and even HDCP2.2 protected content.
When the meeting room is in an idle state, the receiver can switch to either of its HDMI inputs which can be used for anything from a signage player to a satellite receiver, keeping the screen active and displaying content. These inputs can also be triggered manually at any time should a Chromecast or AppleTV be fitted for screen mirroring.
HDBaseT 2.0 affords the addition of USB 2.0 pass-through, offering not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities. Furthermore, allowing 2 host devices to be connected, the extender can route USB traffic depending on the currently selected source at the receiver.
Primary Benefits:
- Professional switching transmitter for education or corporate meeting rooms
- Automatic or manual switching between HDMI, VGA, DisplayPort and USB-C inputs
- Bidirectional USB2.0 for connection of webcams, smart touchscreens and microphones
- USB-C input supports Alt-mode functionality for AV and USB device connection through a single cable
- Automatic or manual CEC triggering for compatible connected screens or projectors
- Supports source content up to 4K/60 4:2:0 with HDCP 2.2

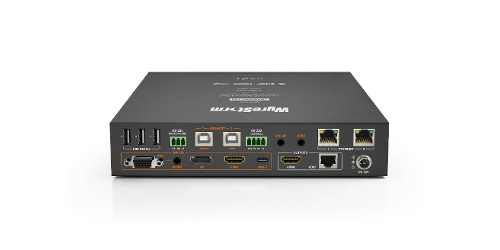

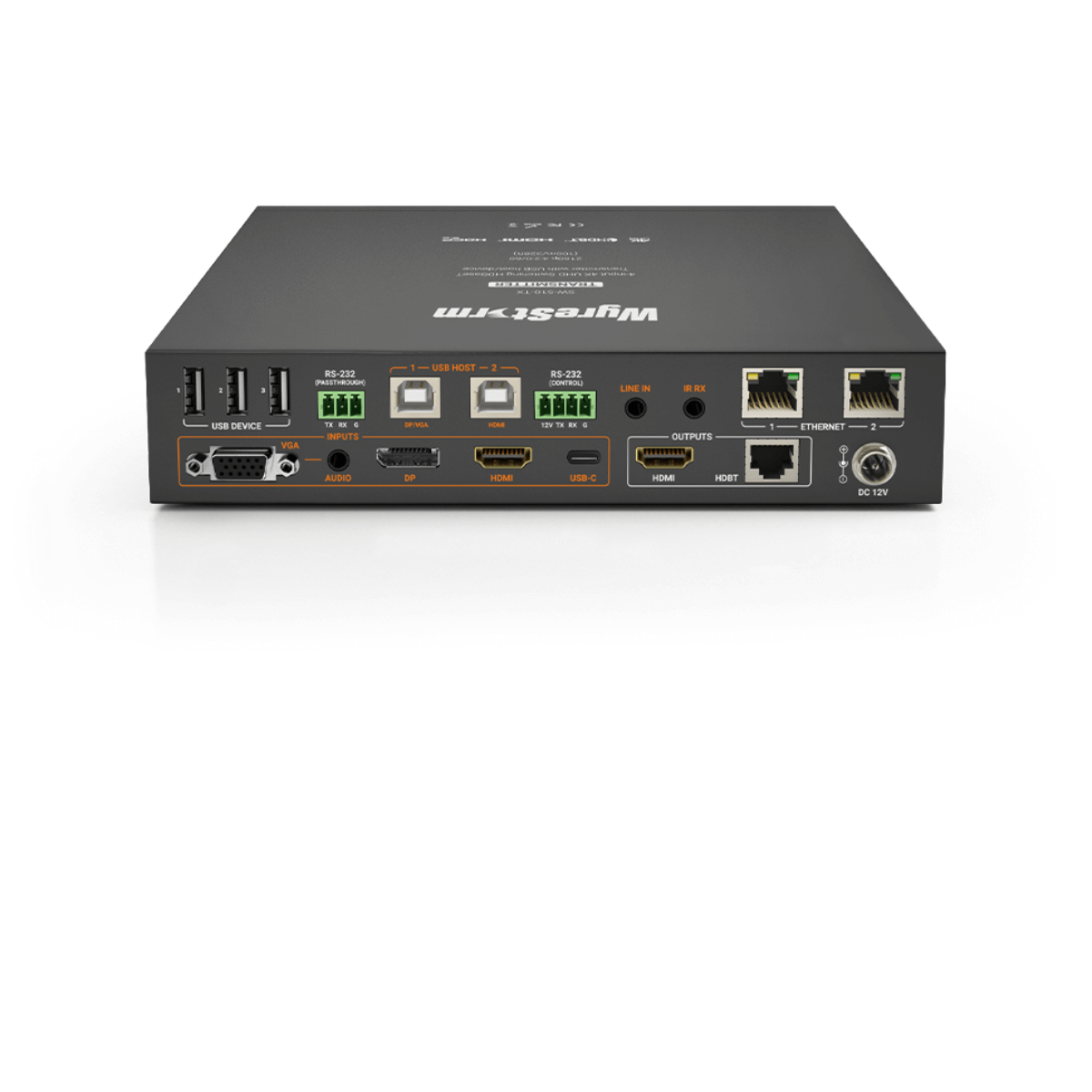

Specifications
- Output Video Encoding: HDBaseT Class C
- Encoding Data Rate: 9.2Gbps
- End to End Latency: 10 s (micro seconds)
- Audio Formats: 2ch Analog/PCM | Multichannel: LPCM
- HDMI: HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
- HDBaseT: HDMI | HDCP 2.2 | EDID | CEC | 2ch audio | USB
- RS-232: 1x RS-232 (Control): 3-pin Phoenix | 1x RS-232 (Passthrough): 3-pin Phoenix
- Ethernet: 2x 8-pin RJ-45 female | Bidirectional over HDBaseT
- IR: 1x IR TX: 3.5mm (1/8in) TS Mono
- USB: 1x USB-C: USB 3.1 Audio/Video, 2x USB Host: USB-B | 3x USB Device: USB-A
