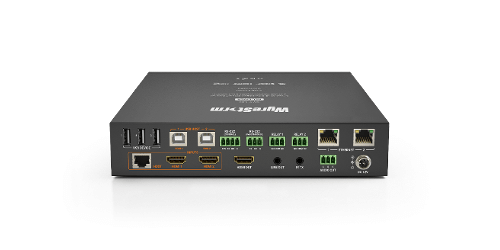

WyreStorm SW-515-RX
3-input 4K UHD Switching HDBaseT Receiver with USB Host/Device
- HDBaseT receiver with switching inputs for education or corporate meeting rooms
- Automatic or manual switching between a remote HDBaseT source or 2 local HDMI's
- Bidirectional USB2.0 for connection of webcams, smart touchscreens and microphones
- Automatic or manual CEC triggering for compatible connected screens or projectors
Description
The Wyrestorm SW-515-RX is a powerful, next generation HDBaseT receiver compatible with WyreStorm's presentation switcher platform, perfect for corporate meeting and classroom environments. Automatically switches between a remote source sent over HDBaseT and 2 local HDMI sources, all with USB device extension. CEC triggering and 3rd party device relays further contribute to a superior and autonomous presentation experience.
HDBaseT2.0 affords the addition of USB 2.0 pass-through, offering not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities. Furthermore, allowing 2 host devices to be connected, the extender can route USB traffic depending on the currently selected source at the receiver.
Specifications
- Condition based relays triggered on source presence
- Supports source content up to 4K/60 4:2:0 with HDCP 2.2
- Inputs: 2x HDMI In: 19-pin type A, 1x HDBT In: 8-pin RJ-45 Female
- Outputs: 1x HDMI Out: 19-pin type A, 1x Audio Out: 3-pin Pheonix, 1x Line Out: 3.5mm (1/8in) TRS Stereo
- Resolutions: Up to 4K
- 4K Resolution Range: HDMI 23' / Cat6a or better: 328'
