WyreStorm TX-H2X-OM3
HDBaseT Input and Output Card, 4K Signals 230 Feet
Part #: TX-H2X-OM3
Satisfaction Guaranteed!
Our Price:
$1,133.00
Top TX-H2X-OM3 Specifications
- Audio and Video
- Inputs: 1x HDMI In19-pin type A / 1x S/PDIF In Coaxial Digital / 1x HDBaseT 8-pin RJ-45 female
- Outputs: 1x HDBaseT 8-pin RJ-45 female / 1x S/PDIF Out Coaxial Digital / 1x Audio Out 3pin Phoenix Connector
- Outputs: Video Encoding HDBaseT Class A
"Customer Service was knowledgeable and answered all questions quickly. Great Service!"
-Gregory W.
-Gregory W.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

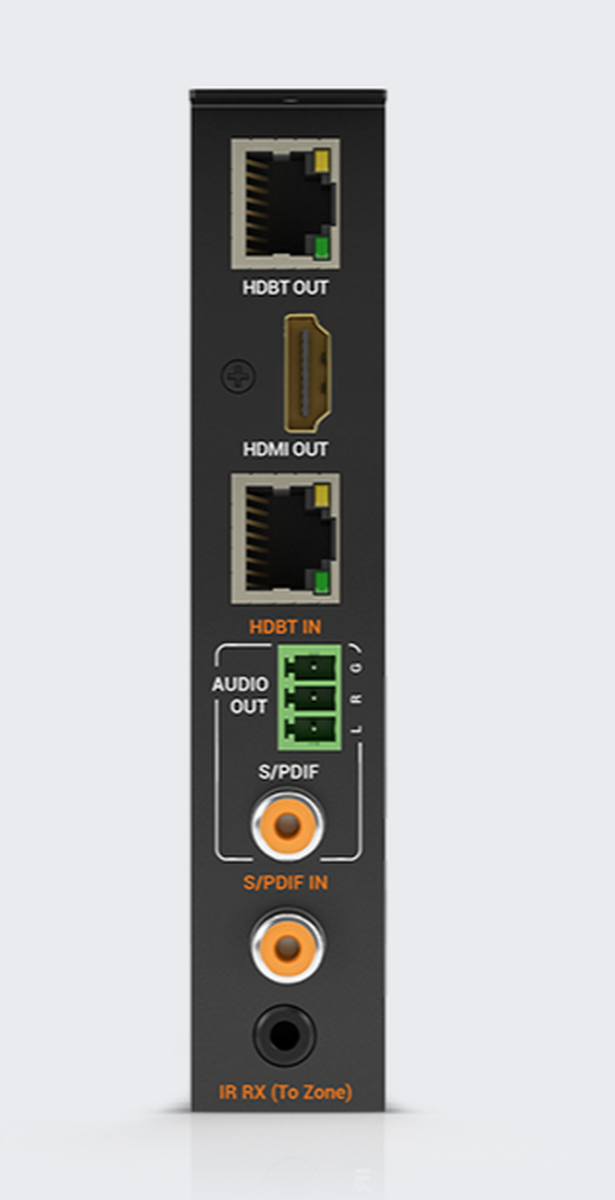

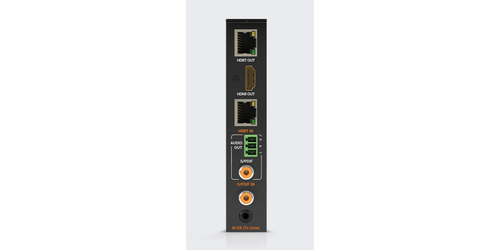

Wyrestorm's TX-H2X-HDBT input and output card helps users decentralize sources connected to the H2X matrix platforms. The TX-H2X-HDBT send 4K UHD transmissions up to 230 feet, allowing source devices to be kept in-place while making them part of the main distribution system.

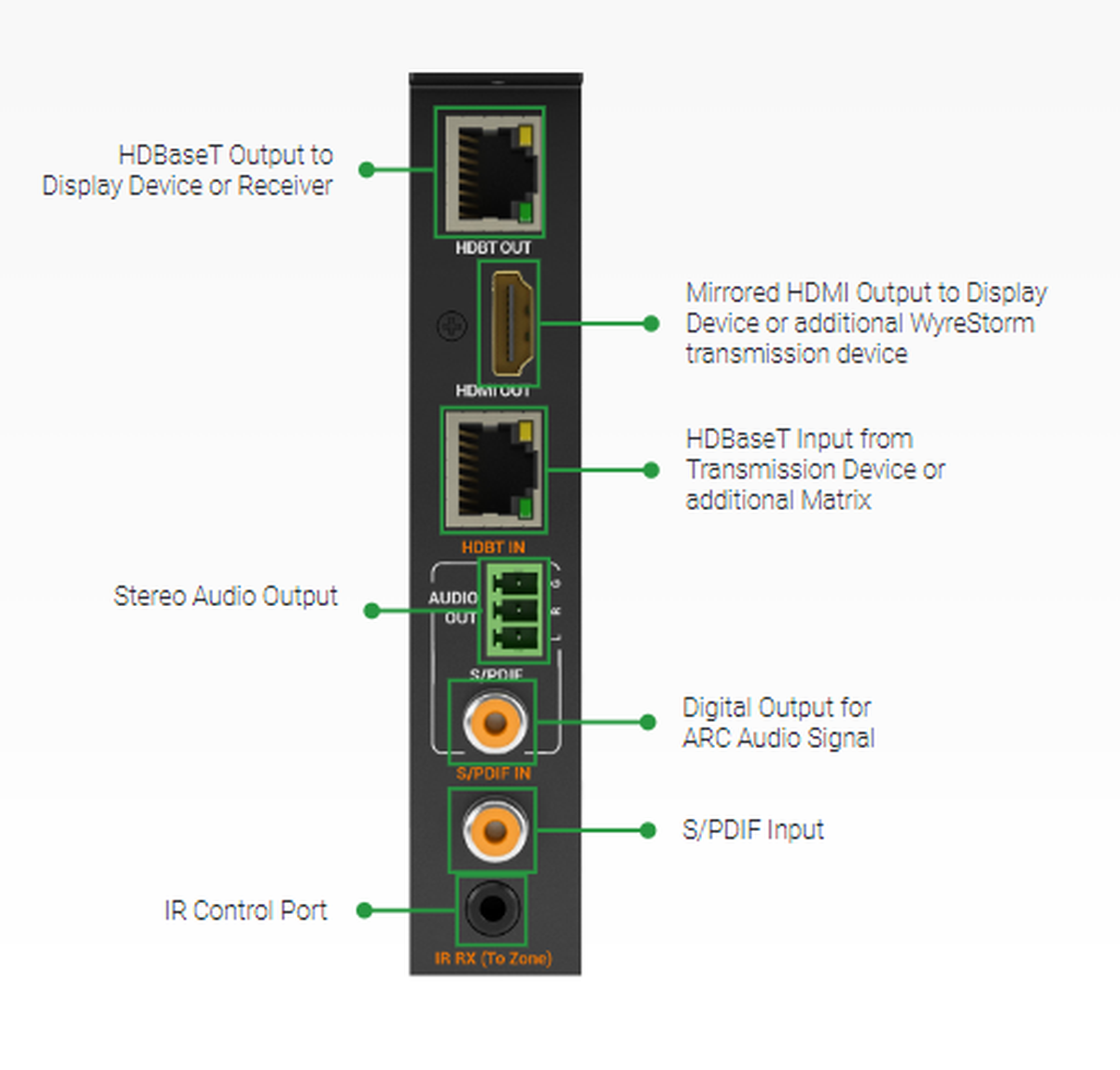

- HDBT Input - Enables the direct connection of a remote source to the matrix via an HDBaseT Transmitter only at the source location, rather than an HDBaseT extender set previously required to distribute a remote signal over distance to a matrix. The matrix will then route the remote source signal as it does with any locally connected source.
- HDBaseT Output - Transmitting Class A HDBaseT which includes video, audio, control and power up to 70m/230ft of 4K and 100m/328ft of 1080p
- HDMI Output - Mirrored to HDBaseT to allow additional connection of a local display device, AVR or to extend with a hybrid active optical HDMI cable (HAOC)
- Stereo Audio Output - Offering stereo audio breakout of a zone with a 3-pin phoenix connector for analog audio
- S/PDIF Output - supporting 5.1 audio content de-embedded from sources or ARC from connected zones
- S/PDIF Audio Input - Another way to inject digital audio to take advantage of the H2X platform’s powerful audio matrix and DSP
- IR RX - Allows control signals to be sent to the sink device
Specifications
- Encoding Data Rate: 9.2Gbps
- End to End Latency: 10 s (micro seconds) Audio Formats: 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
- Video Resolutions (Max) Video Resolutions: 4096x2160p @60Hz 8bit 4:4:4
- Supported Standards
- DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
- Maximum Pixel Clock: HDMI: 600mHz | HDBaseT: 297MHz
- Communication and Control
- HDMI: HDCP 2.2 | DVI-D supported with adapter (not included)
- HDBaseT: HDMI | HDCP 2.2 | 1-way PoH to Receiver | IR RX to Receiver
- IR: 1x IR RX 3.5mm (1/8in) TRS Stereo | To Receiver over HDBaseT
- RS-232: Matrix Control | Bidirectional over HDBaseT | Firmware Updates
- Ethernet: From Matrix - No Connection on card | Bidirectional over HDBaseT
- ARC (Audio Return Channel): Returns audio from displays built-in applications via ARC HDMI Input over HDBaseT (Requires ARC or SCL Receiver)
- Power
- Power Supply: Internal to Matrix
- Max Power Consumption: Matrix Dependent
- PoH: 48V 15.4W
- Regulatory Safety and Emission: Matrix Dependent
