Yamaha RM-CG
Ceiling Array Microphone for ADECIA Conferencing Systems

Description

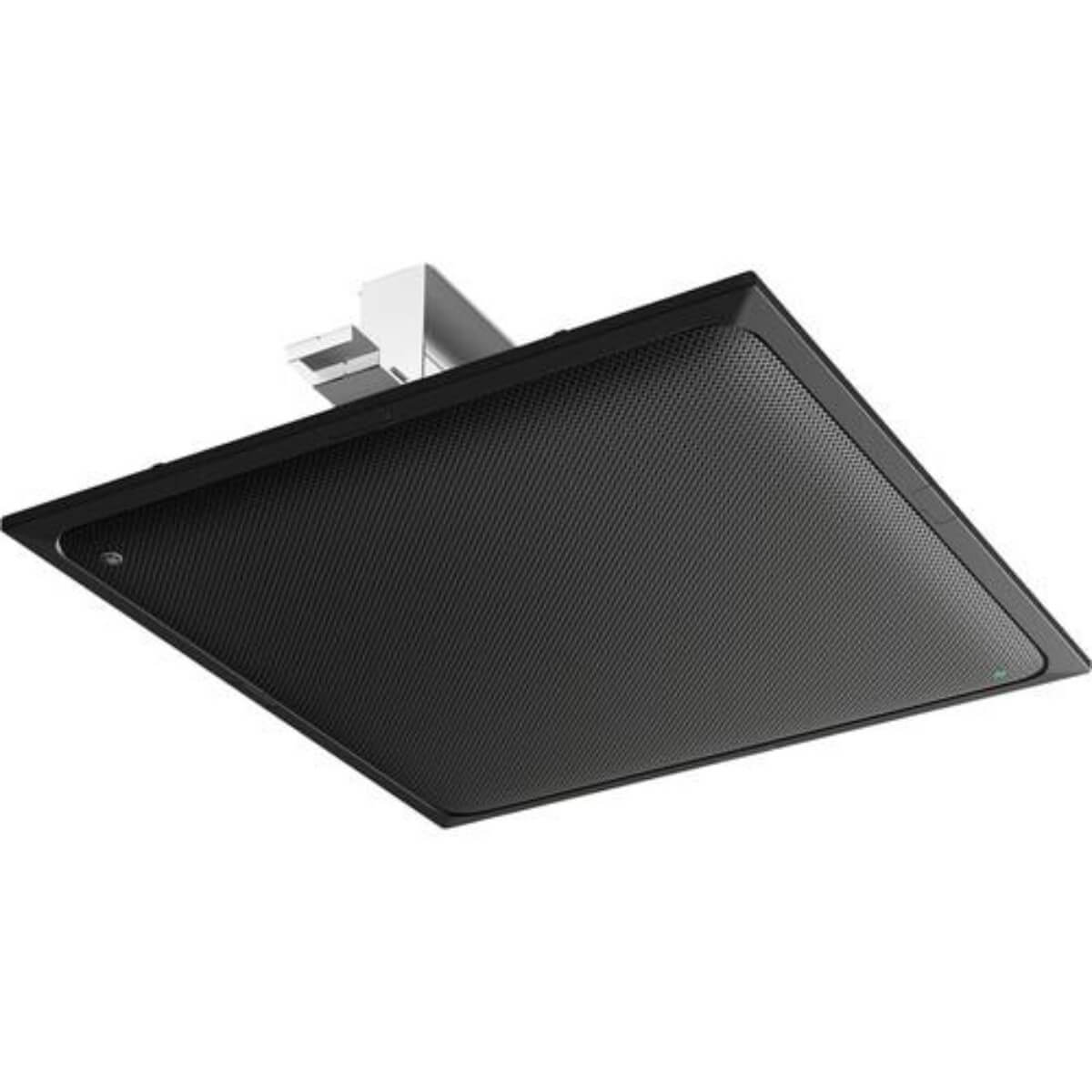

The Adecia line Yamaha RM-CG Ceiling Array Microphone is an elegant, beamforming microphone array with a form factor that easily mounts within existing tiles in the ceiling of your conference room and blends in with most of today's drop ceilings.

The RM-CG array microphone features four auto-tracking beams designed to capture the simultaneous speech of multiple speakers whether the participants are seated, standing, or moving across the room and no matter how challenging the acoustics of your room. It delivers crystal-clear, worry-free audio for productive remote collaboration and distance learning in small- to medium-sized training rooms, conference rooms, classrooms, multipurpose rooms, or the boardroom.

Product Highlights:

• Low latency and signal issues, often found in wireless connectivity, are no longer a problem with wired connectivity
• Handy in distant communication
• Utilizes innovative Yamaha technologies like Adaptive Echo Canceller, Automatic Gain Control, Noise Reduction, and Dereverberation

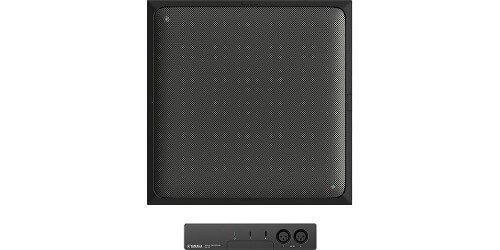

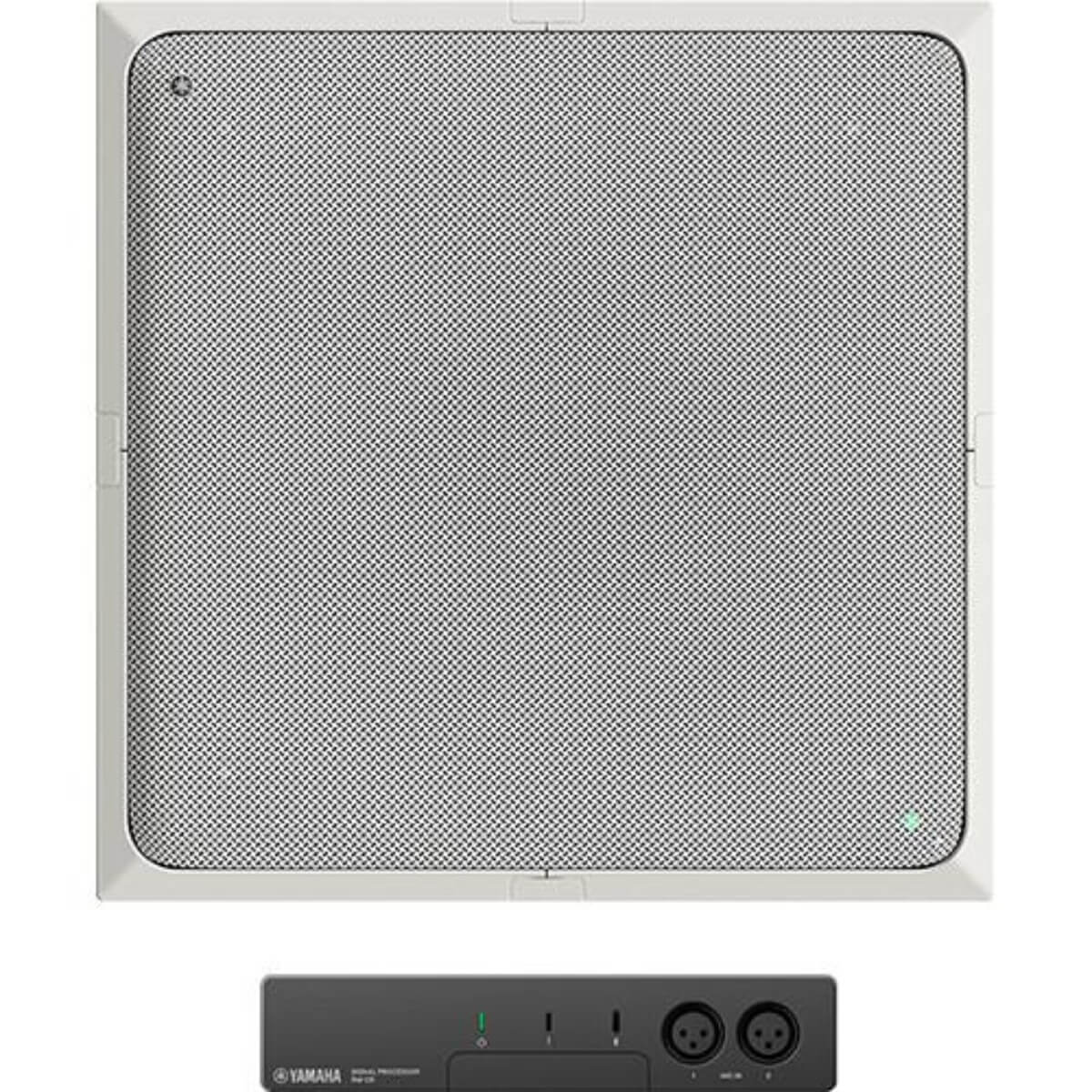

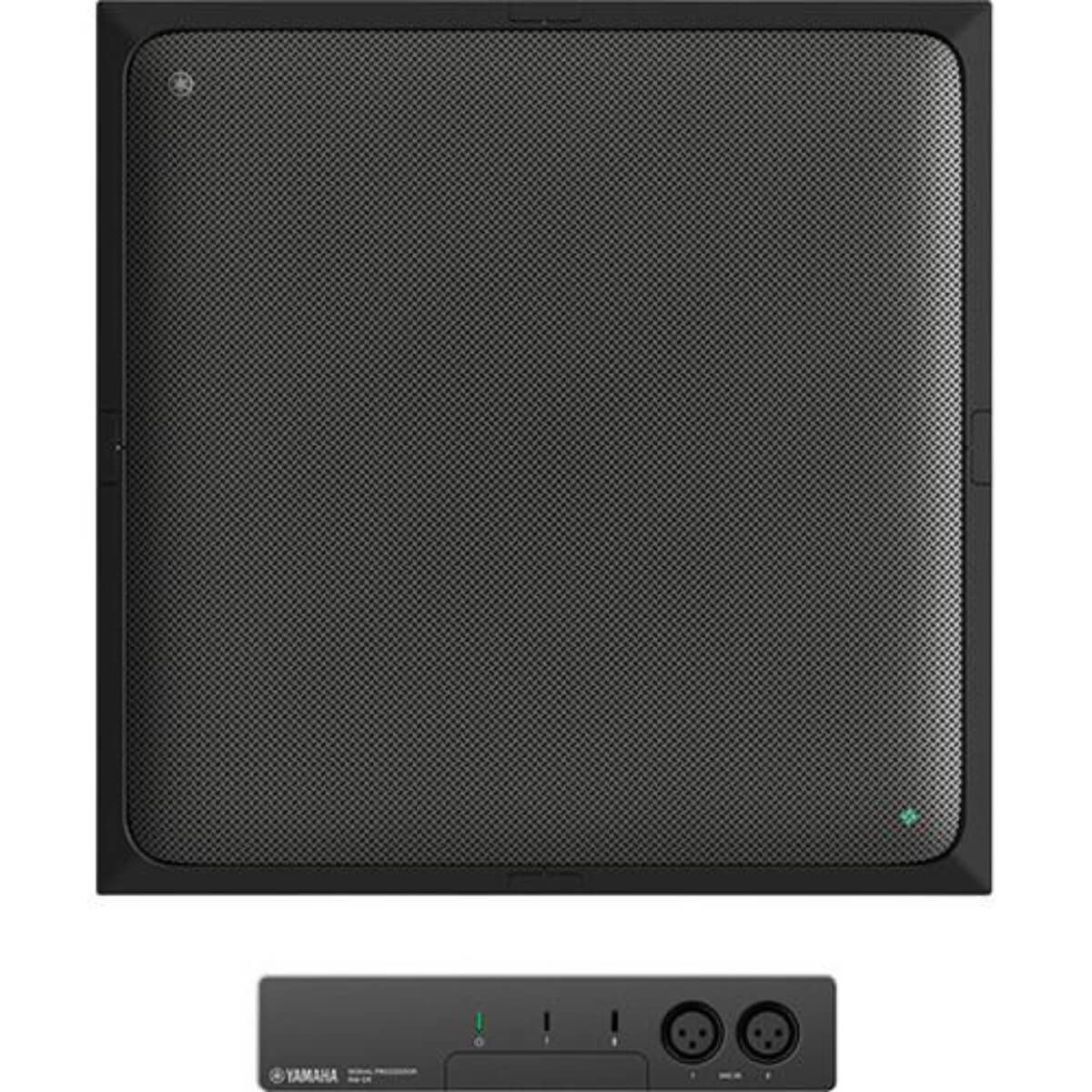

• Automatic detection and configuration with Remote Conference Processor RM-CR
• Standard network audio support for “Dante”
• Utilizes one PoE+ network cable connection avoiding troublesome wiring and enabling audio control via Dante

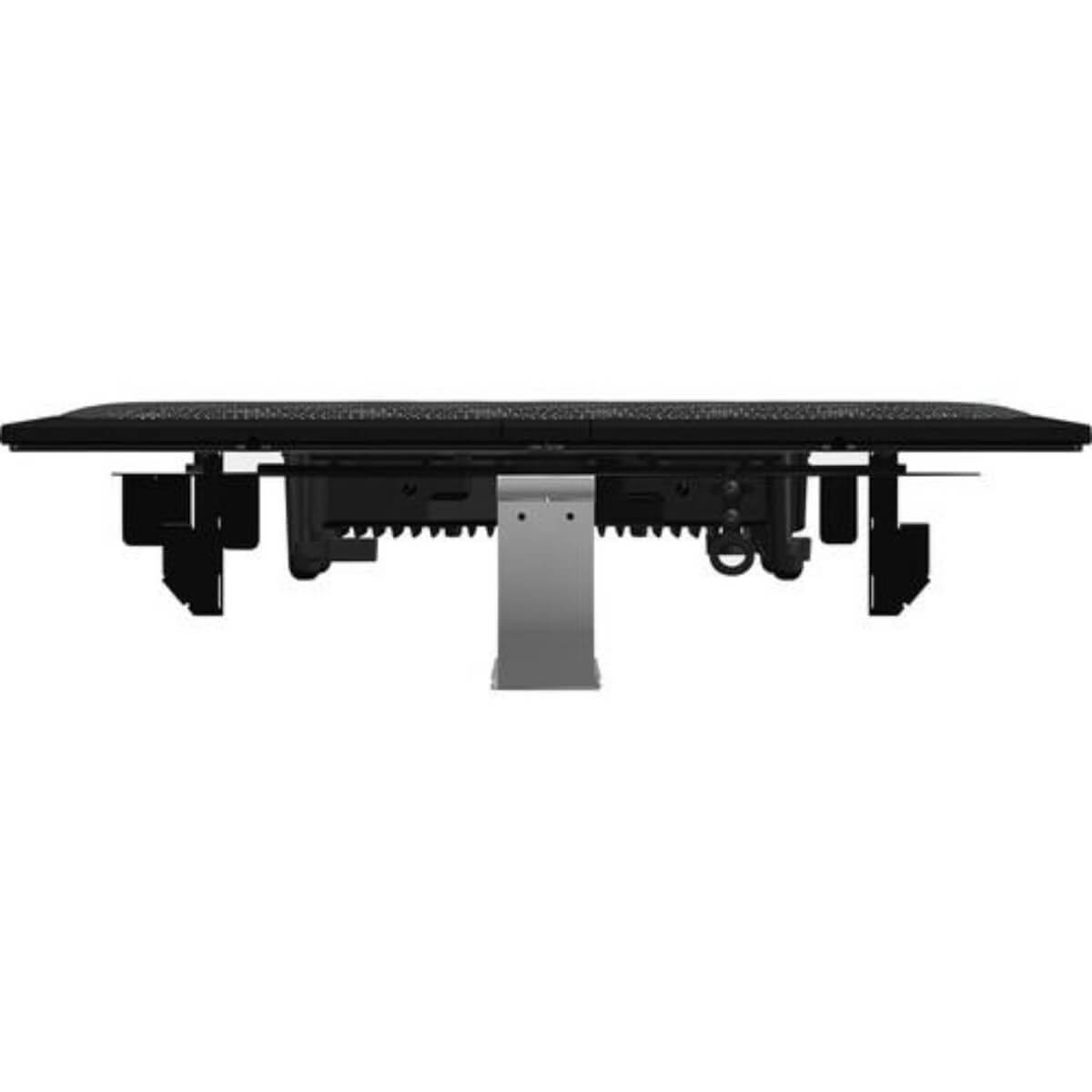

• Supports 3 types of mounting methods for use with a variety of ceiling conditions

Specifications

• Latency: 56 ms (Except Dante Connection)
• Frequency Response: 160 Hz to 16 kHz (-10 dB)
• SPL Level: 117.8 dB Maximum Input Level of SPL (0 dBFS)
• Self Noise: -0.8 dBA
• SNR: 94.8 dB (Ref. 94 dB SPL at 1 kHz)
• Sensitivity: -23.8 dB/Pa
• Dynamic Range: 118.6 dB
• Signal Processing: Multi-Beam Tracking, Acoustic Echo Canceller, Noise Reduction, Dereverberation, Auto Mixer, Auto-Gain Control, User Program EQ, Output Gain

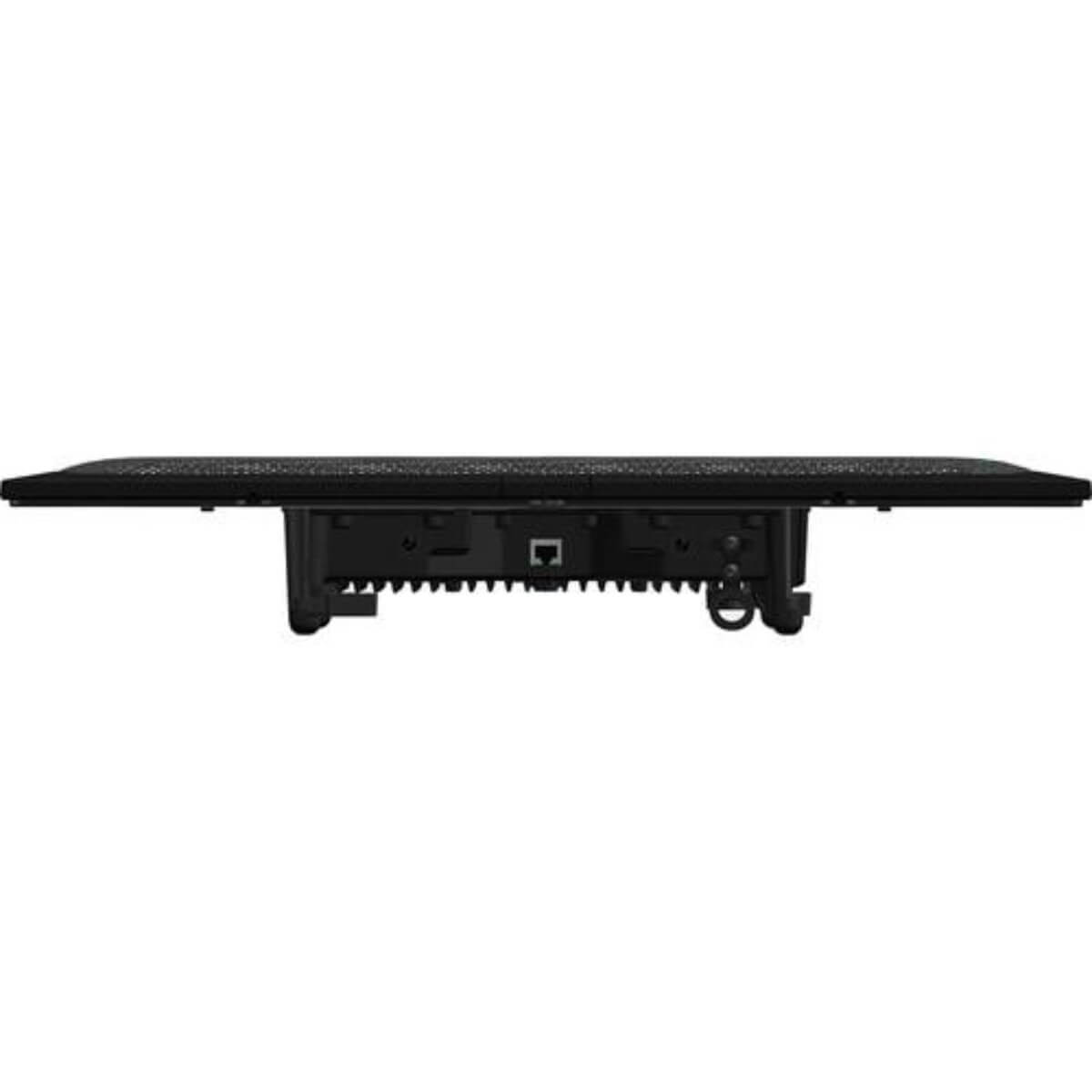

• Connector: RJ45
• Ethernet: Dante Audio/Dante Control, Remote Control, WebUI, PoE+
• Cable Requirements: Cat 5e or higher (STP Recommended)
• Indicator: Front Indicator (Mute/Unmute & Status) Network Port Indicator
• Power: PoE (IEEE 802.3af), 48 VDC

Downloads

• Yamaha RM-CG Specifications (PDF)
